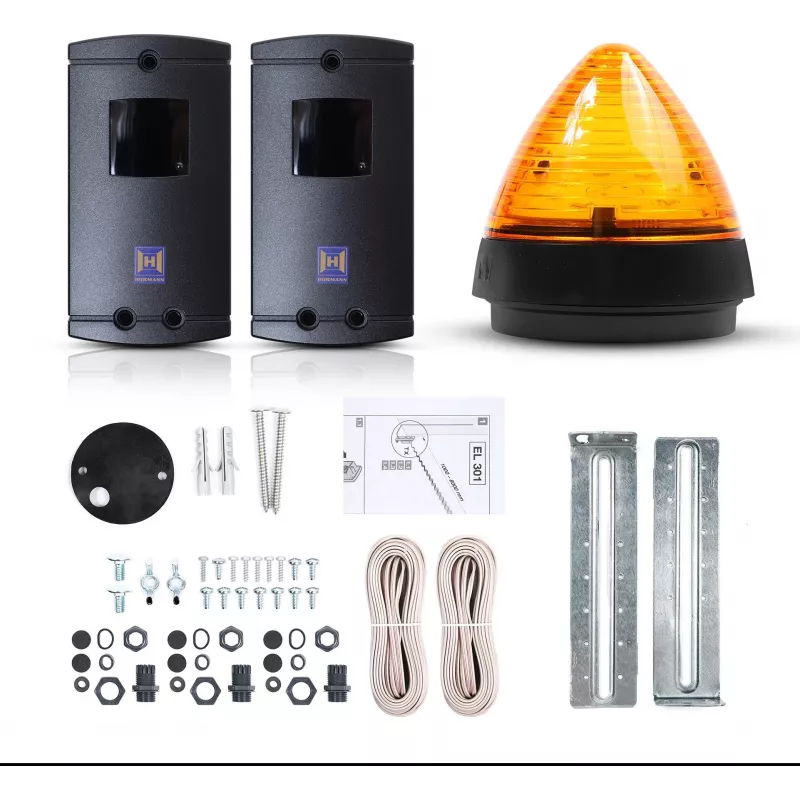

HORMANN SK Kit Lineamatic, Portronic D 5000 – Sommer EL-301 Photocell Pair & SLK 24V LED Warning Lamp with Mounting Screws

For Sommer Lineamatic and Portronic D 5000 operators, this HORMANN SK Kit bundles a pair of EL-301 infrared photocells with an SLK 24V LED warning lamp—two safety essentials in one package. Unlike separate purchases, it includes all mounting screws and is ready for wired connection to the operator control unit.

Highlights

• Infrared photocells with 12 m detection range and relay output (NO/NC)
• LED warning lamp with flashing amber light, 24V DC
• Both components rated IP54 for outdoor use

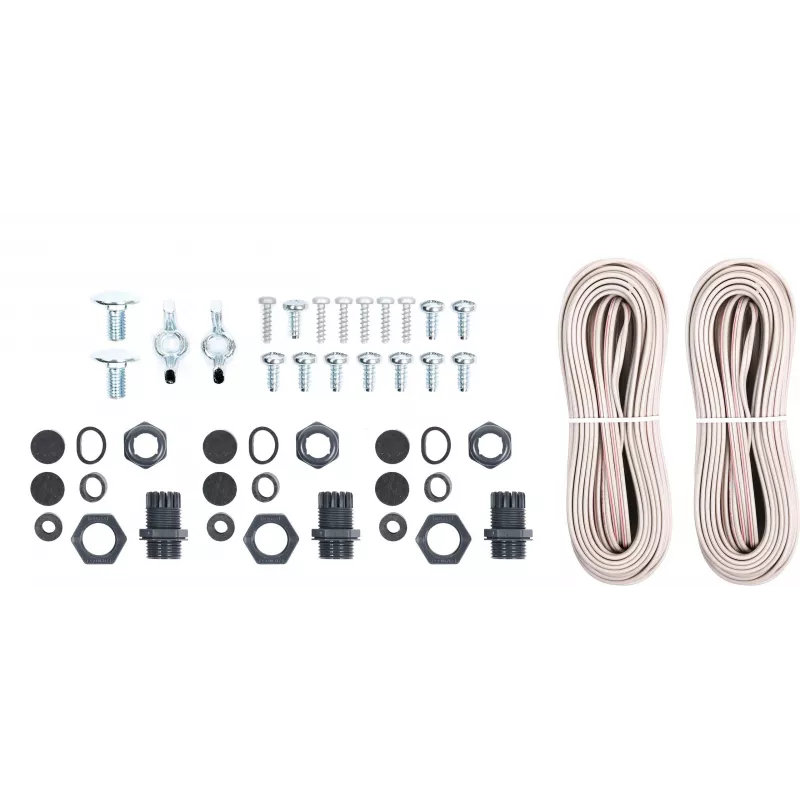

• Includes mounting screws for quick installation
• Plug-and-play wired connection to the operator control unit

In daily use

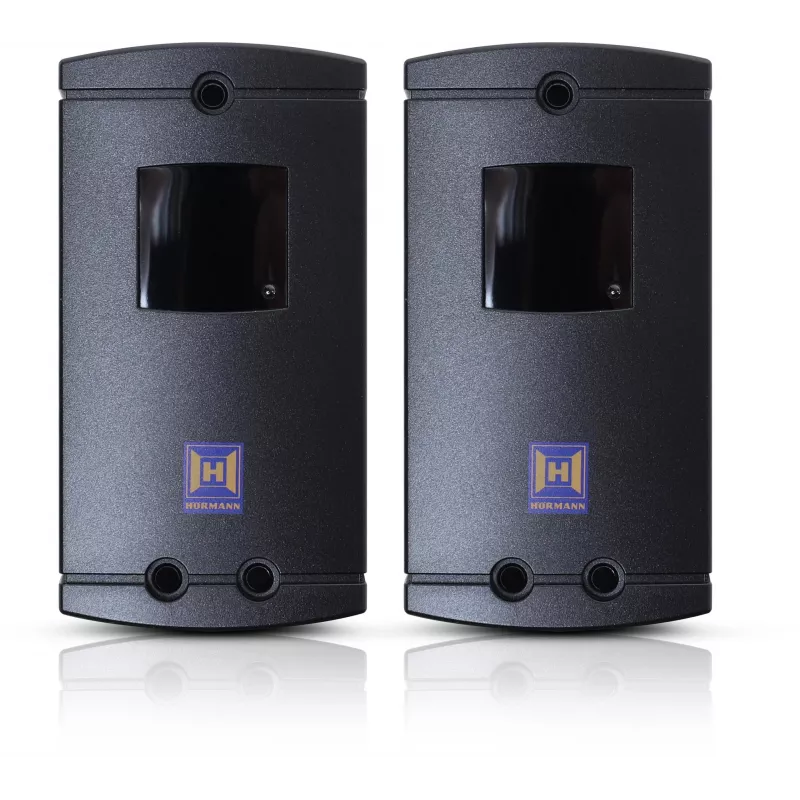

The EL-301 photocells create an invisible infrared beam across the gate or door opening. When the beam is interrupted, the operator stops or reverses, preventing accidents. The SLK 24V lamp flashes a bright amber LED signal whenever the gate moves, alerting pedestrians and vehicles. This kit is ideal for residential and light commercial installations where safety and visibility are paramount.

Full specifications

• Kit type: Safety and Warning Kit
• Compatible operators: Sommer Lineamatic, Sommer Portronic D 5000
• Photocell model: Sommer EL-301 (1 pair)
• Photocell technology: Infrared
• Detection range: Up to 12 m (with reflector)
• Power supply: 12–24 V AC/DC
• Output: Relay (NO/NC selectable)
• Protection rating: IP54
• Warning lamp model: Sommer SLK 24V
• Warning lamp voltage: 24 V DC
• Light source: High-brightness LED
• Lamp color: Amber
• Installation: Wired to operator control unit

Final note

Complete safety kit for Sommer operators—photocells and warning lamp with all mounting hardware included.
