Hormann FS-2 Two-Piece Short Toothed Belt Rail for Promatic/Supramatic Operators

The Hormann FS-2 two-piece short toothed belt rail (K version) is a genuine replacement or upgrade rail designed specifically for Hormann Promatic and Supramatic series garage door operators. Manufactured from high-quality galvanized steel, this rail ensures long-lasting durability and smooth operation for residential garage doors.

Advantages

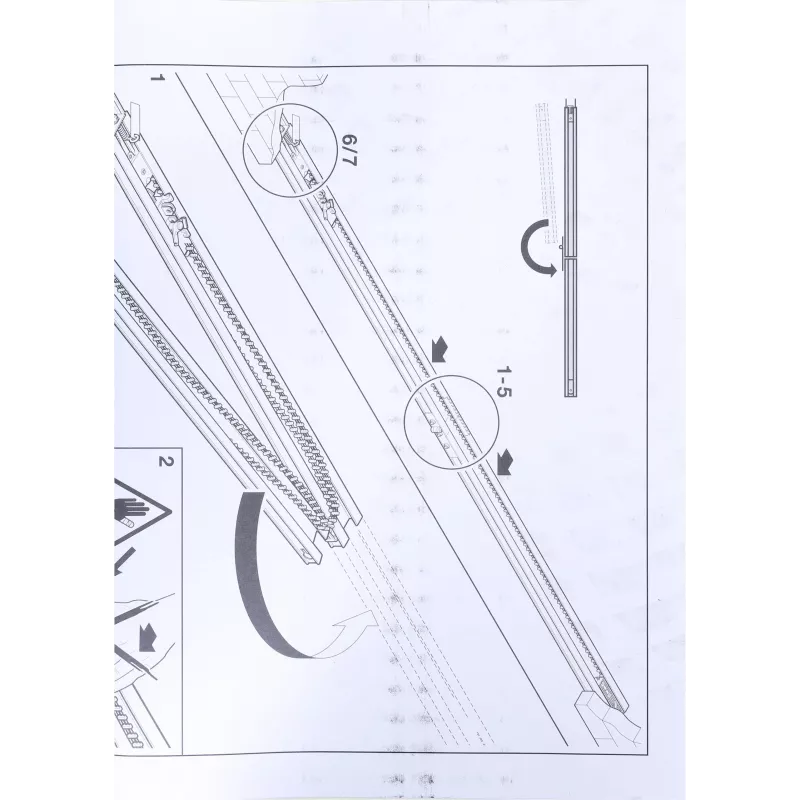

Easy click-in assembly system simplifies installation. The two-piece sectional design allows for convenient handling and mounting. Compatible with a wide range of Hormann operators, making it a versatile choice for repairs or new installations.

Suitable for

• Hormann Promatic Series 1, 2, 3, 4
• Hormann Supramatic Series 1, 2, 3, 4
• Residential up-and-over doors (max. height 2750 mm)
• Residential sectional doors (max. height 2250 mm)

Key specifications

• Rail Type: Toothed Belt Rail
• Construction: Two-piece (sectional)
• Version: K (Short)
• Total Assembled Length: Approx. 3000 mm
• Opening Stroke: Approx. 2475 mm
• Material: Galvanized Steel
• Installation: Ceiling mounted

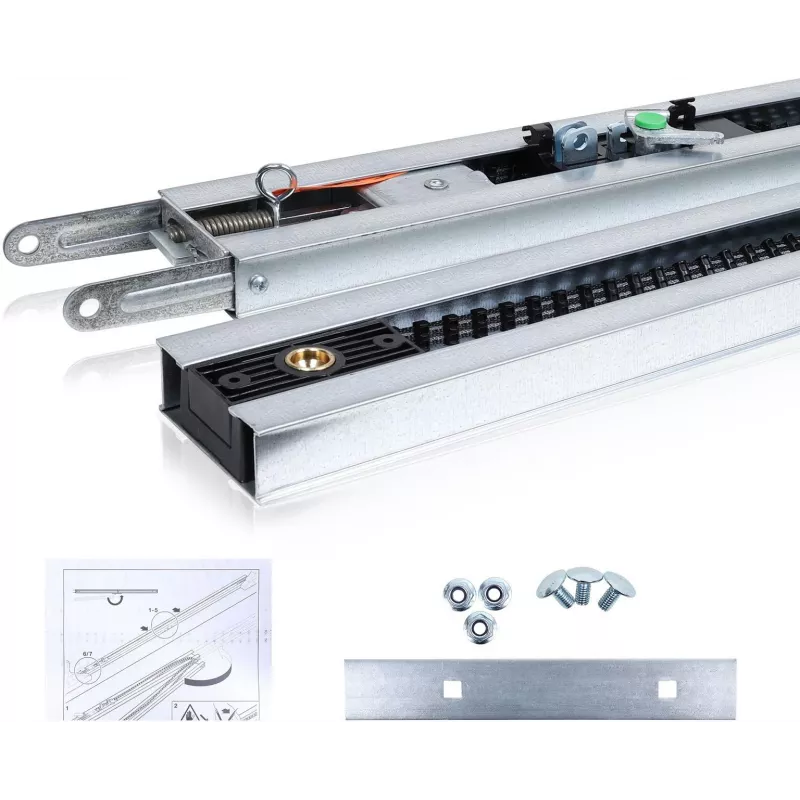

• Included: 2 rail sections, connecting elements, trolley/carriage

Recommendations

Ensure compatibility with your specific door type and operator model before purchase. Professional installation is recommended for optimal performance and safety.
