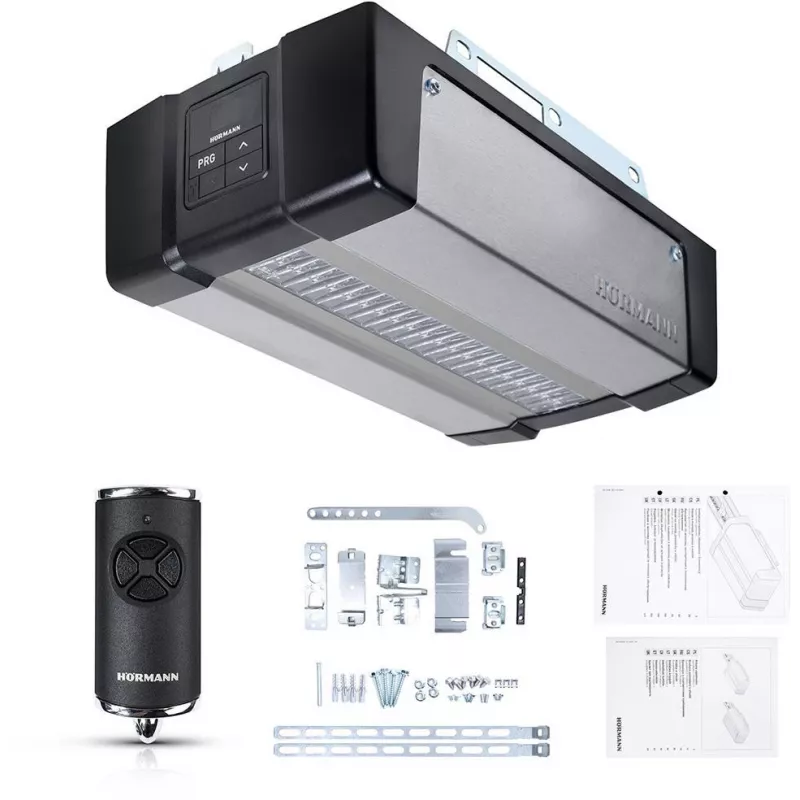

Hörmann Supramatic E4 868MHz BiSecure Garage Door Opener

The Hörmann Supramatic E4 868MHz BiSecure is a high-performance garage door operator designed for residential use. Featuring advanced BiSecure radio technology, it offers reliable and secure operation with a 5-channel integrated receiver. The DC gear motor provides smooth and quiet opening and closing, with soft start/stop functionality for enhanced safety and longevity.

Advantages

This operator delivers powerful performance with a maximum pulling/pushing force of 650 N and peak force of 800 N, suitable for doors up to 13.75 m² and widths up to 5500 mm. The integrated LED lighting is adjustable, and the standby power consumption is less than 1 W, making it energy-efficient. Safety features include automatic safety cut-out and anti-lift kit, ensuring peace of mind.

Suitable for

• Residential sectional garage doors
• Up-and-over garage doors
• Doors with maximum area 13.75 m² and width 5500 mm

Key specifications

• Motor Type: DC Gear Motor
• Motor Voltage: 24 V
• Max. Pulling/Pushing Force: 650 N
• Peak Force: 800 N
• Opening Speed: Up to 22 cm/s
• Radio System: Hörmann BiSecur
• Radio Frequency: 868.3 MHz
• Integrated Receiver: 5-channel
• Power Supply: 230 V AC, 50 Hz
• Standby Power Consumption: < 1 W
• Lighting: Integrated LED (adjustable)
• Safety Features: Automatic safety cut-out, Anti-lift kit
• Protection Class: IP 21
• Operating Temperature Range: -20°C to +60°C
• Soft Start/Soft Stop: Yes
• Connectivity: HCP interface for Smart Home systems
• Duty Cycle: 25 cycles/day, 10 cycles/hour

Recommendations

For optimal performance, ensure the door is properly balanced and lubricated. Professional installation is recommended. Compatible with Hörmann BiSecure hand transmitters and accessories.
