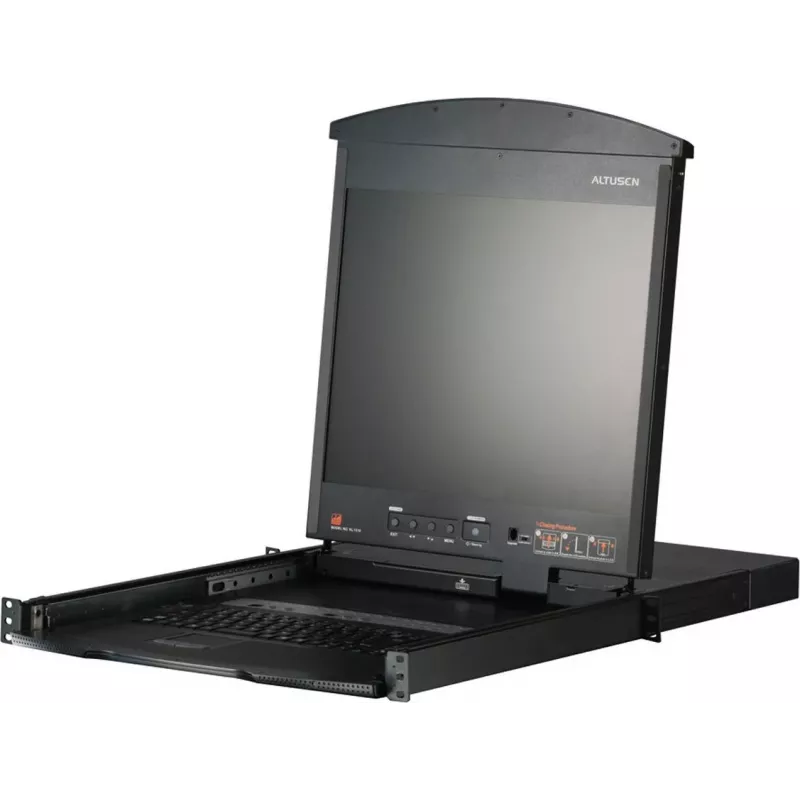

ATEN KL1508AiM CH 8-Port 17 inch LCD Cat5e/6 KVM Over IP Switch (Dual Rail, Swiss Keyboard)

In a busy data center, administrators need reliable, secure access to multiple servers from a single console. The ATEN KL1508AiM CH is an 8-port Cat5e/6 KVM over IP switch with an integrated 17-inch TFT-LCD monitor, keyboard, and touchpad in a dual rail 1U rack-mount design. It supports one local and two remote users, enabling BIOS-level control and virtual media over a Gigabit Ethernet network. With FIPS 140-2 certified encryption and support for RADIUS, LDAP, LDAPS, and MS Active Directory, it provides enterprise-grade security. Daisy chain up to 31 additional switches to manage up to 256 servers from a single console.

Key specifications

• 8 KVM ports for Cat5e/6 connections
• Integrated 17-inch TFT-LCD with 1280 x 1024 @ 75Hz resolution
• Dual rail 1U rack-mount design with Swiss (CH) keyboard layout
• Supports 1 local and 2 remote users simultaneously
• Remote video resolution up to 1920 x 1200 @ 60Hz
• Virtual media support for remote file transfers and OS installation
• FIPS 140-2 certified encryption, RADIUS, LDAP, LDAPS, MS Active Directory
• 2 x Gigabit Ethernet (RJ-45) network interfaces
• Daisy chain up to 31 additional KVM switches
• BIOS-level access and hot-pluggable
• Compatible with Windows, Mac, Sun, Linux
• Power consumption: 29.5W max

Why choose it

This KVM switch combines local and remote management in a compact dual rail design, saving valuable rack space while providing secure, high-resolution access to your servers. The Swiss keyboard layout ensures comfort for users in Switzerland, and the dual Gigabit Ethernet ports offer redundancy for mission-critical environments. With virtual media and BIOS-level control, you can perform remote maintenance tasks as if you were physically present.

Ideal use cases

• Data centers and server rooms requiring centralized management of multiple servers
• IT administrators needing secure remote access from anywhere
• Environments with limited rack space where a dual rail LCD console is essential
• Organizations requiring compliance with security standards like FIPS 140-2

Good to know

The KL1508AiM CH uses standard Cat5e/6 UTP/STP cables for KVM connections, reducing cable bulk and allowing distances up to 50 meters between the switch and servers. Firmware upgrades can be performed over the network, and the unit is hot-pluggable for easy maintenance. The integrated touchpad and keyboard are designed for durability in high-use environments.
