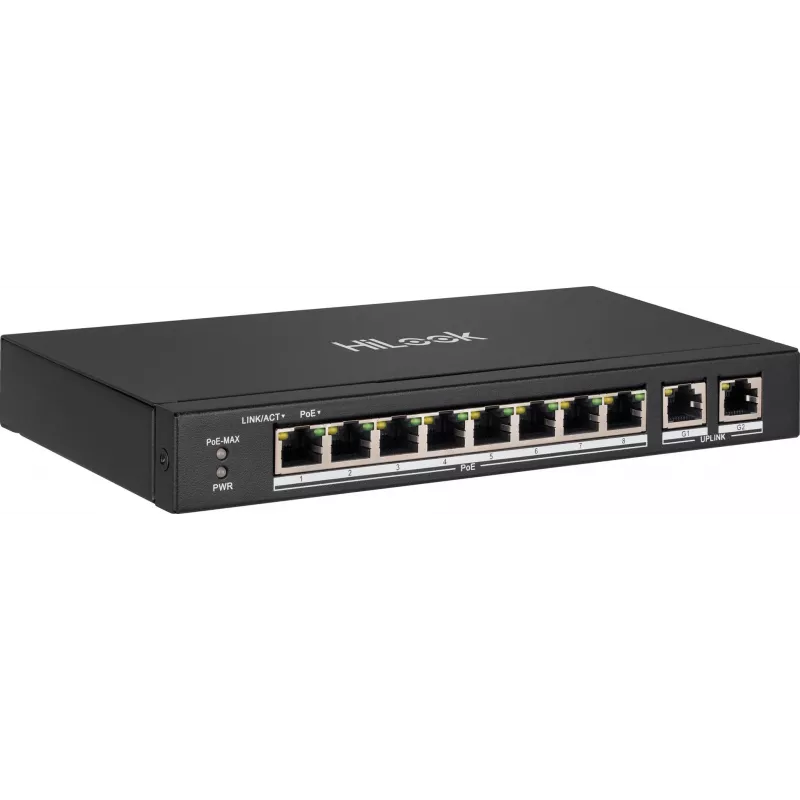

Hikvision Hilook NS-0310P-60 8-Port PoE+ Switch, 60W, Unmanaged, Desktop

The Hikvision Hilook NS-0310P-60 is a reliable and cost-effective unmanaged PoE+ switch designed for small to medium-sized surveillance and network installations. With 8 PoE+ ports and a total power budget of 60W, it provides both data and power to IP cameras, access points, and other PoE devices over a single Ethernet cable, simplifying deployment and reducing cabling costs.

Advantages

This switch offers plug-and-play operation with no configuration required, making it ideal for quick installations. The PoE Watchdog feature automatically detects and resets non-responsive PoE devices, ensuring continuous operation. Extend Mode allows transmission distances up to 250m at 10 Mbps, perfect for covering larger areas. The metal housing and 6 KV surge protection ensure durability and reliability in demanding environments.

Suitable for

• IP surveillance systems with up to 8 cameras
• Wireless access point deployments
• Small office or retail network expansions
• Remote monitoring installations requiring long-distance PoE

Key specifications

• 8 x PoE+ (IEEE 802.3af/at) ports, up to 30W per port
• 2 x 10/100 Mbps uplink ports
• Total PoE power budget: 60W
• Switching capacity: 2 Gbps
• MAC address table: 2K
• Jumbo frame support: 2 KB
• Transmission distance: 100m standard, up to 250m in Extend Mode
• Power supply: 48 VDC, 1.35 A external adapter
• Operating temperature: -10°C to 55°C
• Metal housing, desktop or wall-mountable

Recommendations

For optimal performance, use with Hikvision IP cameras and ensure the total PoE power consumption does not exceed 60W. The switch is unmanaged, so it is best suited for simple networks where advanced features like VLANs are not required. For larger installations, consider a managed switch with higher power budget.
