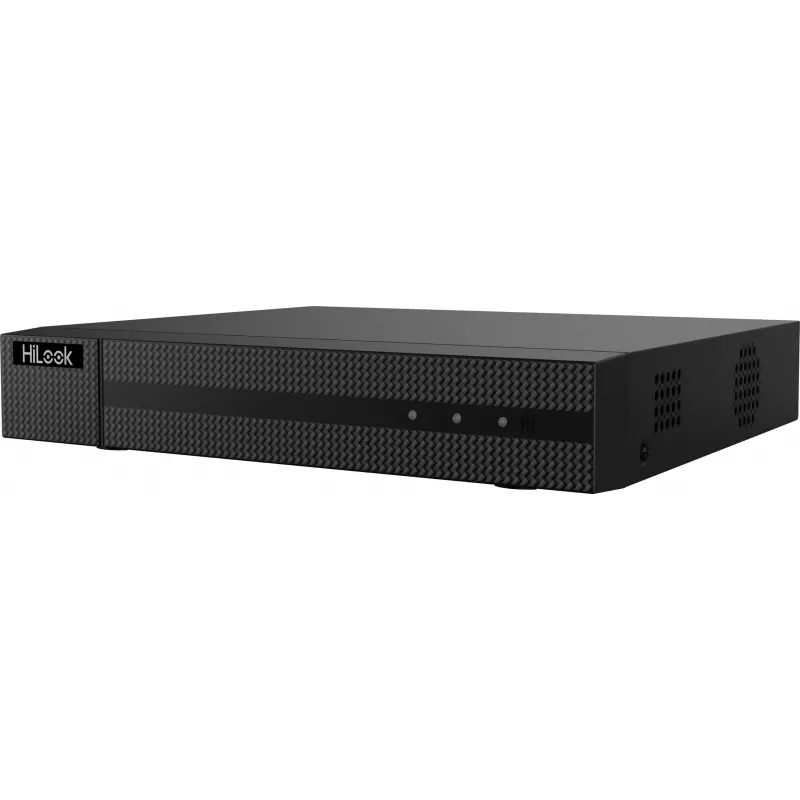

Hikvision HiLook DVR-208Q-M1 8-Channel 5MP 5-in-1 Hybrid DVR Recorder

The Hikvision HiLook DVR-208Q-M1 is a high-performance 8-channel hybrid DVR recorder designed for professional surveillance systems. Supporting 5-in-1 video input (HDTVI/AHD/CVI/CVBS/IP), it offers flexibility to integrate various camera types. With 5MP Lite recording resolution and H.265 Pro+ compression, it delivers clear video while saving bandwidth and storage. Ideal for small to medium businesses, retail stores, and residential applications.

Advantages

This DVR features 5-in-1 technology, allowing seamless connection of analog and IP cameras. It supports up to 10 TB HDD capacity for extended recording. The H.265 Pro+ codec reduces storage requirements by up to 75% compared to H.264. Easy setup with plug-and-play BNC inputs and intuitive interface.

Suitable for

• Retail shops and supermarkets
• Office buildings and warehouses
• Residential homes and apartments
• Small to medium enterprises

Key specifications

• 8 analog BNC inputs (5-in-1: HDTVI/AHD/CVI/CVBS/IP)
• 2 additional IP channels (up to 10 total with analog disabled)
• Recording resolution: 5MP Lite, 4MP Lite, 1080p, 720p
• Video compression: H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
• HDMI and VGA outputs up to 1920x1080
• 1 SATA interface, up to 10 TB per HDD
• 1-channel RCA audio input and output
• 1x 10/100 Mbps Ethernet port
• 2x USB 2.0 ports
• Power supply: 12 VDC, ≤18 W (without HDD)
• Operating temperature: -10°C to +55°C

Recommendations

For optimal performance, use with Hikvision HiLook cameras and a compatible HDD (not included). Ensure proper ventilation and stable power supply.
