Hikvision DS-7716NXI-K4(D) 16-Channel AcuSense DVR/NVR, 4K HDMI, 4 SATA, H.265+

The Hikvision DS-7716NXI-K4(D) is a high-performance 16-channel DVR/NVR that combines advanced AcuSense technology with powerful AI capabilities. Designed for professional surveillance, it supports H.265+ compression to save bandwidth and storage while delivering up to 4K resolution via HDMI. With 4 SATA interfaces (up to 10 TB each), 160 Mbps incoming bandwidth, and 16-channel synchronous playback, this unit is ideal for medium to large-scale security systems.

Advantages

AcuSense technology reduces false alarms by classifying humans and vehicles, while AI by NVR enables perimeter protection, facial recognition, and human/vehicle analysis. The 1.5U rack-mountable chassis and dual Gigabit Ethernet ports ensure reliable, high-speed network integration.

Suitable for

• Retail stores and shopping centers
• Office buildings and corporate campuses
• Warehouses and logistics centers
• Educational institutions and hospitals
• Any site requiring intelligent video analytics

Key specifications

• 16-channel IP video input
• H.265+/H.265/H.264+/H.264 compression
• Incoming bandwidth: 160 Mbps; Outgoing: 256 Mbps
• HDMI output: 1-ch, up to 4K (3840×2160)
• VGA output: 1-ch, up to 1080p (1920×1080)
• Decoding: 2-ch@12 MP (30 fps) / 3-ch@8 MP (30 fps) / 6-ch@4 MP (30 fps) / 12-ch@1080p (30 fps)
• 4 SATA interfaces, each up to 10 TB
• 2 x RJ45 10/100/1000 Mbps Ethernet
• 2 x USB 2.0 (front), 1 x USB 3.0 (rear)
• 1-ch RCA audio input, 1-ch RCA audio output
• 16-ch alarm input, 4-ch alarm output
• AcuSense: human/vehicle classification
• AI by NVR: 4-ch perimeter protection, 1-ch facial recognition, or 8-ch human/vehicle analysis
• 16-channel synchronous playback

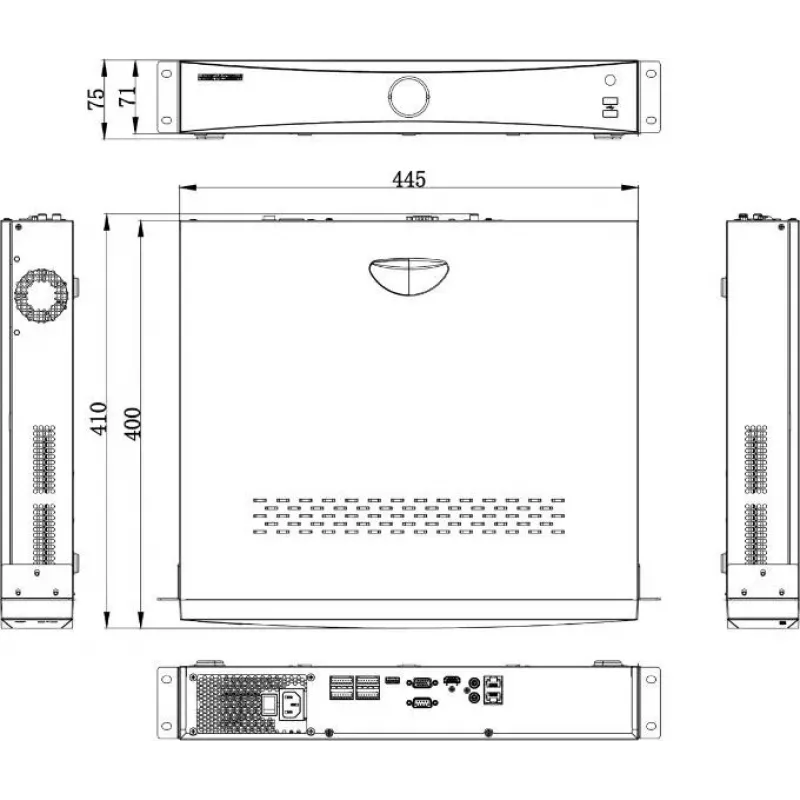

• 1.5U rack-mountable chassis
• Power: 100-240 VAC, 50/60 Hz, ≤20 W (without HDD)
• Operating temperature: -10°C to 55°C (14°F to 131°F)

Recommendations

For optimal performance, pair with Hikvision AcuSense cameras and use enterprise-grade HDDs (up to 10 TB each). Ensure proper ventilation in the rack to maintain operating temperature.
