Network Video Recorder IMOU N110W — 10-channel NVR, 2592×1944 max, Dual-band Wi‑Fi, 16 TB SATA storage, Gigabit Ethernet, Black

IMOU N110W is a 10-channel network video recorder designed for continuous surveillance recording and centralized storage. It supports video up to 2592×1944 resolution and AAC audio, provides dual-band Wi‑Fi (2.4/5 GHz) with broad 802.11b/g/n/ax compatibility, Gigabit Ethernet connectivity and SATA HDD support up to 16 TB. The unit includes built-in microphone and speaker for two-way audio and offers both HDMI and VGA outputs with up to 4K UHD display capability for clear local monitoring.

Advantages

The recorder combines multi-channel input with high-resolution support to handle small and medium installations that require centralized, reliable recording. Dual-band Wi‑Fi 6 with four antennas improves wireless stability and reduces latency for connected cameras, while Gigabit Ethernet ensures fast wired network performance. Native two-way audio removes the need for additional audio peripherals and simplifies interaction. SATA support for up to 16 TB enables extended retention times on a single drive.

Suitable for

• Small and medium business surveillance systems
• Home security setups with multiple cameras
• Retail stores and offices requiring centralized recording
• Remote monitoring where both wired and wireless camera connections are used

Key specifications

• Channel capacity: 10 video input channels
• Maximum supported camera resolution: 2592 × 1944 pixels
• Audio: AAC audio support; built-in microphone and speaker for two-way audio

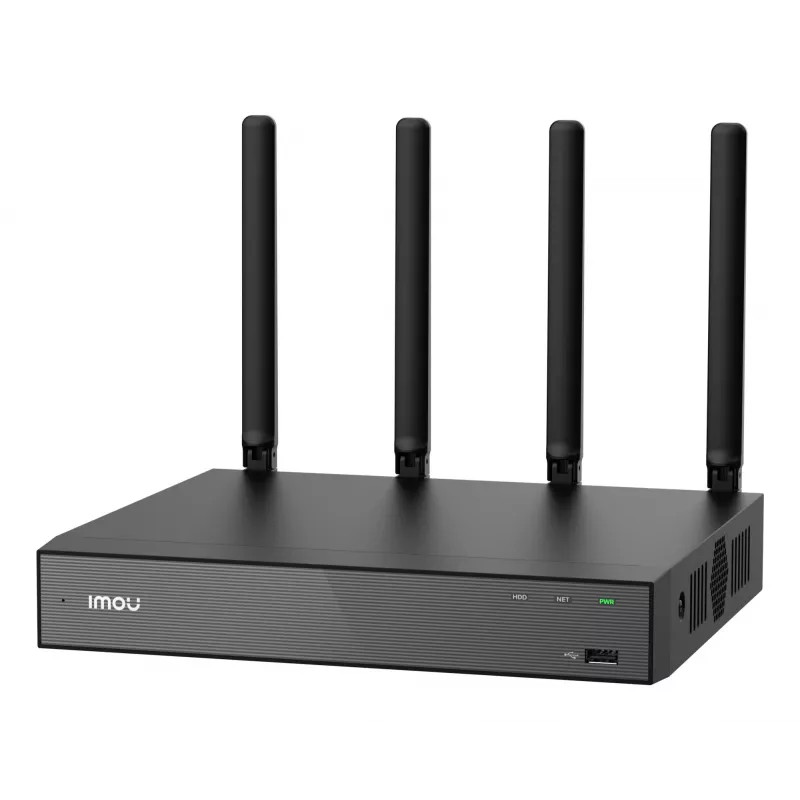

• Wireless: Dual-band Wi‑Fi (2.4/5 GHz) compatible with 802.11b/g/n/ax standards; 4 external antennas
• Wired network: Gigabit Ethernet (10/100/1000 Mbit/s)
• Storage interface: SATA HDD support, single drive up to 16 TB
• Video outputs: HDMI and VGA with up to 4K UHD output capability
• Color: Black

How to use

Install the IMOU N110W in a well-ventilated location near the network switch or router. Connect cameras via Wi‑Fi or wired network; IMOU cameras can auto-pair with the recorder to simplify setup. Attach a compatible SATA hard drive (up to 16 TB) following the manufacturer’s mounting instructions, then connect the recorder to a monitor using HDMI or VGA for local display. Configure recording schedules, motion detection and remote access through the IMOU management app or web interface. Ensure firmware is up to date before placing the system into continuous operation.

Recommendations

Keep the device on a stable surface with adequate airflow and use a dedicated surge protector. For reliable recording and longer retention, choose a CCTV-grade SATA HDD rated for continuous video write cycles. When using wireless cameras, place the NVR centrally to reduce interference and take advantage of the dual-band Wi‑Fi; for critical areas, prefer wired Gigabit Ethernet connections. Regularly check drive health and update firmware and app credentials to maintain security and performance.
