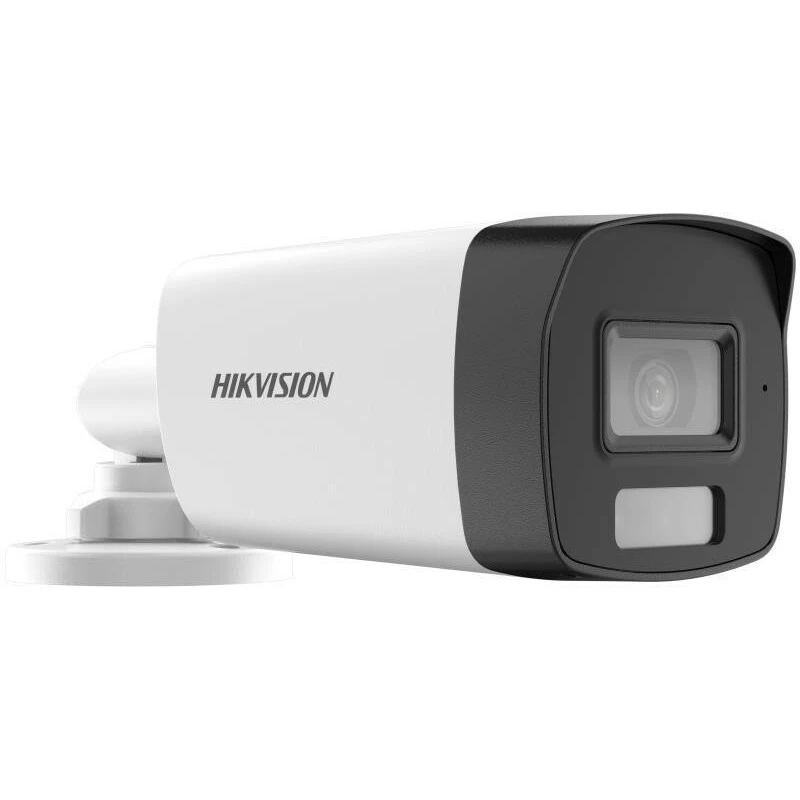

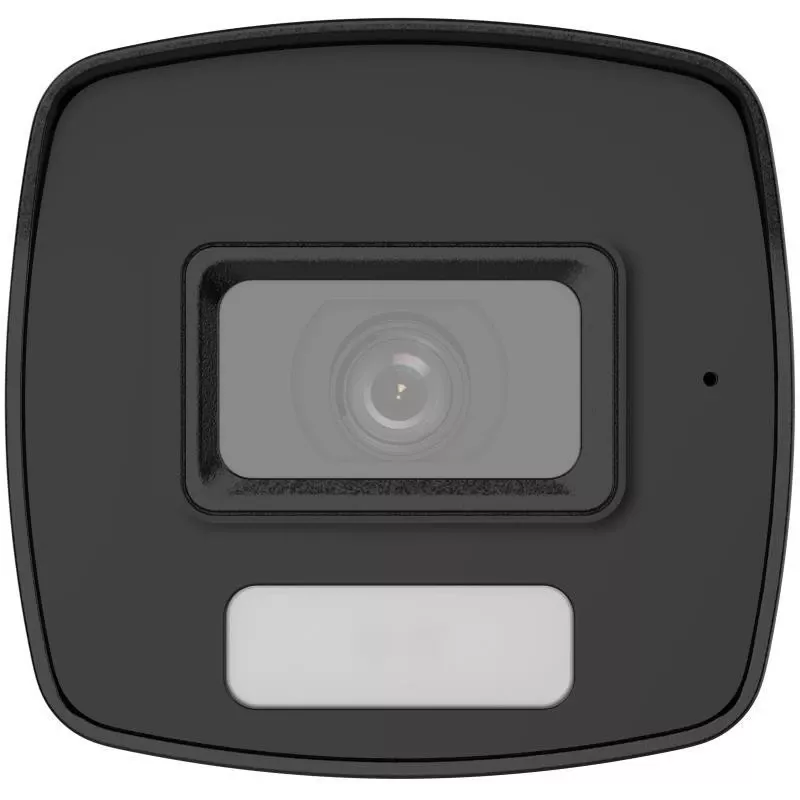

Hikvision DS-2CE17D0T-LFS(2.8mm) 2MP Mini Bullet Camera

The Hikvision DS-2CE17D0T-LFS(2.8mm) is a high-performance 2MP mini bullet camera designed for reliable surveillance in various indoor and outdoor environments. Featuring ColorVu technology, it delivers vivid color images even in low-light conditions, ensuring clear identification of details. With a 2.8mm fixed lens and a wide field of view, this camera is ideal for monitoring entrances, corridors, and small to medium-sized areas.

Advantages

Equipped with a 2MP CMOS sensor, the camera provides Full HD 1080p resolution at 30fps. The built-in white light illuminator offers up to 20 meters of visibility in complete darkness, while the IP67 rating ensures dust and water resistance. Digital WDR and 2D DNR enhance image quality in challenging lighting conditions. The switchable TVI/AHD/CVI/CVBS output allows compatibility with most DVRs.

Suitable for

• Residential properties
• Small businesses
• Retail stores
• Office entrances
• Parking lots

Key specifications

• Image Sensor: 2 MP CMOS
• Max. Resolution: 1920 x 1080 (1080p)
• Frame Rate: 1080p@30fps, 1080p@25fps
• Lens: 2.8 mm fixed focal
• Field of View: Horizontal: 101°, Vertical: 56°, Diagonal: 119°
• Minimum Illumination: 0.001 Lux @ (F1.0, AGC ON), 0 Lux with White Light
• White Light Range: Up to 20 m
• Day/Night: Color (ColorVu Technology)
• WDR: Digital WDR (DWDR)
• DNR: 2D DNR
• Video Output: Switchable TVI/AHD/CVI/CVBS
• Audio: Built-in Microphone, Audio over Coaxial
• Power Supply: 12 VDC ± 25%
• Power Consumption: Max. 2.4 W
• Ingress Protection: IP67
• Operating Temperature: -40 °C to 60 °C (-40 °F to 140 °F)
• Material: Metal

Recommendations

For optimal performance, use a compatible Hikvision DVR and a regulated 12VDC power supply. Ensure proper cable connections for audio and video transmission. The camera is easy to install with its compact design and wall-mount bracket.
