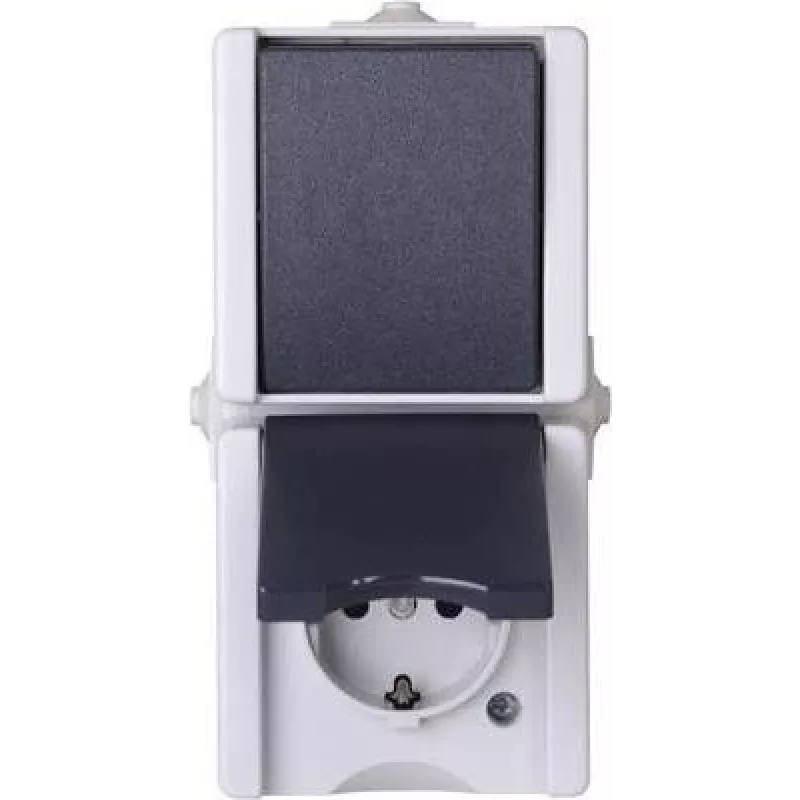

Heinrich Kopp Vertical Combination Switch/Schuko Socket Surface-Mounted Damp-Proof proAQA Grey

The Heinrich Kopp proAQA combination unit offers a vertical arrangement of a changeover switch and a Schuko socket (Type F) in a single surface-mounted enclosure. Designed for damp rooms and outdoor areas, it provides reliable protection against splashing water (IP44) and is UV resistant for long-lasting performance.

Advantages

Space-saving vertical design combines switching and power outlet functions. The robust thermoplastic housing is halogen-free and suitable for damp environments. Screw terminals ensure secure and easy wiring.

Suitable for

• Damp rooms such as bathrooms, laundry rooms, and cellars
• Outdoor areas under cover (e.g., terraces, garages)
• Industrial and commercial installations requiring IP44 protection

Key specifications

• Mounting Type: Surface-mounted (AP)
• Protection Class: IP44
• Function: Switch and Schuko Socket Combination
• Arrangement: Vertical
• Colour: Grey
• Material: Thermoplastic
• Rated Voltage: 250 V AC
• Rated Current (Switch): 10 A
• Rated Current (Socket): 16 A
• Switch Type: Changeover switch
• Socket Type: Schuko (Type F) with earthing contact
• Connection Type: Screw terminals
• Series: Kopp proAQA
• Frequency: 50/60 Hz
• Halogen-free: Yes
• Suitable for Damp Rooms: Yes
• Number of Modules: 2 (1 switch, 1 socket)
• Operating Temperature Range: -25 to +40 °C
• UV Resistant: Yes

Recommendations

For optimal safety, installation should be performed by a qualified electrician. Ensure the device is used within its specified ratings and environmental conditions.
