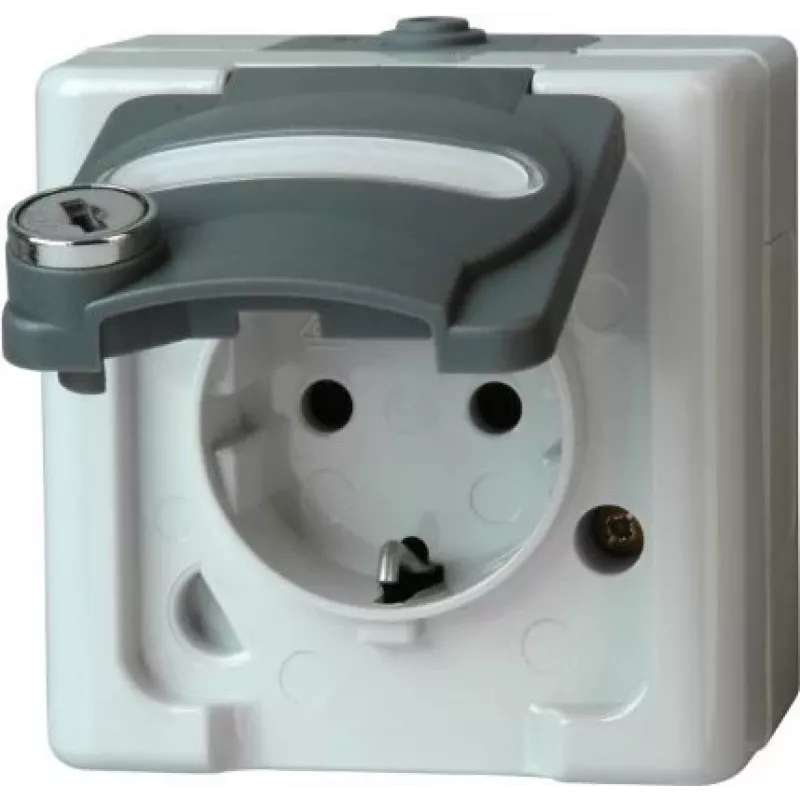

HEINRICH KOPP 1-Gang Surface-Mounted Weatherproof Socket with Safety Lock, IP44, Grey (103456009)

The HEINRICH KOPP 103456009 is a high-quality surface-mounted weatherproof socket outlet with an integrated safety lock, designed for reliable and secure power supply in damp and demanding environments. This single socket (Type F, CEE 7/3) offers IP44 splash-water protection and is ideal for use in wet rooms, basements, garages, workshops, and covered outdoor areas. The built-in safety lock prevents unauthorized use, making it perfect for public or semi-public spaces where controlled access is required.

Advantages

Integrated safety lock prevents unauthorized use, ideal for schools, hotels, or common areas. IP44 splash-water protection ensures safe operation in damp conditions. Surface-mounted design allows for quick and easy installation. Robust thermoplastic housing with IK07 impact resistance withstands mechanical stress. Halogen-free and UV-resistant materials ensure long-lasting performance.

Suitable for

• Wet rooms and bathrooms
• Basements and cellars
• Garages and workshops
• Covered outdoor areas and patios
• Public facilities requiring controlled access

Key specifications

• Socket standard: Schutzkontakt (Type F, CEE 7/3)
• Number of outlets: 1
• Mounting method: Surface-mounted (AP)
• Protection rating: IP44
• Special feature: Integrated safety lock
• Colour: Grey
• Rated voltage: 230 V AC
• Rated current: 16 A
• Frequency: 50/60 Hz
• Connection type: Screw terminals
• Material: High-quality thermoplastic
• Impact resistance: IK07
• Operating temperature: -25°C to +40°C
• Cable entry: Multiple (top, bottom, rear)
• Halogen-free: Yes
• UV resistance: Yes
• Grounding: Protective earth contact

Recommendations

For optimal safety and durability, this socket is recommended for use in areas exposed to moisture or where controlled access is needed. Pair with appropriate weatherproof covers and cable glands for complete protection.
