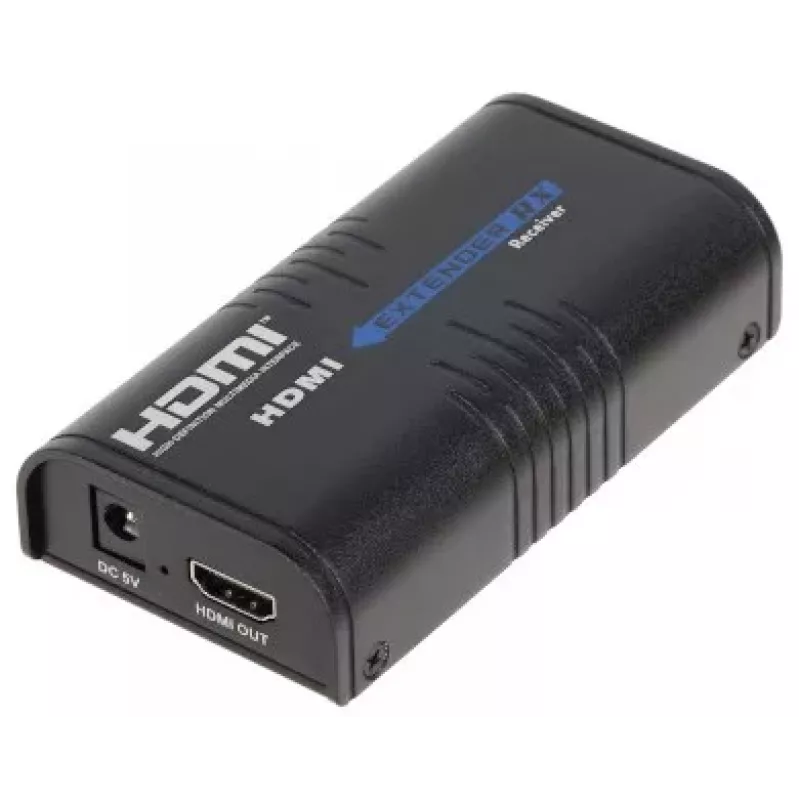

HDMI Extender Receiver 1080p@60Hz 60m CAT6

The HDMI Extender Receiver is a high-performance solution for extending HDMI signals over long distances using CAT6/6a/7 cables. Designed for professional AV installations, this receiver works in conjunction with a compatible transmitter to deliver uncompressed 1080p Full HD video and multi-channel audio up to 60 meters.

Advantages

This extender receiver offers near-zero latency, ensuring real-time video transmission ideal for presentations, digital signage, and home theater setups. Its metal alloy housing provides durability and effective heat dissipation, while plug-and-play operation eliminates the need for complex configuration. With support for Deep Color (8/10/12-bit) and advanced audio formats like DTS-HD and Dolby TrueHD, it delivers an immersive viewing experience.

Suitable for

• Extending HDMI signals from source devices (Blu-ray players, gaming consoles, PCs) to remote displays
• Professional AV installations in conference rooms, classrooms, and retail environments
• Home theater setups requiring long cable runs without signal degradation

Key specifications

• Product Type: HDMI Extender Receiver
• HDMI Version: 1.3b
• HDCP Version: 1.2
• Max Resolution: 1080p@60Hz
• Max Transmission Distance: 60 meters (over CAT6/6a/7)
• Receiver Input: 1x RJ45
• Receiver Output: 1x HDMI Type A Female
• Audio Support: DTS-HD, Dolby TrueHD, LPCM 7.1, DTS, Dolby AC3, DSD
• Video Bandwidth: 2.25 Gbps
• Color Depth: 8/10/12-bit Deep Color
• Power Supply: DC 5V/1A (adapter included)
• Housing Material: Metal Alloy
• ESD Protection: ±8kV (air-gap), ±4kV (contact)
• Operating Temperature: 0°C to 60°C
• Power Consumption: <2W per unit

Recommendations

For optimal performance, use high-quality CAT6 or CAT7 cables and pair with a compatible HDMI Extender Transmitter. Ensure the total cable run does not exceed 60 meters to maintain signal integrity.
