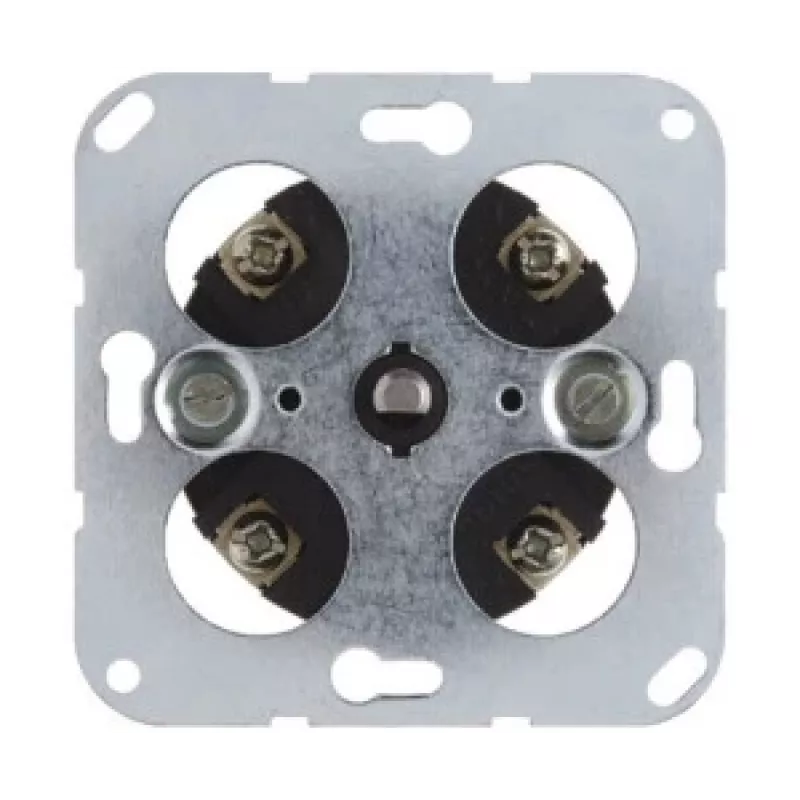

Hager WDE2041 Mechanical Timer Switch 2-Pole 120 min Flush-Mounted Insert

The Hager WDE2041 is a mechanical timer switch insert designed for flush-mounted installation. It offers a maximum switching time of 120 minutes and is suitable for controlling lighting, ventilation, and heating systems. This 2-pole timer switch provides reliable time-based control for various applications.

Advantages

Simple mechanical operation with rotary knob for easy time setting. Compact 1-module design fits standard flush-mounted boxes. Halogen-free thermoplastic material ensures safety and durability. Screw terminals provide secure and easy wiring.

Suitable for

• Lighting control in stairwells, corridors, and basements
• Ventilation system timing
• Heating control for temporary operation
• Any application requiring timed switching up to 120 minutes

Key specifications

• Product Type: Mechanical Timer Switch Insert
• Installation: Flush-mounted (Unterputz)
• Max. Switching Time: 120 minutes
• Number of Poles: 2-pole (2P)
• Switching Capacity: 10 A
• Rated Voltage: 230 V AC
• Frequency: 50/60 Hz
• Connection: Screw terminals
• Protection Class: IP20
• Ambient Temperature: -5 to +45 °C
• Operation: Rotary knob
• Material: Thermoplastic, halogen-free
• Module Width: 1 module
• Contact Type: Normally Open (NO)
• Compatible Switch Program: Hager Systo / Kallysto (requires cover and frame)
• Mounting Depth: Approx. 32 mm

Recommendations

For complete installation, use with a compatible Hager Systo or Kallysto cover and frame. Ensure proper wiring according to local regulations. This timer switch is ideal for retrofitting or new installations where timed control is needed.
