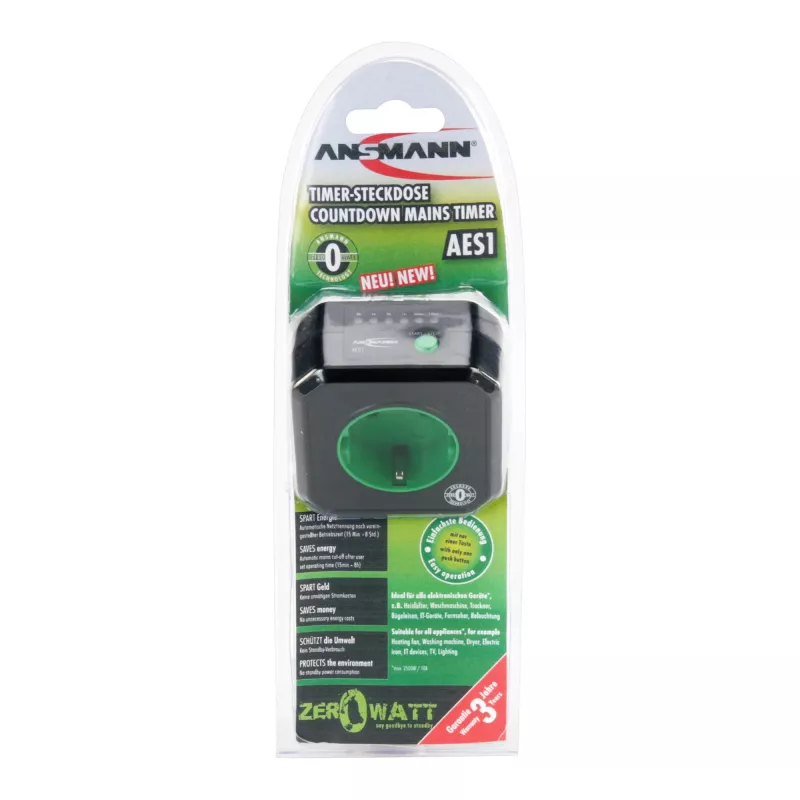

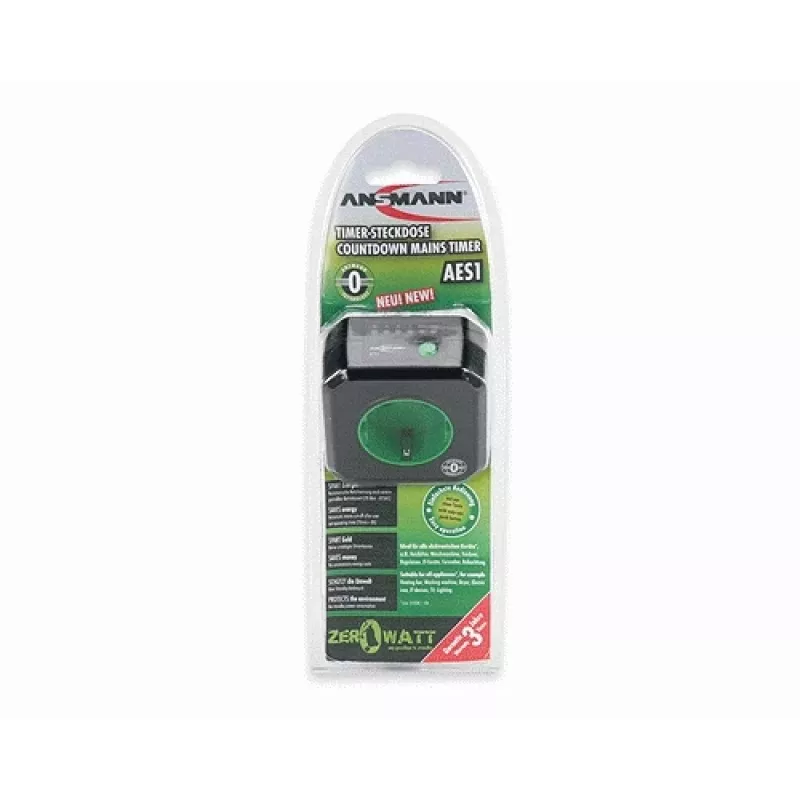

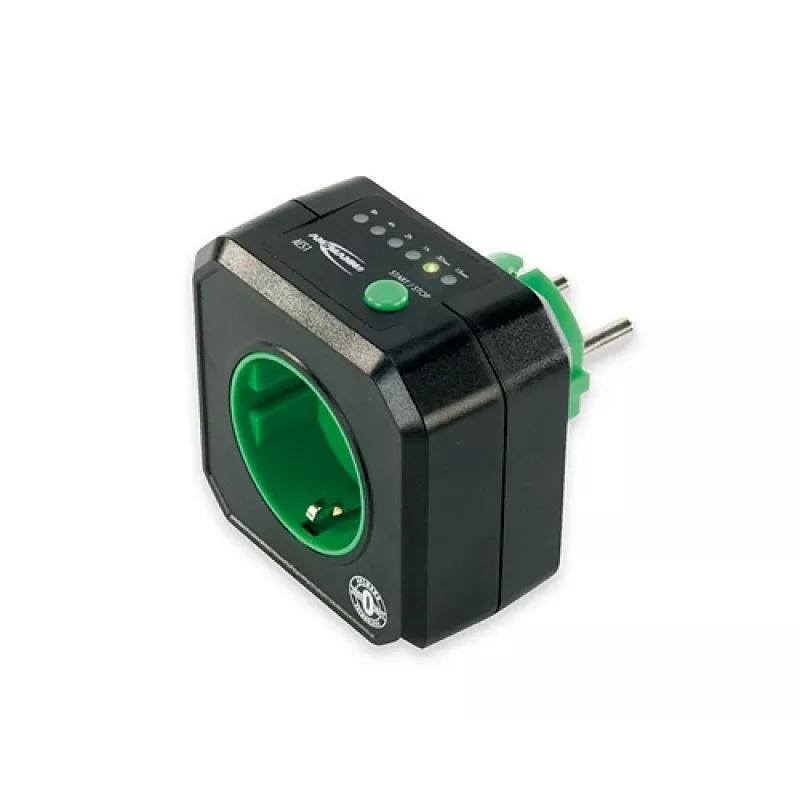

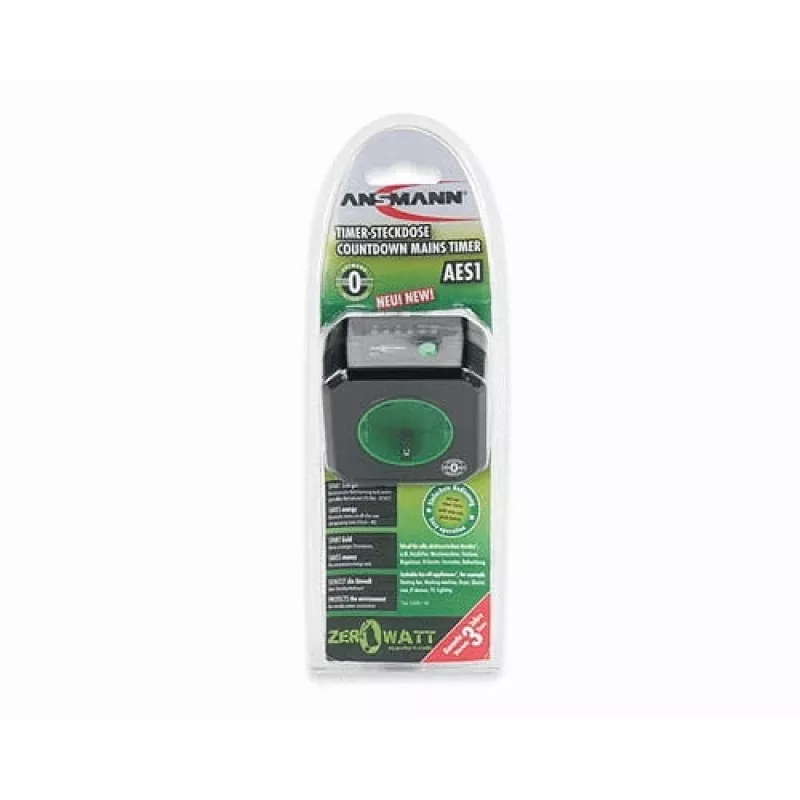

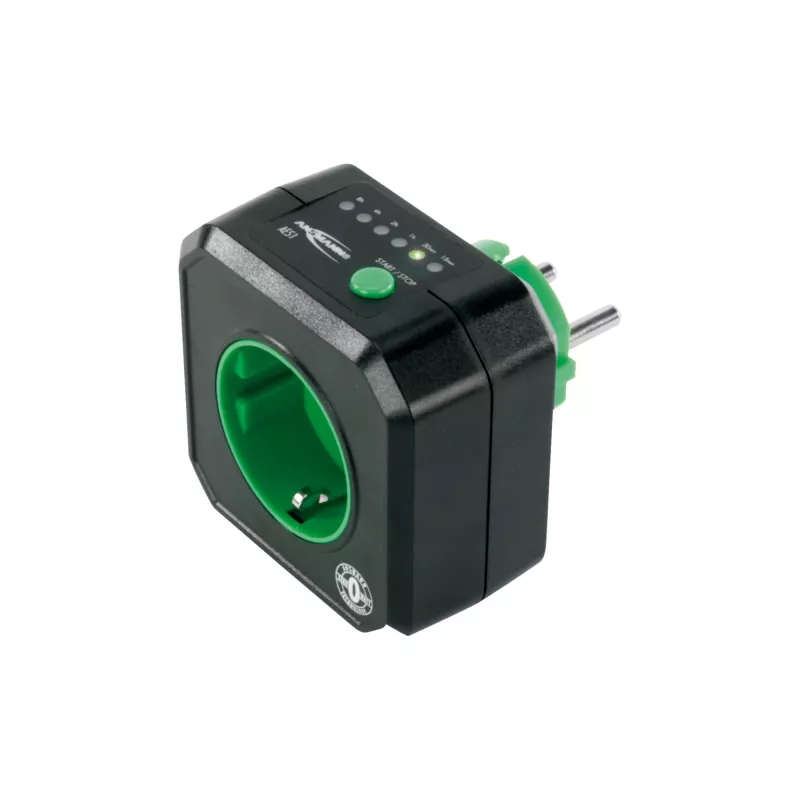

Power Adapter Inverter Ansmann AES1 Black

The Ansmann AES1 Black is a timer-controlled power adapter/inverter for 230 V AC, 50 Hz mains. It disconnects connected loads such as heaters, irons, pumps, printers, copiers and coffee machines after a user-selected operating time between 15 minutes and 8 hours. The device features a compact black housing and is suitable for home and professional environments where timed power cut-off is required.

Advantages

The AES1 consumes no standby power (0 W) and provides a safe, automatic disconnection from mains power after the selected operating time. It is operated with a single push button and shows remaining operating time via an LED indicator. Multiple preset running times are available for flexible use.

Suitable for

• Automatic shut-off of heaters and irons
• Timed control of pumps and small motors
• Power management for printers, copiers and coffee machines
• Temporary power supply for appliances that require limited run times

Key specifications

• Input/output voltage: 230 V AC / 50 Hz
• Selectable operating times: 15 min, 30 min, 1 h, 2 h, 4 h, 8 h
• Maximum resistive load: 2500 W / 10 A
• Maximum inductive load: 1150 VA / 5 A (e.g. electric motor)
• No standby power consumption: 0 W
• Colour: Black
• Brand: ANSMANN, MPN: 5024063, EAN: 4013674024063

How to use

Plug the AES1 into a compatible 230 V AC mains socket and connect the appliance to be timed. Press the single push button to select the required operating time; the LED indicates the remaining time. When the selected interval elapses, the adapter/inverter disconnects the load from mains power automatically. Observe the maximum load ratings and do not exceed the specified resistive or inductive limits.

Recommendations

Do not connect devices that draw more than the specified maximum resistive (2500 W / 10 A) or inductive loads (1150 VA / 5 A). Allow adequate ventilation around the unit and avoid use in damp or wet locations. For appliances with high inrush currents (large motors or compressors), verify compatibility with the inductive load rating before use.
