Hager Meter Connection Column Plastic IP44 100A 1-Meter Place Grey

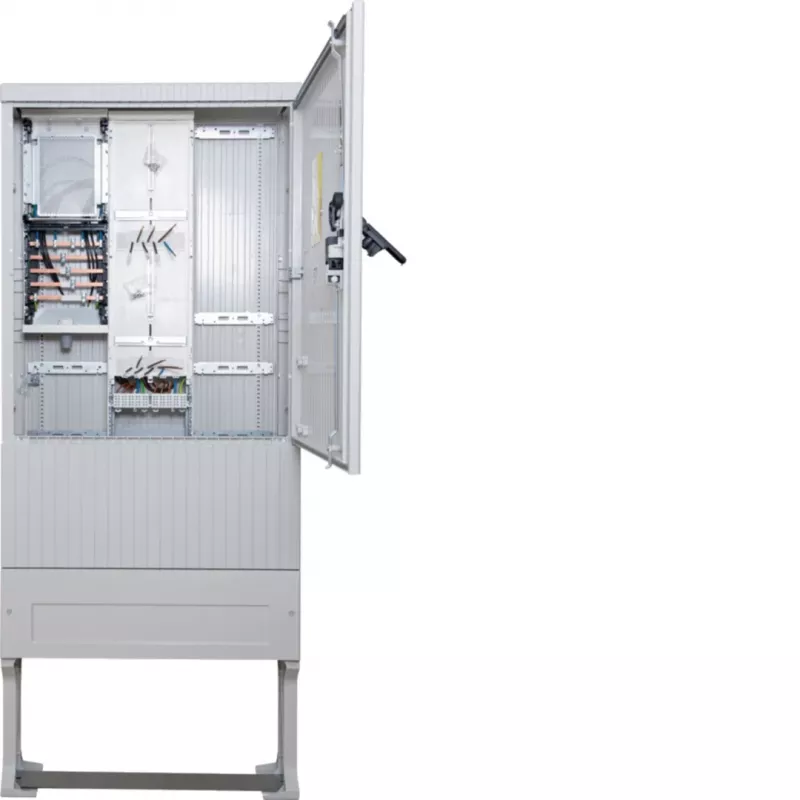

The Hager ZAS207BD25A is a robust meter connection column made from UV-resistant polycarbonate plastic, designed for outdoor use. It provides a reliable and secure solution for connecting electrical meters in residential and commercial installations. With an IP44 rating, it offers protection against splashing water and solid foreign objects, ensuring long-lasting performance in various weather conditions.

Advantages

This meter connection column is pre-configured with essential components, saving time and effort during installation. The UV-stable polycarbonate material ensures durability and resistance to environmental influences. The lockable door provides security against unauthorized access, while the bottom cable entry simplifies wiring.

Suitable for

• Outdoor meter installations in residential buildings
• Commercial properties requiring a single-meter connection
• New constructions or retrofitting projects
• Applications needing a compact, freestanding or ground-mounted solution

Key specifications

• Material: Plastic (UV-resistant polycarbonate)
• Protection class: IP44
• Rated current: 100 A
• Rated voltage: 230/400 V AC
• Number of meter places: 1
• Fuse type: NH00
• Connection type: 3-phase
• Mounting type: Freestanding / Ground installation
• Colour: Grey (RAL 7035)
• Equipment: 1 meter place, 1 main switch, 3 NH00 fuse bases, terminal blocks, PE/N busbar
• Application area: Outdoor
• Door type: Lockable
• Cable entry: From below
• Standards: DIN VDE 0603-1, DIN 43870-1
• Operating temperature range: -25°C to +40°C

Recommendations

For optimal performance, ensure that the column is installed on a stable foundation and that all connections are carried out by a qualified electrician. Regular inspection of seals and locking mechanism is recommended to maintain IP44 protection.
