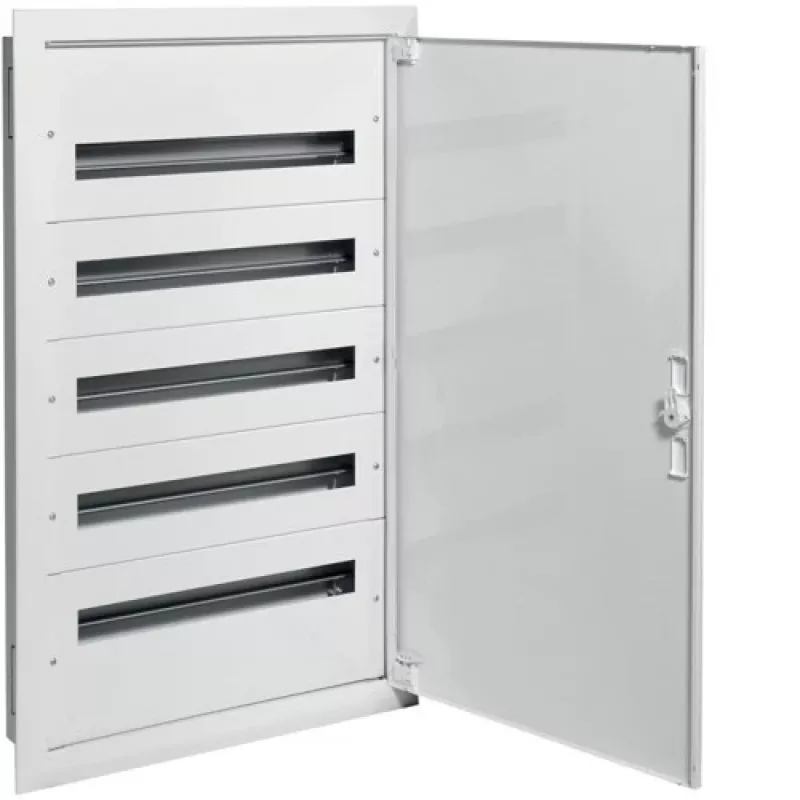

Electrical enclosure Hager FW524FT, IP30, dimensions 550×110×920 mm

Hager FW524FT is an indoor electrical enclosure with IP30 protection designed to house distribution equipment, DIN-rail devices and wiring assemblies. Its external dimensions are 550 mm (width) × 110 mm (depth) × 920 mm (height), and the enclosure is finished in white with a single-door design suitable for mounting on walls or in service cabinets where basic protection against solid objects is required.

Advantages

The enclosure provides a compact footprint for installation in limited spaces while offering clear internal volume for mounting modular devices on DIN rails. IP30 rating ensures protection against contact with tools and large solid objects in indoor environments. A single-door construction simplifies access for installation and maintenance, and the white finish supports straightforward integration into utility rooms, switchrooms or installations where neutral aesthetics are required.

Suitable for

Key specifications

How to use

Mount the Hager FW524FT enclosure on a suitable flat surface or within a service cabinet using appropriate fixings for the mounting substrate. Fit DIN rails and modular devices inside the enclosure according to applicable wiring diagrams and regulations. Route incoming and outgoing cables through designated cable entry points and secure conductors to terminal blocks or device terminals. Ensure that all earth and protective conductors are installed following local electrical codes. Close and secure the door after completing wiring to maintain the enclosure’s protection level.

Recommendations

Use the enclosure only in dry indoor environments where IP30 protection is adequate. Avoid exposure to dust-heavy or wet locations. Verify internal component spacing and cooling requirements before installing heat-generating devices, and ensure compliance with local electrical standards during installation.
