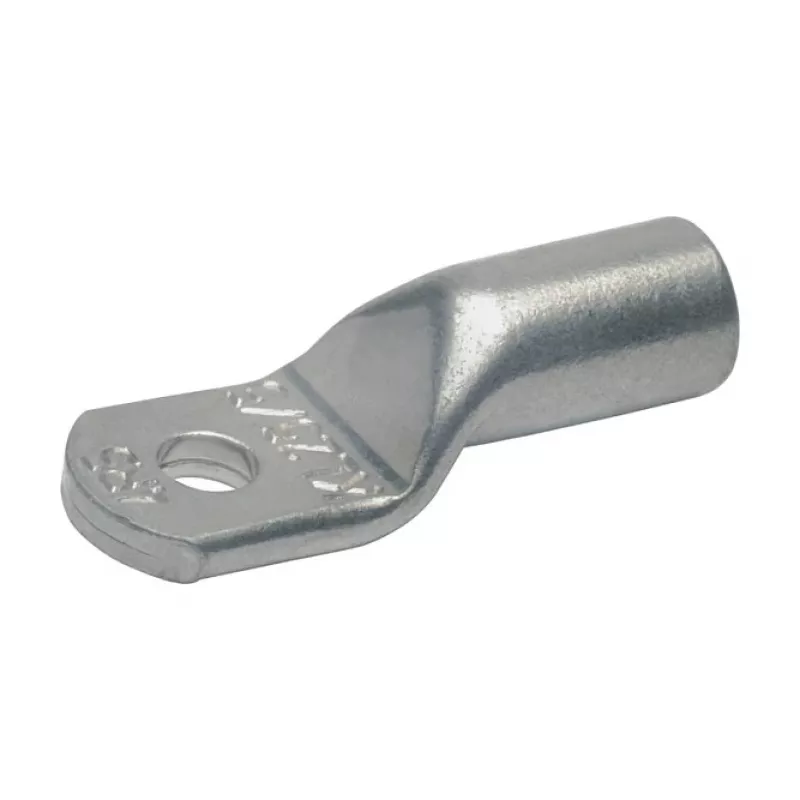

Gustav Klauke Copper Cable Lug 10R12 150 mm² M12 Crimp Connector

This Gustav Klauke cable lug is a high-quality crimp connector engineered for the reliable termination of stranded copper conductors. Designed for demanding electrical installations, it ensures a secure and durable connection for 150 mm² cables with an M12 bolt hole, making it an essential component for professional electricians and industrial maintenance teams.

Advantages

Manufactured from electrolytic copper (E-Cu), this cable lug delivers excellent electrical conductivity and mechanical strength. Its seamless barrel construction, combined with an inspection hole, allows for quick visual verification of proper conductor insertion. Compliant with DIN 46235, it guarantees standardized performance and dependability in a wide range of low-voltage applications.

Suitable for

• Terminating stranded copper conductors with a cross-section of 150 mm²
• Electrical panel wiring, switchgear, and industrial machinery connections
• Applications requiring a 12 mm bolt size (M12) for secure mounting
• Use in environments with ambient temperatures ranging from -55°C to +150°C

Key specifications

• Material: Electrolytic Copper (E-Cu), untreated/bare
• Conductor cross-section: 150 mm²
• Bolt hole diameter: 12 mm (M12)
• Connection type: Crimp
• Standard: DIN 46235
• Overall length: 78 mm
• Palm width: 28 mm
• Barrel outer diameter: 21 mm
• Palm thickness: 4.5 mm
• Rated voltage: Up to 1000 V
• Inspection hole: Yes

Recommendations

For optimal performance, use with a calibrated crimping tool suited for 150 mm² lugs and verify that the conductor is fully inserted before crimping. Always follow standard electrical safety procedures and local regulations during installation.
