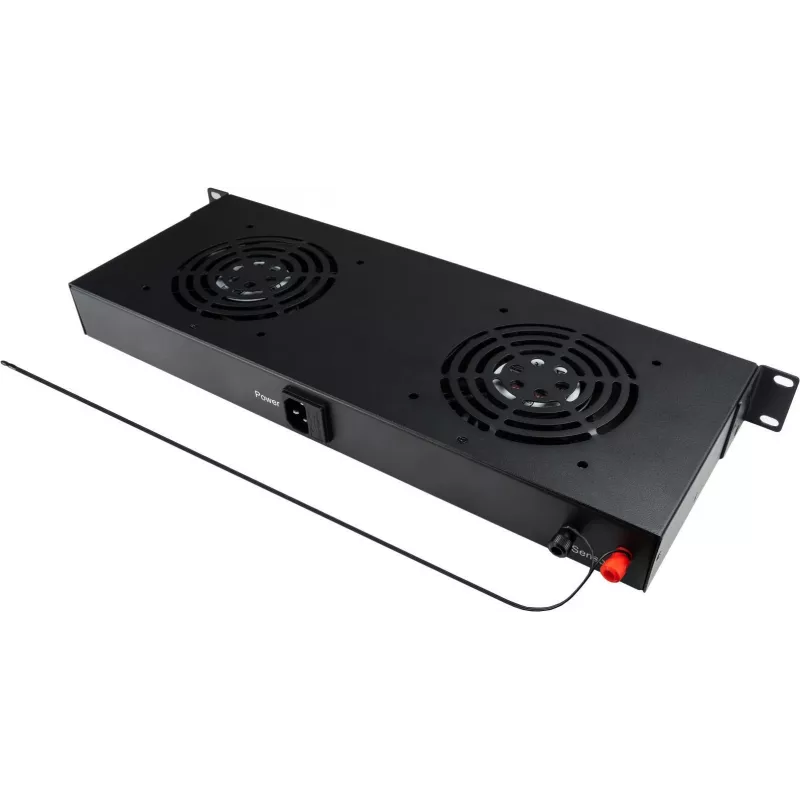

GoodConnections 19 inch Digital Fan Unit with Two Fans, Thermostat and Alarm Function (GC-N0163)

The GoodConnections GC-N0163 is a professional 19-inch digital fan unit designed for efficient cooling of server racks and network cabinets. Equipped with two axial fans, a digital thermostat, and integrated alarm functions, it ensures optimal operating temperatures and reliable system protection.

Advantages

This fan unit offers precise temperature control with an adjustable range of 0°C to 60°C, an external temperature sensor, and both over-temperature and fan failure alarms. The potential-free relay contact allows integration with external monitoring systems. Its 1U rackmount design saves space while delivering up to 200 m³/h total airflow.

Suitable for

• 19-inch server racks and network cabinets requiring active cooling
• IT environments where temperature monitoring and alarm notification are critical
• Integration into existing rack monitoring systems via relay output

Key specifications

• Rack compatibility: 19 inch, 1U
• Number of fans: 2 (axial)
• Control: Digital thermostat with LED display
• Temperature range: 0°C - 60°C
• Alarms: Over-temperature and fan failure (potential-free contact)
• Power input: 230V AC, 50/60Hz, approx. 20W
• Airflow: Approx. 200 m³/h total
• Noise level: Approx. 45 dB(A)
• Material: Sheet steel, colour black (RAL 9005)
• Sensor cable length: Approx. 2m

Recommendations

For optimal performance, mount the unit in a well-ventilated rack and ensure the external temperature sensor is placed in the hottest area. The relay output can be connected to a building management system or alarm panel for remote notification.
