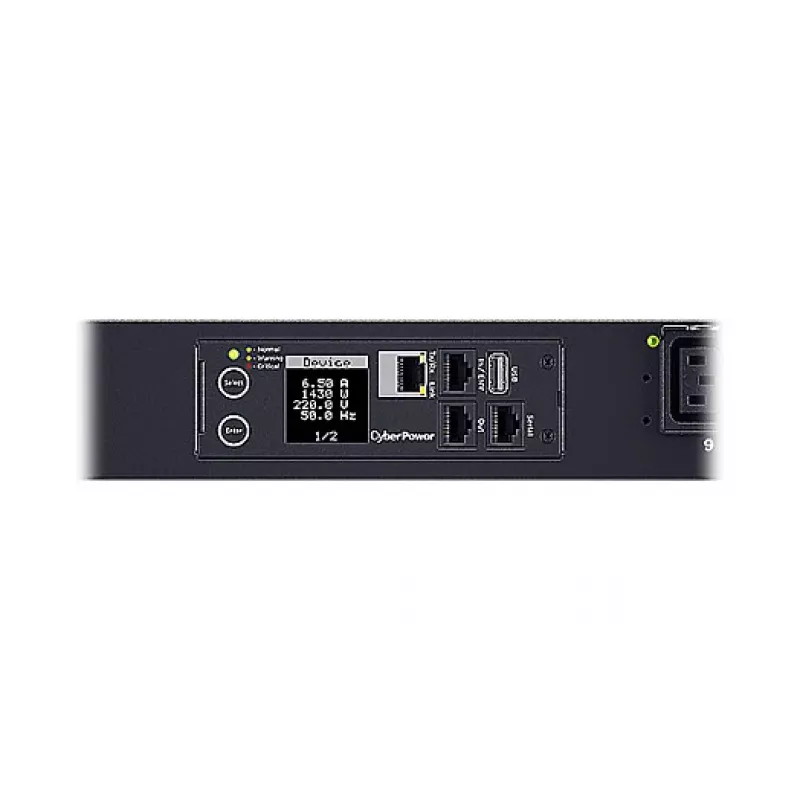

Power distribution unit CYBERPOWER PDU81404 — Metered/Monitored/Switched 24x C13/C19 outlets 0U Single-phase 200–240V 16A

CyberPower PDU81404 is a network-grade power distribution unit designed for data centers and enterprise racks. It provides 24 IEC power outlets in a vertical 0U form factor and supports real-time local and remote monitoring, individual outlet on/off control for remote reboot and scheduling, and daisy-chain management so multiple PDUs can be accessed under a single IP address. The unit includes a rotatable, color-configurable digital LCD, a hot-swappable Ethernet module compatible with PowerPanel power management software and a web interface, event logging, and support for optional environmental sensors via an RJ45 port. Firmware updates can be applied via the USB port.

Advantages

The PDU81404 combines metered, monitored and switched functions in one device to allow per-outlet control and measurement while maintaining centralized network management. Its daisy-chain capability reduces network configuration overhead by letting multiple PDUs be managed under one IP. Color-configurable, rotatable LCD and event logging simplify on-site monitoring and troubleshooting, while support for common network protocols and hot-swappable Ethernet module provides flexible integration into existing infrastructure.

Suitable for

• Data center and server rack power distribution where remote monitoring and per-outlet control are required
• Enterprise IT rooms needing scheduled outlet control and event notifications
• Environments that require consolidated management of multiple PDUs via daisy-chain

When it may not be suitable

This PDU is a single-phase, 200–240 V unit rated up to 16 A and therefore is not suitable for installations requiring three-phase power or higher input current capacity. It is intended for rack-mount vertical 0U deployments; if a different form factor or horizontal mounting is required, consider an alternative model.

Key specifications

• Outlet count and types: 24 IEC outlets (C13 and C19 couplers)
• Input voltage: 200–240 V nominal
• Maximum current: 16 A
• Input frequency: 50–60 Hz
• Form factor: Vertical 0U, metal enclosure, black finish
• Cable length: 3.05 m
• Weight: 7 kg
• Network support: IPv4/IPv6, SNMPv1/v3, HTTP/HTTPS, SSH, TLS and related protocols
• Display: Rotatable, color-configurable digital LCD
• Interfaces: Hot-swappable Ethernet module, USB port for firmware upgrade, RJ45 for optional environmental sensor
• Certifications: CE, EN 55032 Class A

How to use

Mount the PDU vertically in a compatible rack (0U). Connect the input power via the IEC 60309 plug to a suitable 200–240 V, 16 A supply. Use the LCD for local status and color coding of outlets; access the web interface or PowerPanel software through the Ethernet module for remote monitoring, per-outlet switching, scheduling and event logs. If managing multiple PDUs, enable daisy-chain connections so they are controlled under a single IP. Use the RJ45 environmental sensor port to add temperature and humidity monitoring if required. Apply firmware updates using the USB port according to the manufacturer instructions.

What to consider before purchase

• Ensure your facility provides single-phase 200–240 V power at up to 16 A per input
• Confirm rack compatibility for a vertical 0U PDU and available space for routing the 3.05 m cable
• Verify required outlet types and quantity (C13/C19) match your equipment
• Plan network integration and whether the hot-swappable Ethernet module and supported protocols meet your management requirements
• Decide if environmental monitoring (optional sensor) is needed

Recommendations

For reliable operation, connect the PDU to a dedicated 200–240 V, 16 A circuit, register and configure network settings before deployment, and keep firmware up to date using the USB port. Use the LCD color settings to mark critical loads and enable event notifications (email/SMS/SNMP) to respond quickly to power events.
