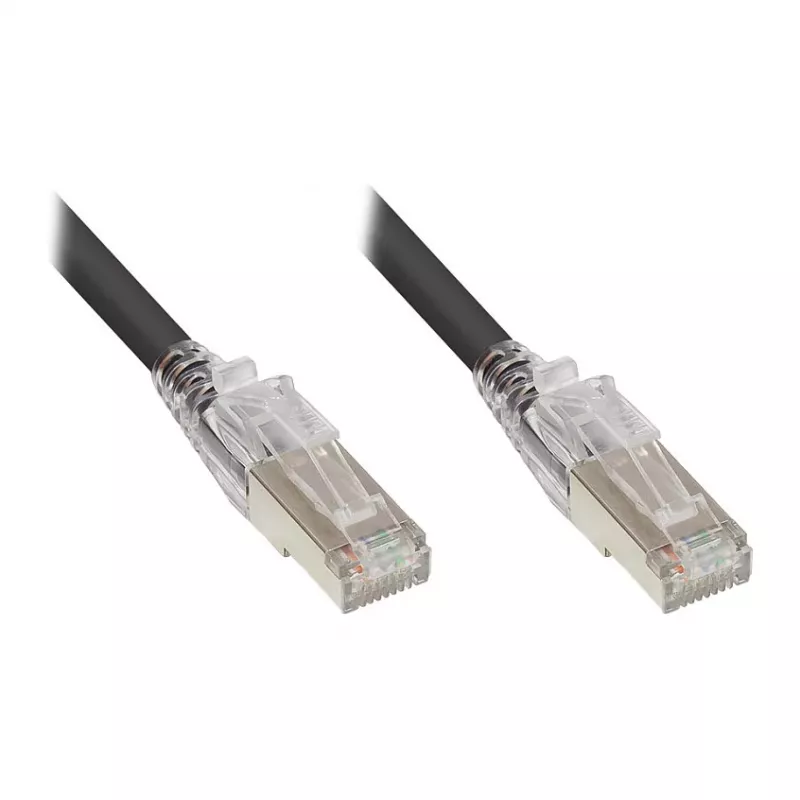

Good Connections RNS® Patch Cable with Latch Protection and Locking, Cat. 6A, S/FTP, PiMF, Halogen-Free (LSZH), 500MHz, Black, 0.5m

The Good Connections RNS® Patch Cable with Latch Protection and Locking is a high-performance Cat. 6A S/FTP cable designed for reliable 10 Gigabit Ethernet connections. With a length of 0.5 meters, it is ideal for short-distance patching in data centers and network cabinets. The cable features robust shielding (S/FTP with PiMF) to minimize crosstalk and external interference, ensuring stable data transmission up to 500 MHz. The innovative RNS® latch protection prevents the RJ45 connector latch from breaking, while the locking mechanism secures the connection against accidental disconnection. The halogen-free LSZH jacket makes it safe for use in enclosed spaces, reducing toxic smoke emissions in case of fire.

Advantages

• Reliable 10 Gigabit Ethernet performance with Cat. 6A specifications
• RNS® latch protection and locking mechanism for secure, durable connections
• Halogen-free LSZH jacket for safety in sensitive environments
• S/FTP shielding with PiMF for excellent EMI/RFI protection
• 0.5m length ideal for patch panels and short cable runs

Suitable for

• Data centers and server rooms
• Network cabinets and patch panels
• High-speed local area networks (LAN)
• PoE applications (Power over Ethernet)
• Industrial environments requiring robust shielding

Key specifications

• Cable Type: Patch Cable
• Category: Cat. 6A (Augmented Category 6)
• Shielding: S/FTP (Screened/Foiled Twisted Pair)
• Pair Shielding: PiMF (Pairs in Metal Foil)
• Bandwidth: 500 MHz
• Data Transfer Rate: Up to 10 Gbps
• Length: 0.5 m
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Halogen-free: Yes
• Connector: RJ45 Male to RJ45 Male
• Connector Features: RNS® Latch Protection, Locking Mechanism
• Color: Black
• Cable Construction: Stranded
• Wiring Standard: TIA/EIA-568B
• Impedance: 100 Ohm
• Number of Pairs: 4
• Compliance: RoHS

Recommendations

For optimal performance, use with Cat. 6A compatible network equipment. The locking mechanism ensures a secure connection in high-vibration environments. Suitable for 10GBASE-T networks.
