Name: Motherboard GIGABYTE Z890 AORUS MASTER AI TOP, Intel LGA 1851, ATX
Brand: GIGABYTE
Price: 8779.00 ZAR
Availability: InStock

Motherboard GIGABYTE Z890 AORUS MASTER AI TOP, Intel LGA 1851, ATX

36 mo.

Motherboard GIGABYTE Z890 AORUS MASTER AI TOP, Intel LGA 1851, ATX

0 reviews • Write a review

R8,779

+R33 Reward

Qty

Add to Cart

Add to Wish List Compare this Product

Stock 41 Code 111502 Brand GIGABYTE Model Z890 A MASTER AI TOP Warranty 3 Years

Shipping & Returns

Estimated delivery Thursday, October 1

You will be kept updated through our detailed tracking system

Payment options

EFTPayFastBank CardSnapScanZapperGoogle PayApple PayMobicredMoreTymePay on Arrival

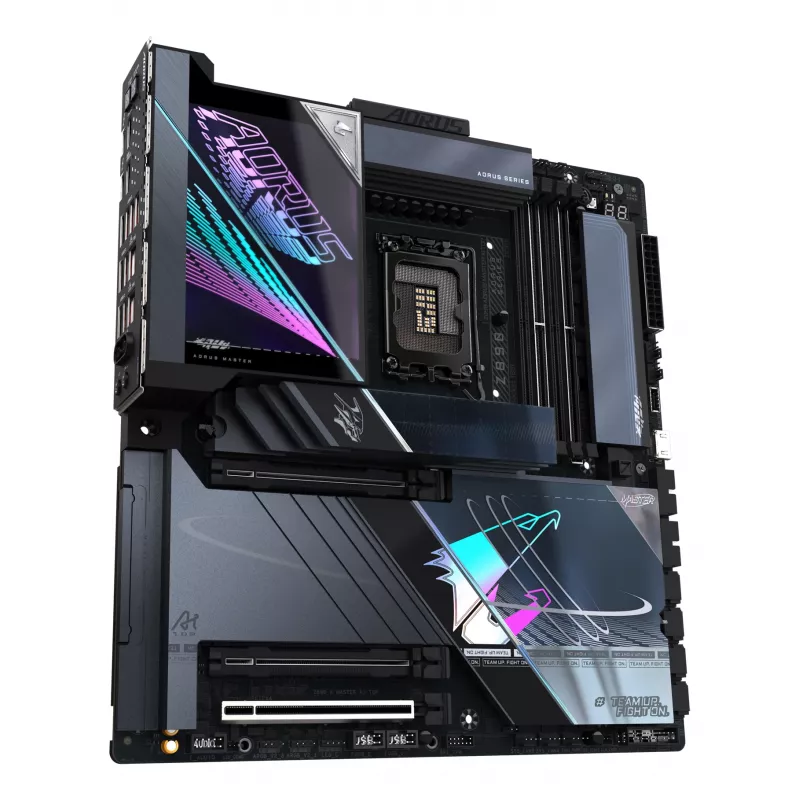

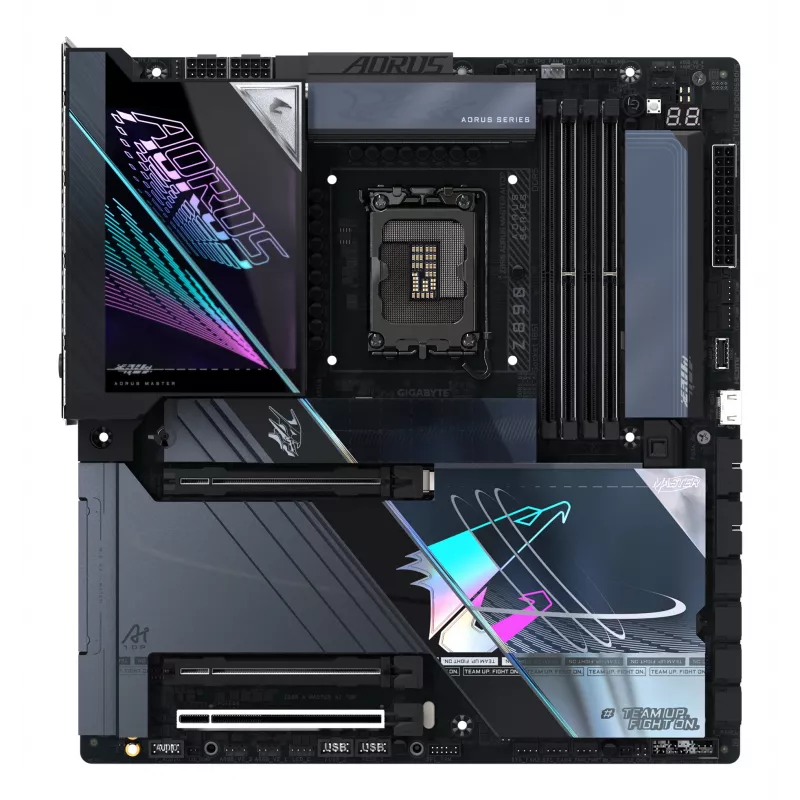

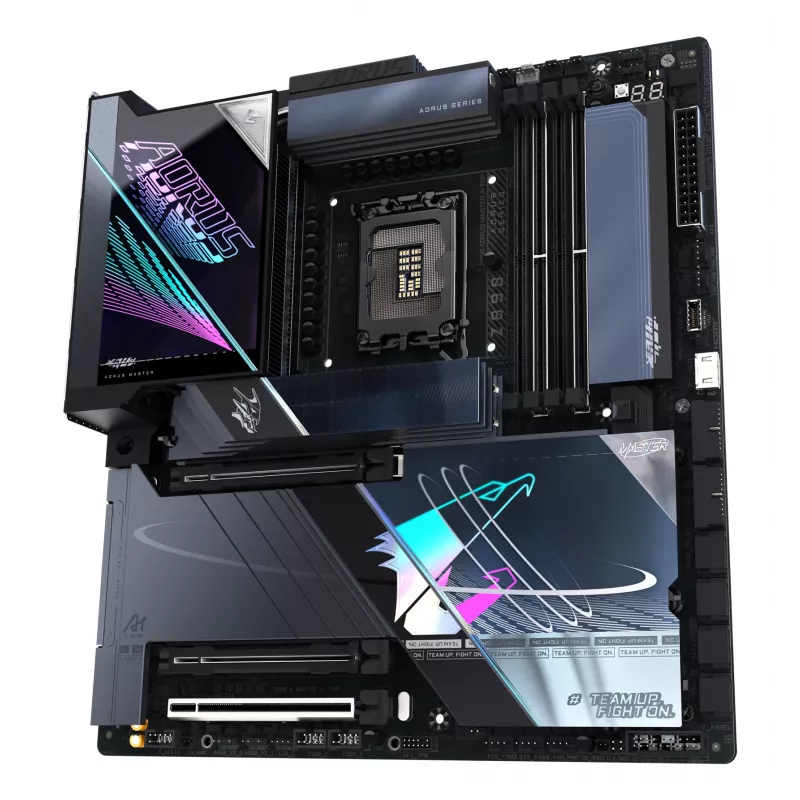

The GIGABYTE Z890 AORUS MASTER AI TOP is an Extended ATX motherboard designed for Intel Core Ultra (Series 2) processors using the LGA 1851 socket. Built on the Intel Z890 chipset, it provides a 20+1+2 phase VRM architecture, four DDR5 memory slots supporting up to 256 GB and overclocked speeds to 9500 MHz (OC), multiple PCIe 5.0 M.2 slots, integrated Wi‑Fi 7 and Thunderbolt 4 support for high-speed connectivity, and RAID support for flexible storage configurations.

Advantages

The board combines a robust power delivery system with high-frequency DDR5 support to sustain demanding workloads and overclocking. PCIe 5.0 M.2 compatibility and advanced I/O including Wi‑Fi 7 and Thunderbolt 4 enable fast expansion and peripheral connectivity. Its Extended ATX layout and feature set make it suitable for high-performance gaming, content creation, and professional workstations.

Suitable for

High-end gaming PCs
Content creation and video editing workstations
AI research and compute-heavy professional tasks
Users requiring fast storage and high-bandwidth peripherals

Key specifications

Form factor: Extended ATX
Chipset: Intel Z890
CPU socket: LGA 1851 (Socket V1) for Intel Core Ultra (Series 2)
VRM design: 20+1+2 phases
Memory: 4 × DDR5 slots, up to 256 GB, up to 9500 MHz (OC)
Storage: PCIe 5.0 M.2 slots; RAID support
Networking: Integrated Wi‑Fi 7
Connectivity: Thunderbolt 4 support
Weight: 3.76 kg

How to use

Install the motherboard into a compatible Extended ATX chassis, fit a supported LGA 1851 processor and DDR5 modules across the four memory slots following the motherboard manual for optimal channel configuration. Connect PCIe devices and M.2 storage in the designated slots, configure RAID in the BIOS if required, and attach power connectors from a PSU that meets the system’s power demands. Install necessary drivers and firmware updates from GIGABYTE to enable features such as Wi‑Fi 7 and Thunderbolt 4.

Recommendations

For stable overclocking and sustained heavy workloads, use high-quality cooling for both CPU and VRM components, ensure adequate case airflow for an Extended ATX build, and keep the BIOS and device drivers up to date. Verify memory QVL and use matched DDR5 modules to achieve advertised OC frequencies.

Key Highlights

Training your own AI on your desk
Supports Intel Core Ultra processors (Series 2)
Digital 20+1+2 phases VRM solution
Ultimate Scalibility : 2*PCIe 5.0 x16 slots for Multi-GPU and 4*PCIe 5.0/4.0 x4 M.2 slots
Next-gen Connectivity : Dual Thunderbolt™ 4 Type-C with DP-Alt

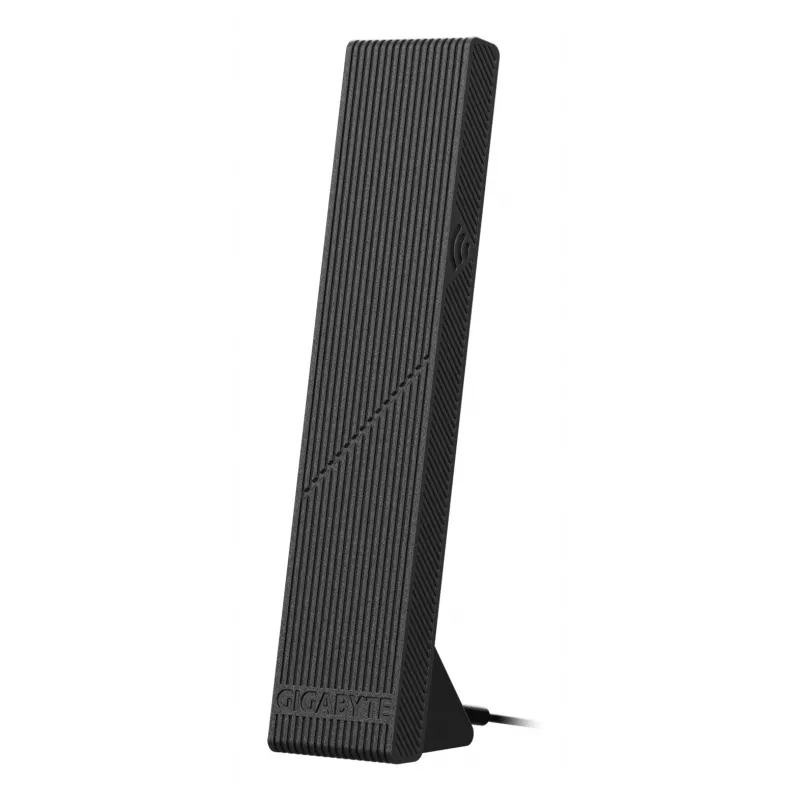

Blazing Fast Networks : Dual 10GbE LAN & Wi-Fi 7 & directional Ultra-high gain antenna
D5 Bionic Corsa for Infinite Memory Performance
AORUS AI Boost : Auto-Overclocking Software by AI models
AI Perfdrive : Provides optimal and customized BIOS preset profile for users
Premium Compatibility : 4*DDR5 with XMP Memory Module Support
Reinforced Overall Thermal : VRM Thermal Armor Advanced with I/O ZONE AORUS LIGHTING & M.2 Thermal Guard XL
Intel LGA 1851 (Socket V1) Intel Core Ultra (Series 2)
PC Extended ATX Intel Z890 2.0 channels
DDR5-SDRAM 4 DIMM Maximum internal memory: 256 GB
HDD & SSD M.2, SATA III RAID support Number of storage drives supported: 8
BIOS type: UEFI AMI 256 Mbit ACPI version: 5.0 Clear CMOS jumper Clear CMOS button
10 Gigabit Ethernet Wi-Fi Wi-Fi 7 (802.11be) Bluetooth 5.4

Specifications

1st M.2 highest PCI Express generation

5.0

1st M.2 largest key size

25110

2nd M.2 highest PCI Express generation

4.0

2nd M.2 largest key size

22110

3rd M.2 highest PCI Express generation

4.0

3rd M.2 largest key size

22110

4th M.2 highest PCI Express generation

4.0

4th M.2 largest key size

22110

ACPI version

5.0

Antenna included

Yes

ATX Power connector (24-pin)

Yes

Audio output channels

2.0 channels

Batteries included

Yes

Battery technology

Lithium-Manganese Dioxide (LiMnO2)

Battery type

CR2032

Battery weight

3 g

BIOS memory size

256 Mbit

BIOS type

UEFI AMI

Bluetooth

Yes

Bluetooth version

5.4

Bundled software

Norton® Internet Security (OEM version) LAN bandwidth management software

Clear CMOS button

Yes

Clear CMOS jumper

Yes

Compatible processor series

Intel Core Ultra (Series 2)

Component for

Country of origin

Taiwan

CPU fan connector

Yes

Depth

285 mm

Desktop Management Interface (DMI) version

2.7

DirectX version

12.0

DisplayPort version

2.1

DVI-D ports quantity

ECC сompatibility

ECC & Non-ECC

EPS power connector (8-pin)

Yes

Ethernet interface type

10 Gigabit Ethernet

Ethernet LAN

Yes

Ethernet LAN (RJ-45) ports

Front panel audio connector

Yes

Front panel connector

Yes

HDCP

Yes

HDMI ports quantity

Headphone outputs

Height

35 mm

LAN controller

Marvell AQtion AQC113C

Lithium weight per battery

0.07 g

Maximum internal memory

256 GB

Maximum internal memory per slot

64 GB

Maximum internal memory supported by processor

256 GB

Maximum resolution

5120 x 2880 pixels

Memory channels

Dual-channel

Memory slots type

DIMM

Microphone in

Yes

Motherboard chipset

Intel Z890

Motherboard chipset family

Intel

Motherboard form factor

Extended ATX

Number of battery cells

Number of chassis fan connectors

Number of CPU fan connectors

Number of EPS power connectors (8-pin)

Number of HDDs supported

Number of M.2 (M) slots

Number of memory slots

Number of noise detection headers

Number of RGB LED pin headers

Number of SATA III connectors

Number of storage drives supported

Number of temperature sensor headers

Number of water pump connectors

Package depth

335 mm

Package height

430 mm

Package weight

4.3 kg

Package width

400 mm

Parallel processing technology support

Not supported

PC health monitoring

Fan, Temperature, Voltage, Water cooling

PCI Express x16 (Gen 4.x) slots

PCI Express x16 (Gen 5.x) slots

Processor manufacturer

Intel

Processor socket

LGA 1851 (Socket V1)

Product colour

Black

Products per shipping (inner) case

1 pc(s)

RAID levels

0, 1, 5, 10

RAID support

Yes

RGB LED pin header

Yes

Screws included

Yes

Supported memory clock speed (max)

9500 MHz

Supported memory clock speeds

5600,5800,6000,6200,6400,6600,6800,7000,7200,7400,7600,7800,7900,7950,8000,8200,8266,8400,8600,9500 MHz

Supported memory module capacities

1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 24GB, 32GB, 40GB, 48GB, 64GB

Supported memory types

DDR5-SDRAM

Supported processor sockets

LGA 1851

Supported storage drive interfaces

M.2, SATA III

Supported storage drive types

HDD & SSD

System Management BIOS (SMBIOS) version

2.7

Thunderbolt ports quantity

Top Wi-Fi standard

Wi-Fi 7 (802.11be)

TPM connector

Yes

Unbuffered memory

Yes

USB 2.0 connectors

USB 2.0 ports quantity

USB 3.2 Gen 1 (3.1 Gen 1) connectors

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

USB 3.2 Gen 2 (3.1 Gen 2) connectors

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

USB 3.2 Gen 2x2 connectors

VGA (D-Sub) ports quantity

Warranty period

3 year(s)

Weight

3.76 kg

Wi-Fi

Yes

Wi-Fi standards

802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)

Width

305 mm

WiFi-AP antenna jack

Windows operating systems supported

Windows 11 x64

WLAN controller model

Intel Wi-Fi 7 BE200

Manual

Open Manual

Leaflet

Open Leaflet
