Motherboard GIGABYTE Z890 AERO G, Intel Z890, LGA 1851, ATX

Motherboard GIGABYTE Z890 AERO G, Intel Z890, LGA 1851, ATX
Motherboard GIGABYTE Z890 AERO G, Intel Z890, LGA 1851, ATX
Motherboard GIGABYTE Z890 AERO G, Intel Z890, LGA 1851, ATX
Motherboard GIGABYTE Z890 AERO G, Intel Z890, LGA 1851, ATX
Motherboard GIGABYTE Z890 AERO G, Intel Z890, LGA 1851, ATX
36 mo.
Motherboard GIGABYTE Z890 AERO G, Intel Z890, LGA 1851, ATX
Motherboard GIGABYTE Z890 AERO G, Intel Z890, LGA 1851, ATX
Motherboard GIGABYTE Z890 AERO G, Intel Z890, LGA 1851, ATX
Motherboard GIGABYTE Z890 AERO G, Intel Z890, LGA 1851, ATX
Motherboard GIGABYTE Z890 AERO G, Intel Z890, LGA 1851, ATX
R6,371

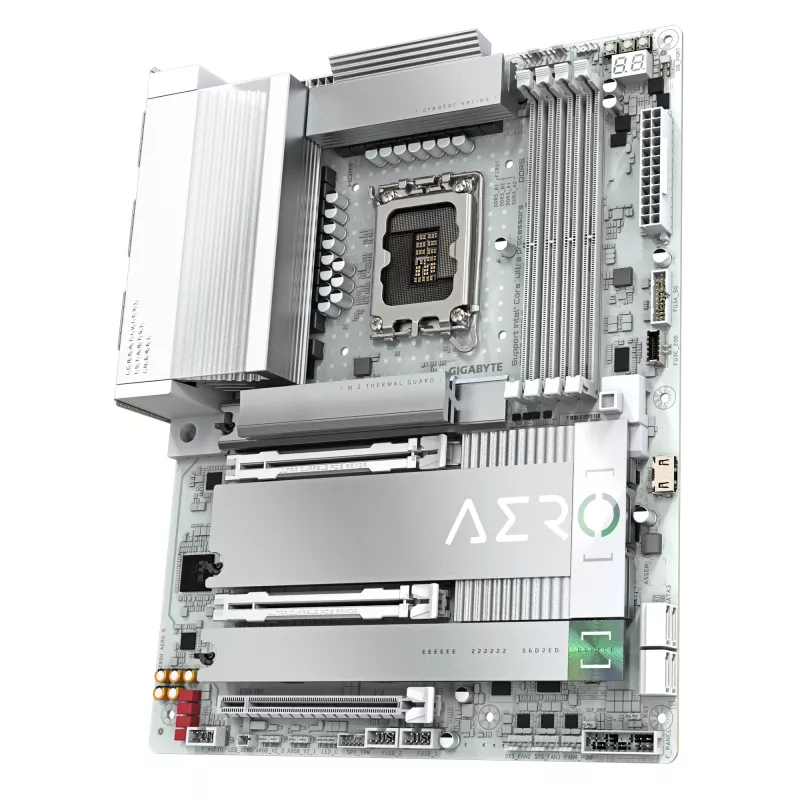

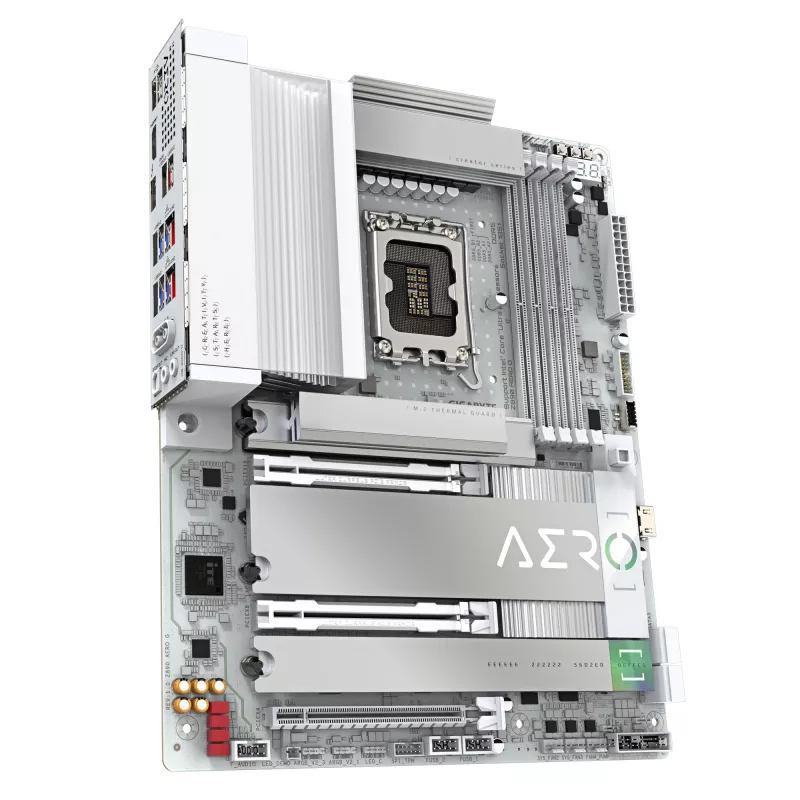

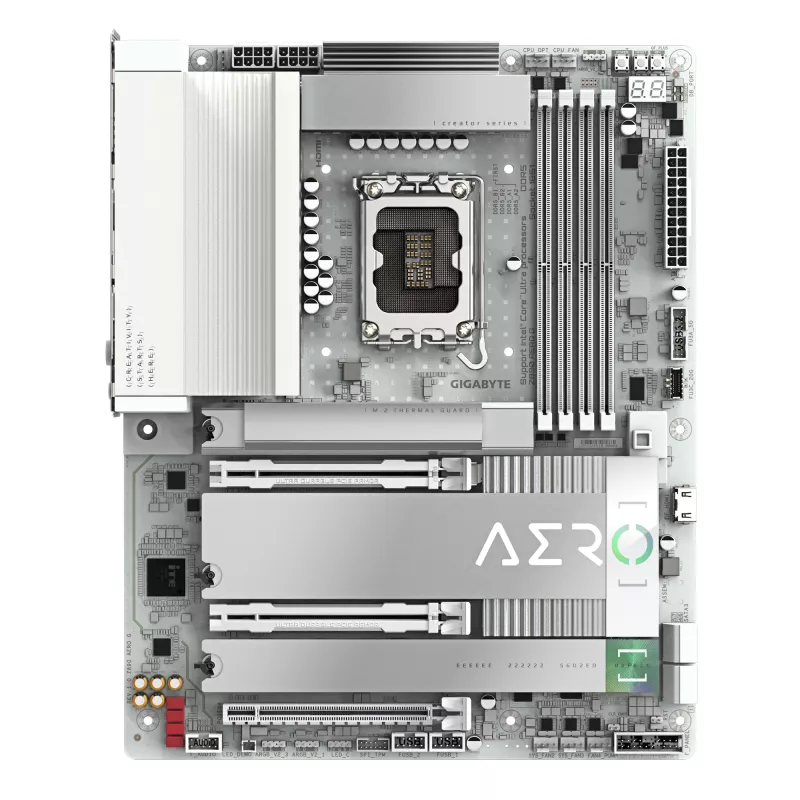

The GIGABYTE Z890 AERO G is an ATX motherboard designed for high-performance PC builds, compatible with Intel Core Ultra (Series 2) processors in the LGA 1851 (Socket V1) format. It features a 16+1+2 phase VRM design, support for DDR5 memory up to 8800 MHz (OC), four memory slots with a maximum inte... Read More
Stock 8 Code 29954 Brand GIGABYTE Model Z890 AERO G Warranty 3 Years

Shipping & Returns

Estimated delivery Tuesday, October 6
You will be kept updated through our detailed tracking system
Payment options
EFTPayFastBank CardSnapScanZapperGoogle PayApple PayMobicredMoreTymePay on Arrival

The GIGABYTE Z890 AERO G is an ATX motherboard designed for high-performance PC builds, compatible with Intel Core Ultra (Series 2) processors in the LGA 1851 (Socket V1) format. It features a 16+1+2 phase VRM design, support for DDR5 memory up to 8800 MHz (OC), four memory slots with a maximum internal memory of 256 GB, one PCIe 5.0 slot and four PCIe 4.0 slots, plus modern connectivity including Wi‑Fi 7, 2.5GbE LAN and Thunderbolt 4. The board supports both HDD and SSD storage options and is intended for users requiring a stable, feature-rich platform for demanding workloads.

Advantages

The motherboard provides robust power delivery through its 16+1+2 phase VRM for stable CPU operation under heavy load. High-speed DDR5 memory support and multiple PCIe slots allow for flexible expansion and improved system responsiveness. Integrated connectivity such as Wi‑Fi 7, 2.5GbE LAN and Thunderbolt 4 enables fast networking and peripheral compatibility. As an ATX board, it offers a wide range of ports and slots suitable for high-performance components and upgrades.

Suitable for

  • Gaming rigs requiring high CPU and memory performance
  • Content creation workstations (video editing, 3D rendering)
  • Professional desktops for software development and engineering
  • Custom PC builds needing multiple expansion cards and fast connectivity

Key specifications

  • Form factor: ATX
  • Processor socket: LGA 1851 (Socket V1) — Intel Core Ultra (Series 2) support
  • VRM design: 16+1+2 phases
  • Memory: 4 x DDR5 slots, up to 256 GB, up to 8800 MHz (OC)
  • Expansion slots: 1 x PCIe 5.0, 4 x PCIe 4.0
  • Connectivity: Wi‑Fi 7, 2.5GbE LAN, Thunderbolt 4
  • Storage: supports HDD and SSD
  • Weight: 2.29 kg

How to use

Install the motherboard into a compatible ATX chassis, mount an LGA 1851 CPU and attach the appropriate CPU cooler following the cooler manufacturer's instructions. Populate DDR5 memory modules into the four DIMM slots according to the motherboard's manual for dual- or quad-channel configurations. Connect storage devices (HDD/SSD) to the available SATA or M.2 interfaces and install expansion cards into PCIe slots as needed. Attach the power supply cables, front panel connectors and external I/O cables, then configure firmware settings (BIOS/UEFI) to enable desired features such as XMP/DOCP for memory overclocking and Thunderbolt settings.

Recommendations

For stable performance, use a high-quality power supply unit and an adequate CPU cooler. Update the motherboard BIOS/UEFI to the latest version before installing the operating system and drivers. Follow GIGABYTE's memory compatibility list and installation guidance to achieve reliable DDR5 overclocking and system stability.
Key Highlights
  • Digital 16+1+2+1 Phases 80A SPS VRM with Tantalum Polymer Capacitor
  • Reinforced PCIe UD Slot X PCIe 5.0 with PCIe EZ-Latch Plus Design
  • PCIe M.2 design (Up to 25110) with M.2 EZ-Latch Plus & Thermal Guard
  • Fully Covered MOSFET Heatsinks with heatpipe/M.2 EZ-Latch Click Design
  • Intel 2x2 Wi-Fi 7 BE202 with WIFI EZ-Plug Design
  • Dual Intel 2.5GbE LAN, THUNDERBOLT 4 Type-C, USB 3.2 Gen2x2 Type-C
  • Dual 10GbE LAN, Thunderbolt 4 Type-C, USB 3.2 Gen2x2 Type-C
  • Intel LGA 1851 (Socket V1) Intel Core Ultra (Series 2)
  • PC ATX Intel Z890 Express Realtek ALC1220 7.1 channels
  • DDR5-SDRAM 4 DIMM Maximum internal memory: 256 GB
  • HDD & SSD M.2, SATA III RAID support Number of storage drives supported: 4
  • BIOS type: UEFI AMI 256 Mbit ACPI version: 5.0 Clear CMOS jumper Clear CMOS button
  • 2.5 Gigabit Ethernet Wi-Fi Wi-Fi 7 (802.11be) Bluetooth 5.4
Specifications
12V power connector
Yes
ACPI version
5.0
ATX Power connector (24-pin)
Yes
Audio chip
Realtek ALC1220
Audio output channels
7.1 channels
Batteries included
Yes
Battery technology
Lithium-Manganese Dioxide (LiMnO2)
Battery type
CR2032
Battery weight
3 g
BIOS memory size
256 Mbit
BIOS type
UEFI AMI
Bluetooth
Yes
Bluetooth version
5.4
Bundled software
Norton® Internet Security (OEM version) LAN bandwidth management software
Clear CMOS button
Yes
Clear CMOS jumper
Yes
Compatible processor series
Intel Core Ultra (Series 2)
Component for
PC
Country of origin
China
Depth
244 mm
Desktop Management Interface (DMI) version
2.7
DirectX version
12.0
DisplayPorts quantity
2
DVI-D ports quantity
0
ECC сompatibility
Non-ECC
EPS power connector (8-pin)
Yes
Ethernet interface type
2.5 Gigabit Ethernet
Ethernet LAN
Yes
Ethernet LAN (RJ-45) ports
1
HDMI ports quantity
1
Height
35 mm
Lithium weight per battery
0.07 g
Maximum internal memory
256 GB
Memory channels
Dual-channel
Memory slots type
DIMM
Microphone in
Yes
Motherboard chipset
Intel Z890 Express
Motherboard chipset family
Intel
Motherboard form factor
ATX
Number of battery cells
1
Number of HDDs supported
9
Number of M.2 (M) slots
5
Number of memory slots
4
Number of SATA III connectors
4
Number of storage drives supported
4
Package depth
270 mm
Package height
80 mm
Package weight
2.61 kg
Package width
335 mm
PC health monitoring
Fan, Temperature, Voltage
Processor manufacturer
Intel
Processor socket
LGA 1851 (Socket V1)
Product colour
White
Products per shipping (inner) case
1 pc(s)
RAID levels
0, 1, 5, 10
RAID support
Yes
RGB LED pin header
Yes
S/PDIF out port
Yes
Supported memory clock speed (max)
8800 MHz
Supported memory clock speeds
5600,5800,6000,6200,6400,6600,6800,7000,7200,7400,7600,7800,7900,7950,8000,8200,8266,8400,8600,8800 MHz
Supported memory module capacities
1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 24GB, 32GB, 40GB, 48GB, 64GB
Supported memory types
DDR5-SDRAM
Supported processor sockets
LGA 1851
Supported storage drive interfaces
M.2, SATA III
Supported storage drive types
HDD & SSD
System Management BIOS (SMBIOS) version
2.7
Thunderbolt ports quantity
1
Top Wi-Fi standard
Wi-Fi 7 (802.11be)
Total number of SATA connectors
4
TPM connector
Yes
USB 2.0 connectors
2
USB 2.0 ports quantity
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) connectors
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
0
USB 3.2 Gen 2x2 connectors
1
VGA (D-Sub) ports quantity
0
Warranty period
3 year(s)
Weight
2.29 kg
Wi-Fi
Yes
Wi-Fi standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)
Width
305 mm
WLAN controller model
Intel Wi-Fi 7 BE202

Manual

Open Manual

Leaflet

Open Leaflet
