GIGABYTE P850GM power supply unit 850 W 20+4 pin ATX ATX Black

GIGABYTE P850GM power supply unit 850 W 20+4 pin ATX ATX Black
GIGABYTE P850GM power supply unit 850 W 20+4 pin ATX ATX Black
GIGABYTE P850GM power supply unit 850 W 20+4 pin ATX ATX Black
GIGABYTE P850GM power supply unit 850 W 20+4 pin ATX ATX Black
GIGABYTE P850GM power supply unit 850 W 20+4 pin ATX ATX Black
GIGABYTE P850GM power supply unit 850 W 20+4 pin ATX ATX Black
GIGABYTE P850GM power supply unit 850 W 20+4 pin ATX ATX Black
GIGABYTE P850GM power supply unit 850 W 20+4 pin ATX ATX Black
GIGABYTE P850GM power supply unit 850 W 20+4 pin ATX ATX Black
GIGABYTE P850GM power supply unit 850 W 20+4 pin ATX ATX Black
GIGABYTE P850GM power supply unit 850 W 20+4 pin ATX ATX Black
GIGABYTE P850GM power supply unit 850 W 20+4 pin ATX ATX Black
GIGABYTE P850GM power supply unit 850 W 20+4 pin ATX ATX Black
GIGABYTE P850GM power supply unit 850 W 20+4 pin ATX ATX Black
R2,582
FULLY MODULAR DESIGNAll the black flat cables are modular design. Installing only the cables you need to reduce clutter, to increase the airflow and to improve the chassis thermal performance.80 PLUS GOLD CERTIFIED80 Plus Gold certified ensures to deliver 90% efficiency at 50% load. The better power... Read More
Stock Out Of StockNo Stock Code 2556207 Brand GIGABYTE Model GP-P850GM Warranty 2 Years

Shipping & Returns

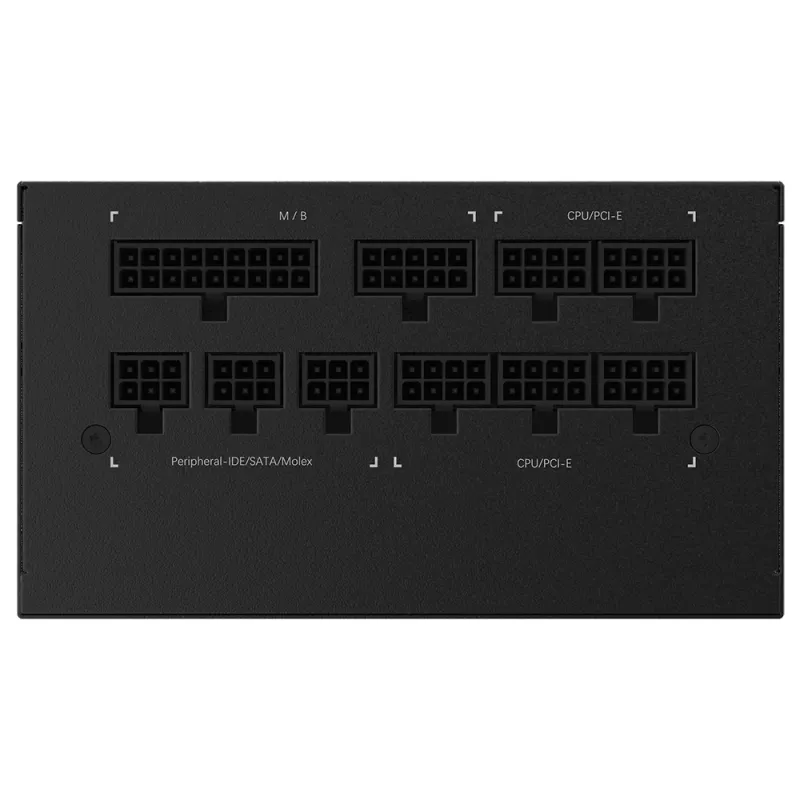

FULLY MODULAR DESIGN
All the black flat cables are modular design. Installing only the cables you need to reduce clutter, to increase the airflow and to improve the chassis thermal performance.

80 PLUS GOLD CERTIFIED
80 Plus Gold certified ensures to deliver 90% efficiency at 50% load. The better power efficiency leads to less power waste, less heat and less fan noise. And with the support of Intel processors, it will save more energy and more money.

HIGH QUALITY JAPANESE CAPACITORS
The main capacitors are high quality Japanese capacitors, to produce the efficient performance and to ensure the longer reliability.

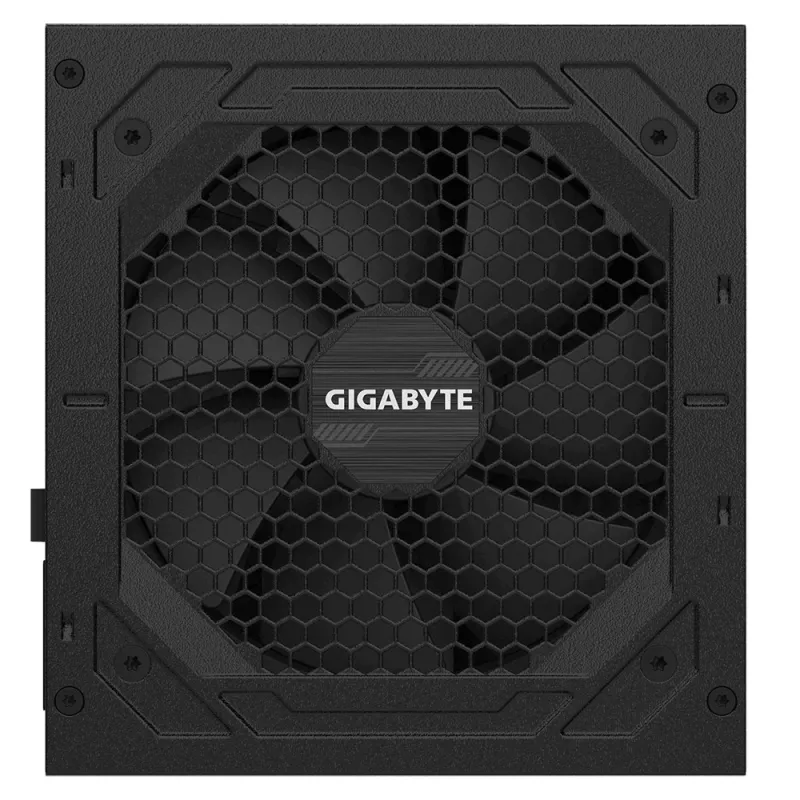

120MM SMART HYDRAULIC BEARING (HYB) FAN
The fan speed is adjusted according to the automatic power detection and will stop when the system is idle or under low load (less than 20% load). The Hydraulic Bearing fan provides longer and more stable life time.

SINGLE +12V RAIL
Single +12V rail provides the best power output, stability and compatibility for the hardware. It provides the easiest way to install the power cable. And it is the best design for overclocking.

PROTECTION
In order to make sure the entire computer system to operate stably under any conditions, we not only added protection designs such as OCP, OTP, OVP, OPP, UVP and SCP, but also ensured the stable operation of your system through the safety certification of various countries.

DIMENSIONS
Compact size to fit any small chassis.
Key Highlights
  • 80 PLUS Gold certified
  • Fully modular design
  • 120mm Smart Hydraulic Bearing (HYB) Fan
  • Main Japanese capacitors
  • Powerful single +12V rail
  • OVP/OPP/SCP/UVP/OCP/OTP protection
  • Compact size
  • 850 W 100 - 240 V 50 - 60 Hz
  • Motherboard power connector: 20+4 pin ATX
  • PC ATX 80 PLUS Gold
  • Active 12 cm
  • Black
Specifications
80 PLUS certification
80 PLUS Gold
AC input frequency
50 - 60 Hz
AC input voltage
100 - 240 V
ATX power connector (20+4 pin)
Yes
ATX version
2.31
Cabling type
Fully-Modular
Combined power (+12V)
846 W
Combined power (+3.3V)
120 W
Combined power (+5V)
120 W
Combined power (+5Vsb)
15 W
Combined power (-12V)
3.6 W
Cooling type
Active
CPU power cable length
60 cm
CPU power connector (4+4 pin)
Yes
Depth
140 mm
Efficiency
90%
Fan diameter
12 cm
Fan location
Top
Floppy disk drive cable length
89 cm
Floppy disk drive connector
Yes
Floppy drive power connector
2
Harmonized System (HS) code
84733020
Height
86 mm
Hold time
16 ms
Max output current (+12V)
70.5 A
Max output current (+3.3V)
20 A
Max output current (+5V)
20 A
Max output current (+5Vsb)
3 A
Max output current (-12V)
0.3 A
Maximum input current (@110V)
12 A
Maximum input current (@220V)
6 A
Mean time between failures (MTBF)
100000 h
Motherboard power cable length
61 cm
Motherboard power connector
20+4 pin ATX
Number of fans
1 fan(s)
Number of SATA power connectors
8
On/off switch
Yes
Package type
Box
PCI Express power cable length
75 cm
PCI Express power connectors (6+2 pin)
4
Peripheral (Molex) power connectors (4-pin)
3
Power factor
0.9
Power Factor Correction (PFC) type
Active
Power protection features
Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage
Power supply unit (PSU) form factor
ATX
Product colour
Black
Purpose
PC
SATA power cable length
600,750,900 mm
Total power
850 W
Width
150 mm

Manual

Open Manual

Leaflet

Open Leaflet
