Motherboard Gigabyte Q870M D3H Q870 LGA1700 Micro ATX

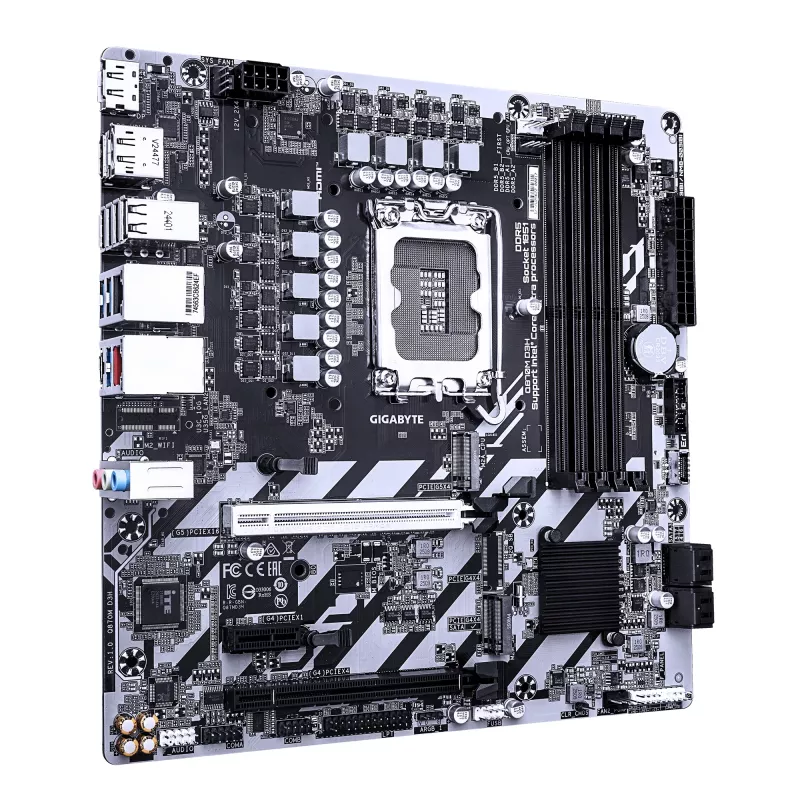

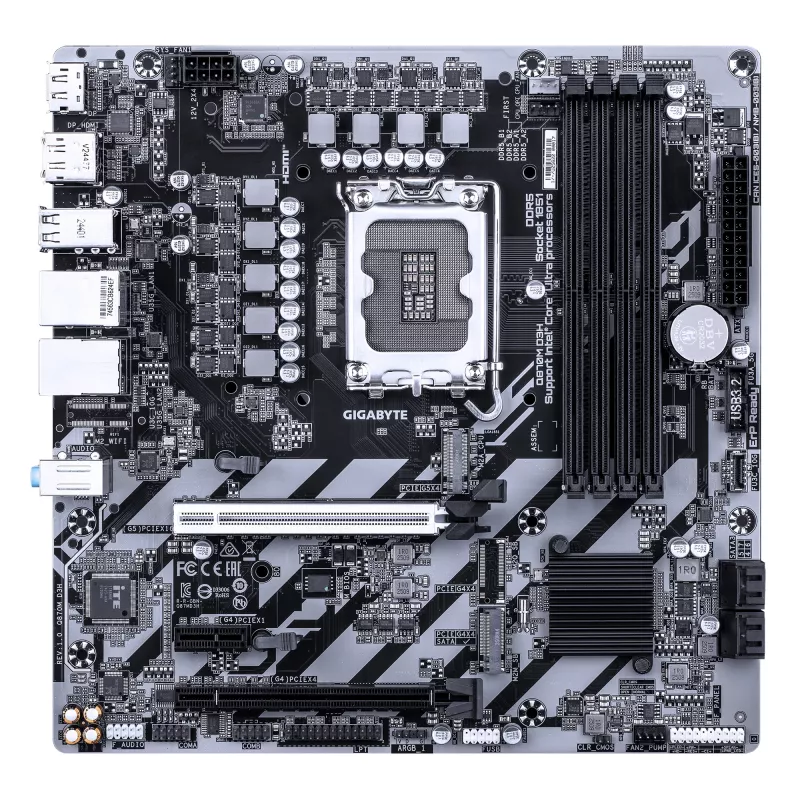

The Gigabyte Q870M D3H is a Micro ATX motherboard for Intel LGA1700 processors, built on the Q870 chipset. It supports multiple storage configurations with up to four SATA ports and three M.2 slots, offering flexible options for HDDs, SATA SSDs and NVMe drives. The board includes expanded connectivity and expansion possibilities in a compact Micro ATX form factor, making it suitable for space-constrained builds that require reliable everyday performance and moderate gaming capability.

Advantages

The motherboard provides multiple high-speed storage options through three M.2 slots and four SATA ports, enabling combined use of NVMe and SATA drives for fast boot and large-capacity storage. Compact Micro ATX design allows installation in smaller cases without sacrificing core connectivity. The Q870 chipset supports modern platform features and offers stable power delivery for typical desktop workloads. Integrated connectivity includes multiple USB ports, networking options and PCIe expansion for discrete graphics or add-in cards.

Suitable for

• Compact desktop builds for home or office use
• Mid-range gaming systems with a single discrete GPU
• Workstations requiring multiple storage devices (NVMe + SATA)
• Upgrading to Intel LGA1700 platform in Micro ATX chassis

Key specifications

• Form factor: Micro ATX
• Processor socket: Intel LGA1700
• Chipset: Q870
• Memory: Dual-channel DDR4 support (check supported speeds with CPU)
• Storage: 3x M.2 slots and 4x SATA III ports
• Expansion: PCIe slots for discrete graphics and add-in cards
• Networking: Onboard Ethernet LAN

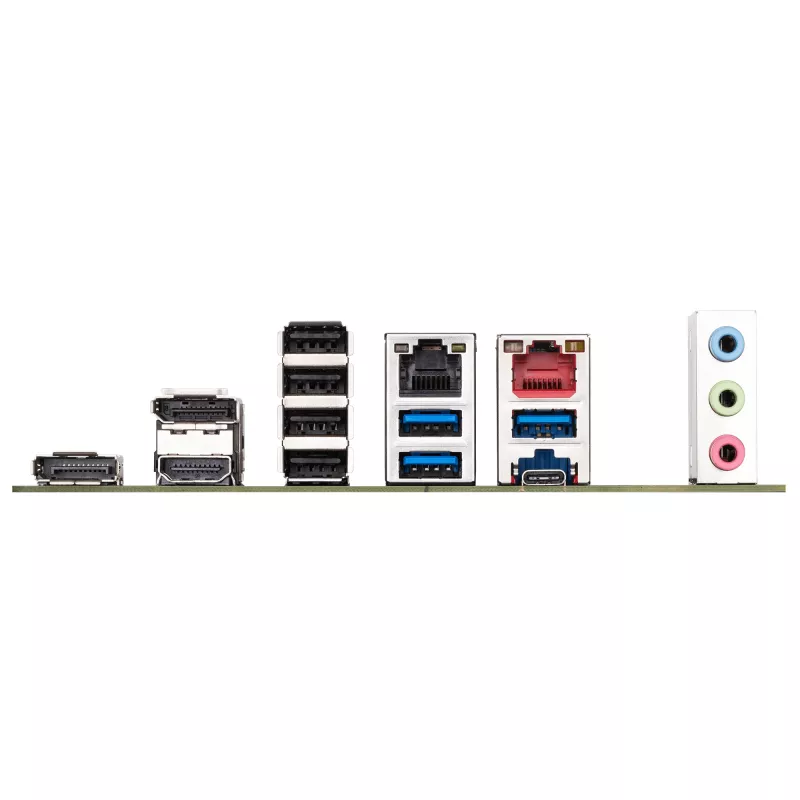

• USB: Multiple rear and internal USB headers (Type-A and internal headers)

How to use

Install the Gigabyte Q870M D3H into a compatible Micro ATX case with an Intel LGA1700 CPU and DDR4 memory according to the motherboard manual. Mount storage devices into M.2 slots or connect SATA drives to the SATA III ports. Attach the power supply cables to the ATX and CPU power connectors, install a compatible CPU cooler and connect front panel, USB and audio headers to the case connectors. Configure UEFI/BIOS settings at first boot to ensure correct boot order and storage modes (AHCI/RAID) and update firmware if needed for optimal compatibility.

Recommendations

For balanced performance, use at least one NVMe SSD in an M.2 slot for the operating system and a SATA drive for bulk storage. Ensure adequate case airflow and a suitable CPU cooler for sustained workloads. When installing multiple M.2 devices, consult the manual for any shared lanes or slot-specific limitations to maintain optimal throughput.
