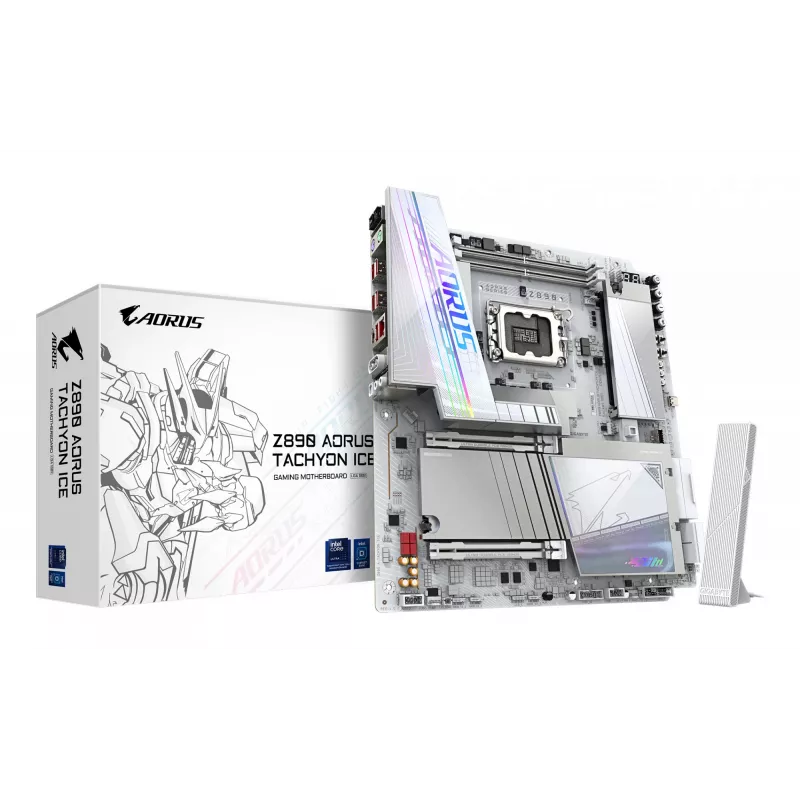

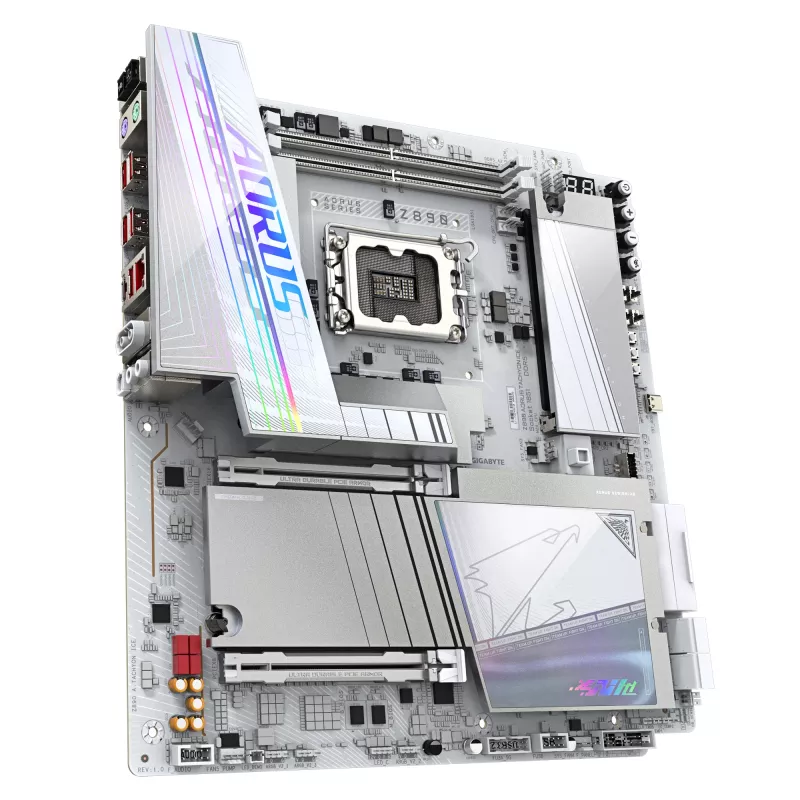

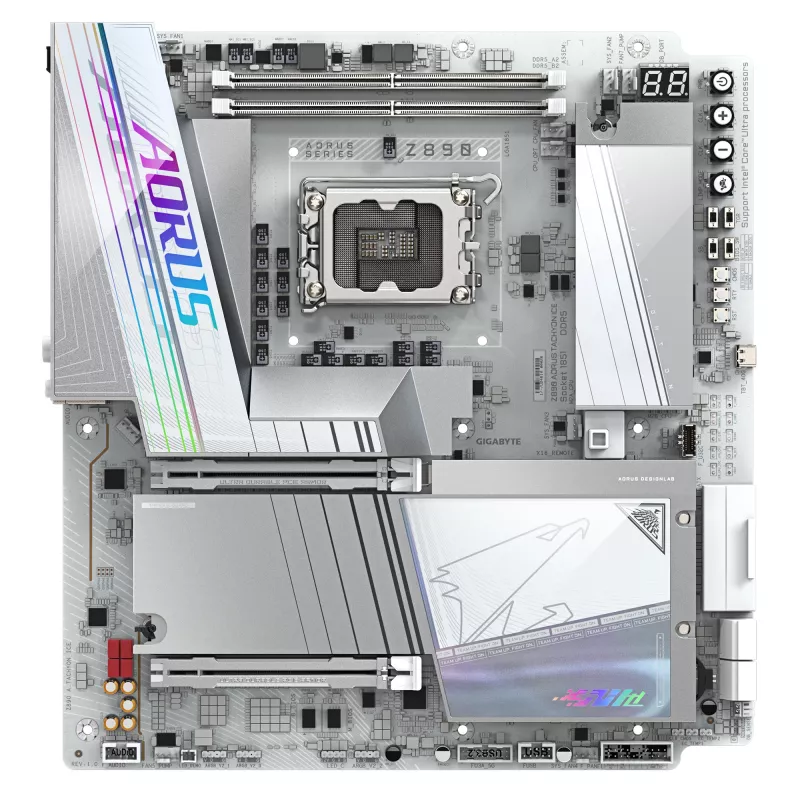

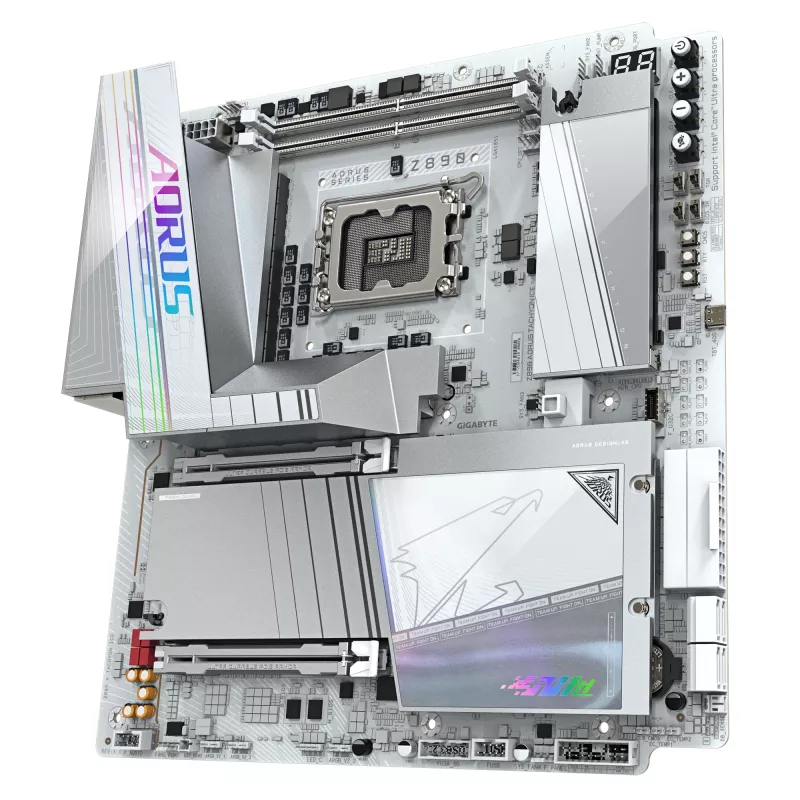

Motherboard Gigabyte AORUS Z890 TACHYON ICE - Z890 Chipset - LGA1851 - E-ATX

Motherboard Gigabyte AORUS Z890 TACHYON ICE - Z890 Chipset - LGA1851 - E-ATX
Motherboard Gigabyte AORUS Z890 TACHYON ICE - Z890 Chipset - LGA1851 - E-ATX
Motherboard Gigabyte AORUS Z890 TACHYON ICE - Z890 Chipset - LGA1851 - E-ATX
Motherboard Gigabyte AORUS Z890 TACHYON ICE - Z890 Chipset - LGA1851 - E-ATX
Motherboard Gigabyte AORUS Z890 TACHYON ICE - Z890 Chipset - LGA1851 - E-ATX
Motherboard Gigabyte AORUS Z890 TACHYON ICE - Z890 Chipset - LGA1851 - E-ATX
36 mo.
Motherboard Gigabyte AORUS Z890 TACHYON ICE - Z890 Chipset - LGA1851 - E-ATX
Motherboard Gigabyte AORUS Z890 TACHYON ICE - Z890 Chipset - LGA1851 - E-ATX
Motherboard Gigabyte AORUS Z890 TACHYON ICE - Z890 Chipset - LGA1851 - E-ATX
Motherboard Gigabyte AORUS Z890 TACHYON ICE - Z890 Chipset - LGA1851 - E-ATX
Motherboard Gigabyte AORUS Z890 TACHYON ICE - Z890 Chipset - LGA1851 - E-ATX
Motherboard Gigabyte AORUS Z890 TACHYON ICE - Z890 Chipset - LGA1851 - E-ATX
R11,553
The Gigabyte AORUS Z890 TACHYON ICE is an E-ATX motherboard built on the Z890 chipset with an LGA1851 CPU socket. It supports modern high-bandwidth peripheral standards including USB-C 3.2 Gen 2x2, USB-C 3.2 Gen 2, USB 3.2 Gen 1 and USB4, and provides integrated wireless connectivity with Bluetooth ... Read More
Stock 6 Code 1432020 Brand GIGABYTE Model Z890 A TACHYON ICE Warranty 3 Years

Shipping & Returns

Estimated delivery Tuesday, October 6
You will be kept updated through our detailed tracking system
Payment options
EFTPayFastBank CardSnapScanZapperGoogle PayApple PayMobicredMoreTymePay on Arrival

The Gigabyte AORUS Z890 TACHYON ICE is an E-ATX motherboard built on the Z890 chipset with an LGA1851 CPU socket. It supports modern high-bandwidth peripheral standards including USB-C 3.2 Gen 2x2, USB-C 3.2 Gen 2, USB 3.2 Gen 1 and USB4, and provides integrated wireless connectivity with Bluetooth and Wi‑Fi 7. Multiple high-speed wired networking ports (5 Gigabit Ethernet) and support for onboard graphics via a compatible CPU expand its suitability for both gaming and professional workstation builds.

Advantages

The board combines a wide set of connectivity options and a large E-ATX layout to accommodate robust cooling solutions and multiple expansion cards. Native support for next-generation USB standards and USB4 enables fast external storage and peripheral connections. Integrated Wi‑Fi 7 and Bluetooth simplify wireless setup, while multiple Gigabit Ethernet ports allow flexible network topologies and redundancy. The LGA1851 socket and Z890 chipset provide a platform for high-performance CPUs and memory configurations.

Suitable for

  • High-performance gaming systems requiring extensive I/O and networking.
  • Content creation workstations handling large files and external media.
  • Home or small office servers needing multiple wired network interfaces.
  • Enthusiast builds with multi-GPU or PCIe expansion requirements.

Key specifications

  • Form factor: E-ATX
  • Chipset: Z890
  • CPU socket: LGA1851 (supports compatible processors)
  • Rear and internal USB: USB-C 3.2 Gen 2x2, USB-C 3.2 Gen 2, USB 3.2 Gen 1, USB4
  • Wireless: Integrated Bluetooth and Wi‑Fi 7
  • Wired networking: Five Gigabit Ethernet ports
  • Onboard graphics support: Requires compatible CPU with integrated graphics

How to use

Install a compatible LGA1851 processor according to the motherboard and CPU manufacturer instructions, and secure memory modules and cooling hardware appropriate for an E-ATX board. Connect power supply ATX/EPS connectors, front panel headers and storage devices through the provided SATA or PCIe interfaces. Configure BIOS/UEFI settings to enable onboard features such as USB4, integrated Wi‑Fi and networking ports, and adjust memory/XMP or performance profiles as needed. Install device drivers for the operating system to ensure full functionality of USB controllers, wireless adapters and Ethernet ports.

Recommendations

For stable high-performance operation, use a compatible high-current power supply, adequate airflow or custom cooling for the larger E-ATX layout, and ensure the CPU chosen provides onboard graphics if integrated display output is required. Keep BIOS and drivers up to date to maintain compatibility with USB4 and Wi‑Fi 7 features.

Key Highlights
  • Digital 18+1+2 Phases 110A SPS VRM with Tantalum Polymer Capacitor
  • Reinforced PCIe UD Slot X PCIe 5.0 with PCIe EZ-Latch Plus Design
  • PCIe M.2 design (Up to 25110) with M.2 EZ-Latch Plus & Thermal Guard
  • Fully Covered MOSFET Heatsinks with heatpipe/M.2 EZ-Latch Click Design

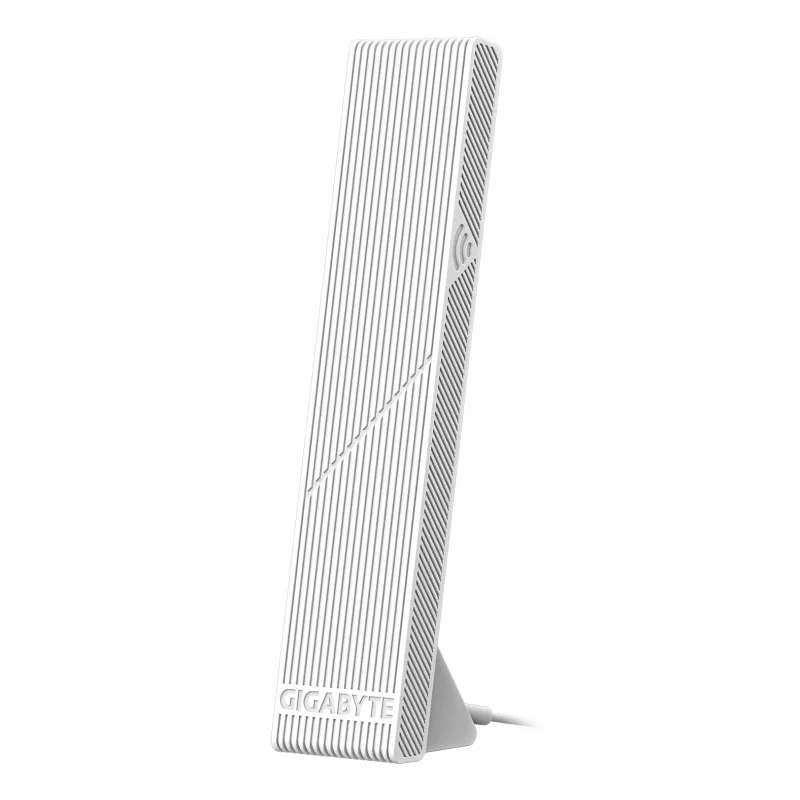

  • MediaTek 2x2 Wi-Fi 7 MT7925 with WIFI EZ-Plug Design

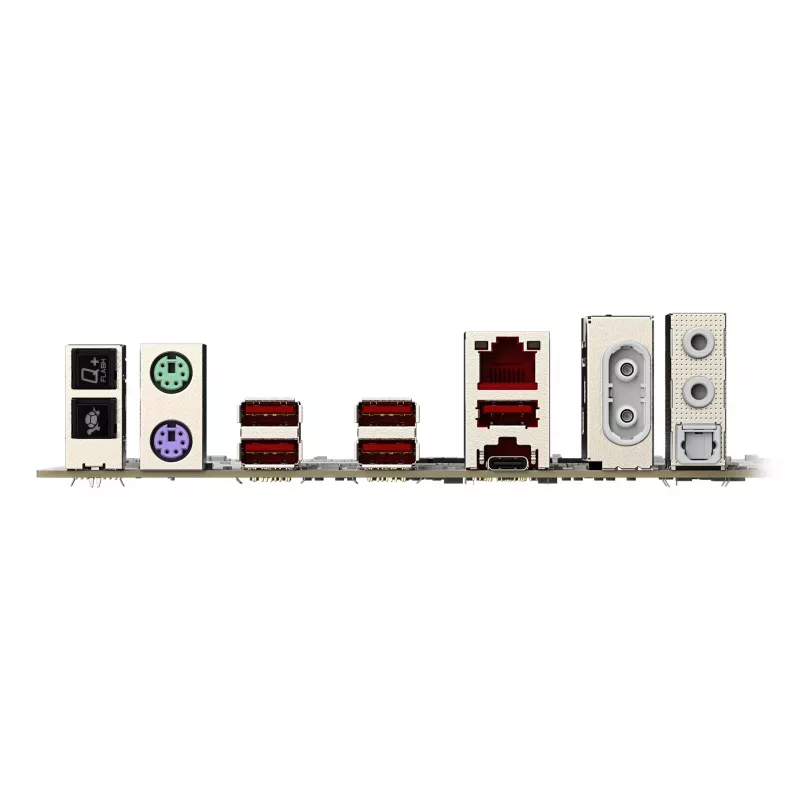

  • 5GbE LAN, THUNDERBOLT 4 Type-C, USB 3.2 Gen2x2 Type-C
  • Intel LGA 1851 (Socket V1) Intel Core Ultra (Series 2)
  • PC Extended ATX Intel Z890 Realtek ALC1220-VB 7.1 channels
  • DDR5-SDRAM 2 DIMM Maximum internal memory: 128 GB
  • HDD & SSD M.2, PCI Express 4.0, PCI Express 5.0, SATA III RAID support Number of storage drives supported: 8
  • BIOS type: UEFI AMI 512 Mbit ACPI version: 5.0 Clear CMOS jumper
  • 2.5 Gigabit Ethernet, 5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet Wi-Fi Wi-Fi 7 (802.11be) Bluetooth 5.4
Specifications
12V power connector
Yes
1st M.2 highest PCI Express generation
5.0
1st M.2 largest key size
25110
2nd M.2 highest PCI Express generation
4.0
2nd M.2 largest key size
25110
3rd M.2 highest PCI Express generation
4.0
3rd M.2 largest key size
22110
4th M.2 highest PCI Express generation
4.0
4th M.2 largest key size
22110
ACPI version
5.0
Antenna included
Yes
ATX Power connector (24-pin)
Yes
Audio chip
Realtek ALC1220-VB
Audio output channels
7.1 channels
Batteries included
Yes
Battery technology
Lithium-Manganese Dioxide (LiMnO2)
Battery type
CR2032
Battery weight
3 g
BIOS memory size
512 Mbit
BIOS type
UEFI AMI
Bluetooth
Yes
Bluetooth version
5.4
Bundled software
Norton® Internet Security (OEM version) LAN bandwidth management software
Clear CMOS jumper
Yes
Compatible processor series
Intel Core Ultra (Series 2)
Component for
PC
Cooling type
Passive
Country of origin
Taiwan
CPU fan connector
Yes
Depth
285 mm
Desktop Management Interface (DMI) version
2.7
Digital audio optical out
1
DirectX version
12.0
DisplayPort version
2.1
DVI-D ports quantity
0
ECC сompatibility
ECC & Non-ECC
EPS power connector (8-pin)
Yes
Ethernet interface type
2.5 Gigabit Ethernet, 5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
Ethernet LAN
Yes
Ethernet LAN (RJ-45) ports
1
Front panel audio connector
Yes
Front panel connector
Yes
HDCP
Yes
HDMI ports quantity
0
Headphone outputs
1
Height
35 mm
LAN controller
Realtek RTL8126
Line-in
Yes
Lithium weight per battery
0.07 g
Maximum internal memory
128 GB
Maximum resolution
5120 x 2880 pixels
Memory channels
Dual-channel
Memory slots type
DIMM
Motherboard chipset
Intel Z890
Motherboard chipset family
Intel
Motherboard form factor
Extended ATX
Number of battery cells
1
Number of chassis fan connectors
7
Number of CPU fan connectors
2
Number of EPS power connectors (8-pin)
1
Number of HDDs supported
4
Number of M.2 (M) slots
4
Number of memory slots
2
Number of noise detection headers
1
Number of RGB LED pin headers
4
Number of SATA III connectors
4
Number of storage drives supported
8
Number of temperature sensor headers
2
Number of water pump connectors
4
Package depth
335 mm
Package height
430 mm
Package weight
3.87 kg
Package width
400 mm
Parallel processing technology support
Not supported
PC health monitoring
Fan, Temperature, Voltage, Water cooling
PCI Express x16 (Gen 5.x) slots
2
Power source type
ATX
Processor manufacturer
Intel
Processor socket
LGA 1851 (Socket V1)
Product colour
White
Products per shipping (inner) case
1 pc(s)
PS/2 ports quantity
2
RAID levels
0, 1, 5, 10
RAID support
Yes
RGB LED pin header
Yes
S/PDIF out port
Yes
Screws included
Yes
Supported memory clock speed (max)
9500 MHz
Supported memory clock speeds
9500,9466,9333,9200,9066,8933,8800,8600,8400,8266,8200,8000,7950,7900,7800,7600,7400,7200,7000,6800,6600,6400,6200,6000,5800,5600 MHz
Supported memory types
DDR5-SDRAM
Supported processor sockets
LGA 1851
Supported storage drive interfaces
M.2, PCI Express 4.0, PCI Express 5.0, SATA III
Supported storage drive types
HDD & SSD
System Management BIOS (SMBIOS) version
2.7
Thunderbolt headers
1
Top Wi-Fi standard
Wi-Fi 7 (802.11be)
Unbuffered memory
Yes
USB 2.0 connectors
1
USB 2.0 ports quantity
0
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
0
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) connectors
1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
5
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
0
USB 3.2 Gen 2x2 Type-C ports quantity
1
VGA (D-Sub) ports quantity
0
Warranty period
3 year(s)
Weight
3.22 kg
Wi-Fi
Yes
Wi-Fi standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)
Width
305 mm
WiFi-AP antenna jack
2
Windows operating systems supported
Windows 11 x64
WLAN controller model
Realtek RTL8922AE
