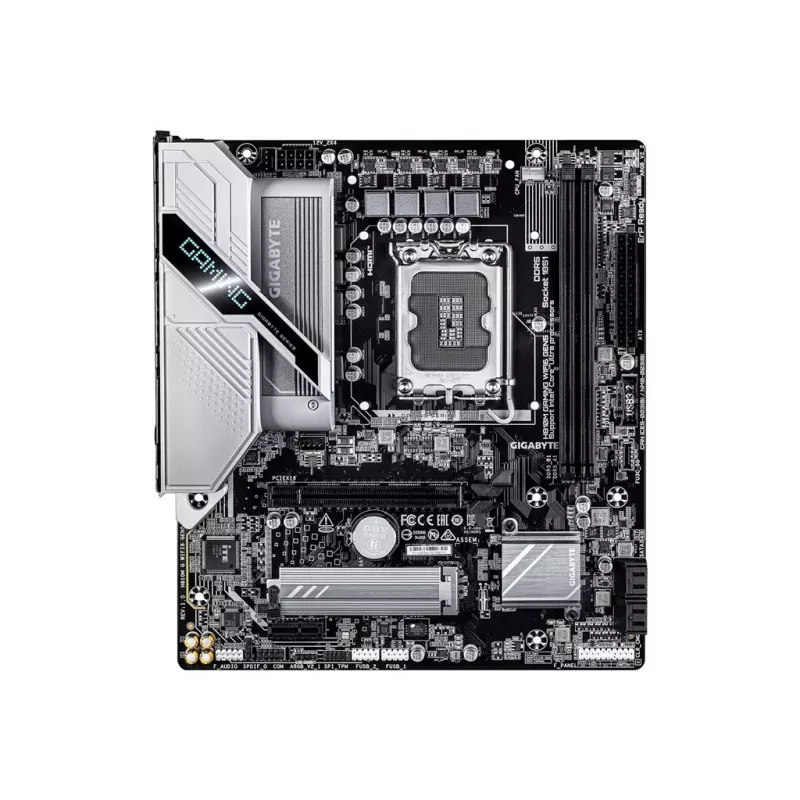

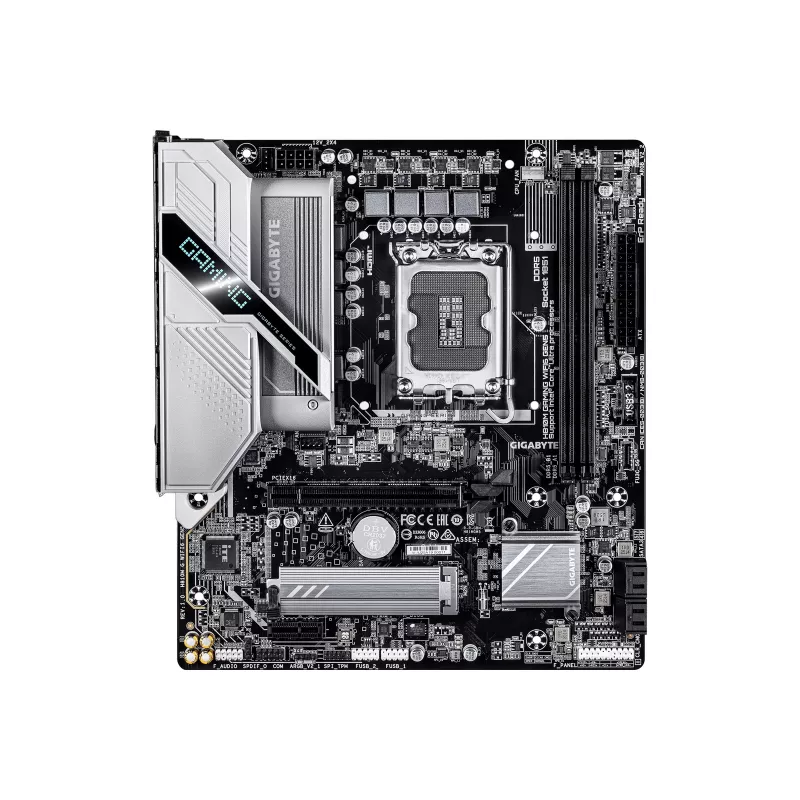

GIGABYTE H810M G WIFI6 GEN5 LGA1851

For system builders assembling a compact yet capable Intel Core Ultra desktop, the GIGABYTE H810M G WIFI6 GEN5 delivers modern connectivity and reliable performance in a micro-ATX footprint. This motherboard supports the latest LGA1851 processors and pairs them with DDR5 memory, PCIe 5.0 graphics, and built-in Wi-Fi 6 networking, making it a solid foundation for home offices, student rigs, and small form factor productivity machines.

Key specifications

• Socket: Intel LGA1851 for Intel Core Ultra processors
• Chipset: Intel H810 Express
• Form factor: Micro-ATX
• Memory: 2 x DDR5 DIMM slots, up to 96GB, non-ECC, unbuffered
• Expansion: 1 x PCIe 5.0 x16 slot
• Storage: 1 x M.2 slot (PCIe 4.0 x4) and 4 x SATA 6Gb/s ports
• Networking: Realtek 2.5GbE LAN, Wi-Fi 6 (802.11ax), Bluetooth 5.2
• Rear USB: 2 x USB 3.2 Gen 1 Type-A, 4 x USB 2.0/1.1 Type-A
• Video outputs: 1 x HDMI, 1 x DisplayPort
• Audio: Realtek High Definition Audio CODEC
• Power connectors: 1 x 24-pin ATX, 1 x 8-pin ATX 12V

Why choose it

The H810M G WIFI6 GEN5 balances essential features with future-ready technology. PCIe 5.0 support ensures compatibility with next-generation graphics cards, while DDR5 memory provides higher bandwidth for multitasking and content creation. Integrated Wi-Fi 6 and 2.5GbE LAN offer flexible networking options, reducing cable clutter without sacrificing speed. GIGABYTE's UEFI BIOS and solid component selection contribute to stable operation for daily computing tasks.

Ideal use cases

• Building a compact home or office PC with an Intel Core Ultra CPU
• Upgrading to DDR5 and PCIe 5.0 without moving to a larger ATX case
• Creating a wireless-enabled workstation with Bluetooth peripherals
• Assembling a budget-friendly gaming or streaming system with a discrete GPU

Good to know

The motherboard supports Windows 11 64-bit and features a UEFI AMI BIOS for easy configuration. With a maximum of 96GB of DDR5 memory, it can handle demanding applications, though the two DIMM slots mean you'll need higher-capacity modules for maximum capacity. The micro-ATX size fits a wide range of cases, and the inclusion of both HDMI and DisplayPort allows dual-monitor setups using integrated graphics.
