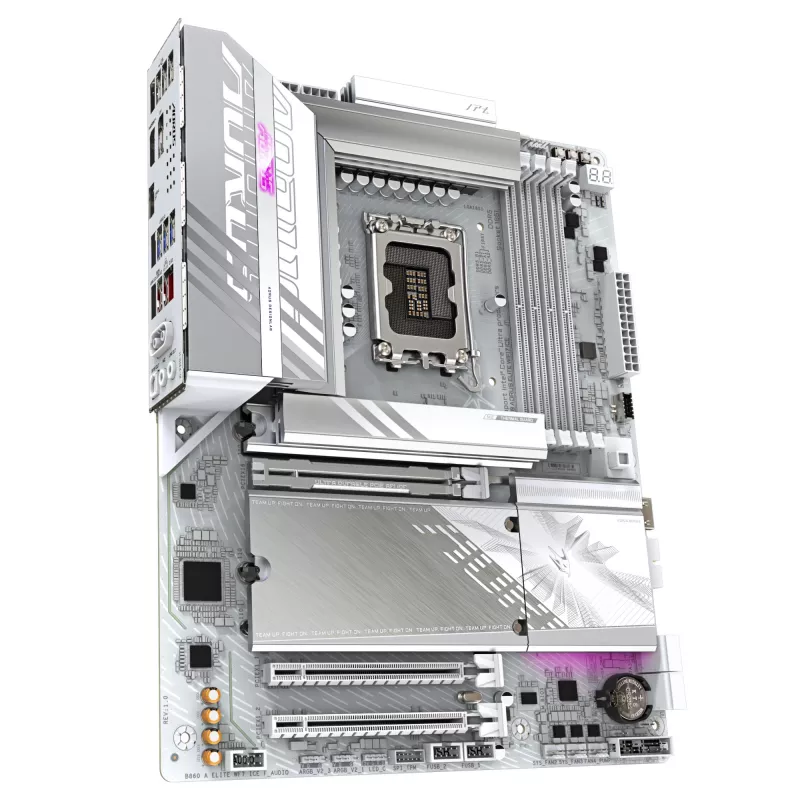

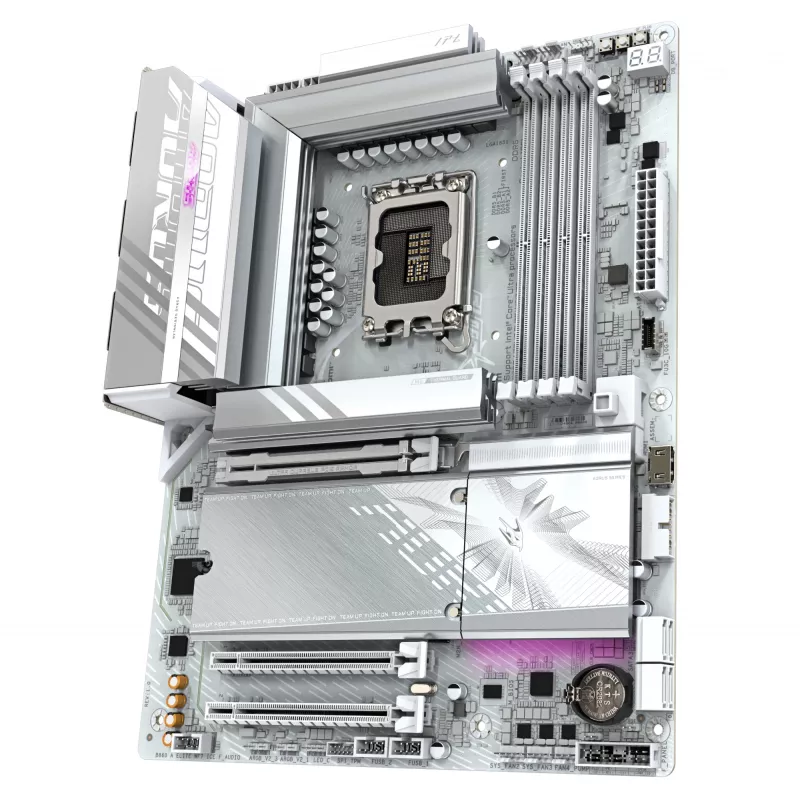

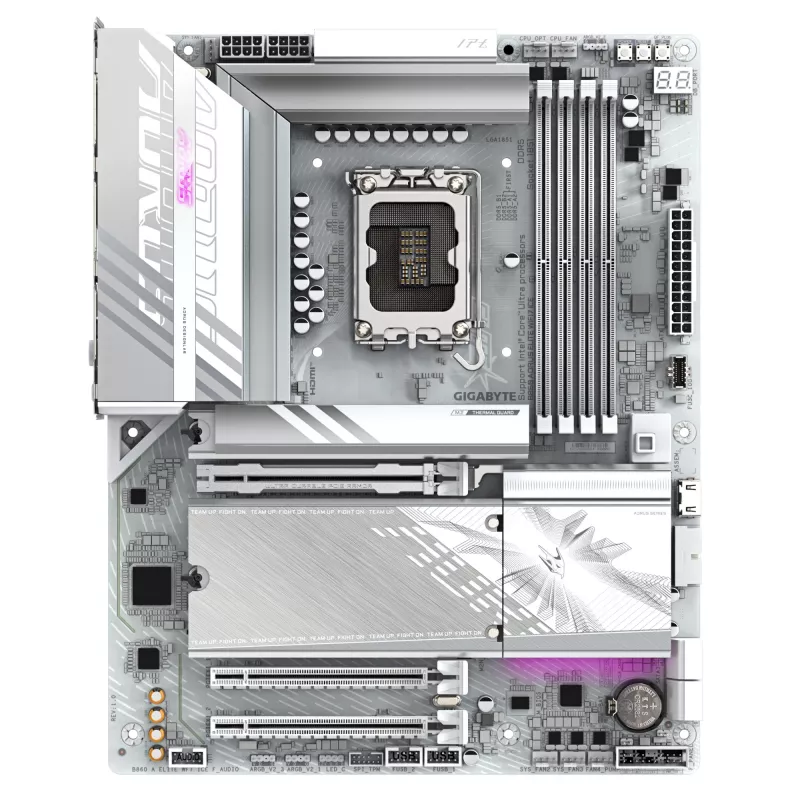

Motherboard GIGABYTE B860 AORUS ELITE WIFI7, Intel LGA 1851, ATX

Motherboard GIGABYTE B860 AORUS ELITE WIFI7, Intel LGA 1851, ATX
Motherboard GIGABYTE B860 AORUS ELITE WIFI7, Intel LGA 1851, ATX
Motherboard GIGABYTE B860 AORUS ELITE WIFI7, Intel LGA 1851, ATX
Motherboard GIGABYTE B860 AORUS ELITE WIFI7, Intel LGA 1851, ATX
Motherboard GIGABYTE B860 AORUS ELITE WIFI7, Intel LGA 1851, ATX
36 mo.
Motherboard GIGABYTE B860 AORUS ELITE WIFI7, Intel LGA 1851, ATX
Motherboard GIGABYTE B860 AORUS ELITE WIFI7, Intel LGA 1851, ATX
Motherboard GIGABYTE B860 AORUS ELITE WIFI7, Intel LGA 1851, ATX
Motherboard GIGABYTE B860 AORUS ELITE WIFI7, Intel LGA 1851, ATX
Motherboard GIGABYTE B860 AORUS ELITE WIFI7, Intel LGA 1851, ATX
R4,443
The GIGABYTE B860 AORUS ELITE WIFI7 is an ATX motherboard designed for Intel Core Ultra Series processors using the LGA 1851 socket. Built on the Intel B860 chipset, it supports DDR5 memory up to 9200 MHz (maximum 256 GB) and offers a high-performance power delivery with a 14+1+2+1 phase VRM design.... Read More
Stock 6 Code 121053 Brand GIGABYTE Model B860 A ELITE WF7 ICE Warranty 3 Years

Shipping & Returns

Estimated delivery Thursday, October 8
You will be kept updated through our detailed tracking system
Payment options
EFTPayFastBank CardSnapScanZapperGoogle PayApple PayMobicredMoreTymePay on Arrival

The GIGABYTE B860 AORUS ELITE WIFI7 is an ATX motherboard designed for Intel Core Ultra Series processors using the LGA 1851 socket. Built on the Intel B860 chipset, it supports DDR5 memory up to 9200 MHz (maximum 256 GB) and offers a high-performance power delivery with a 14+1+2+1 phase VRM design. Connectivity options include PCIe 5.0, two PCIe 4.0 M.2 slots, 2.5GbE LAN, Wi‑Fi 7 and USB4, making the board suitable for demanding gaming and productivity systems.

Advantages

The motherboard combines a robust VRM design and advanced memory support for stable high-frequency DDR5 operation, alongside modern connectivity such as PCIe 5.0, Wi‑Fi 7 and USB4. Its ATX form factor and feature set provide a balance of expandability and performance for desktop builds.

Suitable for

  • High-performance gaming PCs
  • Content creation and video editing workstations
  • General productivity systems requiring fast storage and networking
  • PC builds using Intel Core Ultra Series CPUs (LGA 1851)

Key specifications

  • Form factor: ATX
  • Chipset: Intel B860
  • CPU socket: LGA 1851 (Socket V1) for Intel Core Ultra Series
  • Memory: 4 x DDR5 slots, up to 256 GB, support up to 9200 MHz
  • VRM: 14+1+2+1 phase design
  • Expansion/storage: 1 x PCIe 5.0 slot, 2 x PCIe 4.0 M.2 slots
  • Networking: 2.5GbE LAN, Wi‑Fi 7
  • Ports: USB4 support
  • Weight: 2.21 kg

How to use

Install the motherboard in a compatible ATX chassis, mount an Intel Core Ultra Series CPU into the LGA 1851 socket and apply appropriate cooling. Populate up to four DDR5 memory modules according to the motherboard manual to enable dual- or quad-channel configurations as supported. Connect storage devices to the M.2 slots or available SATA connectors, install a compatible graphics card into the PCIe 5.0 slot if required, and hook up power, front-panel connectors and peripherals. Configure firmware (BIOS/UEFI) settings for memory frequency, boot order and networking as needed.

Recommendations

For optimal stability when running high DDR5 frequencies, use matched memory kits and update the motherboard BIOS to the latest version. Ensure adequate case airflow and a suitable CPU cooler to maintain VRM and CPU temperatures under load.
Key Highlights
  • Twin Hybrid Digital 14+1+2+1 Phases 60A DrMOS VRM
  • Dual Channel DDR5:4*DIMMs
  • PCIe 5.0 x16 with PCIE UD Slot X & EZ-Latch Plus
  • M.2 Gen5 (Up to 25110) with EZ-Latch Plus
  • Fully Covered MOSFET Heatsinks/M.2 Thermal Guard(Ext.) with EZ-Latch Click
  • Intel 2x2 Wi-Fi 7 160MHz with WIFI EZ-Plug
  • 2.5GbE LAN, USB 4.0 Type-C, USB 3.2 Gen2 Type-C
  • Q-Flash Plus
  • Intel LGA 1851 (Socket V1) Intel® Core™ Ultra (Series 1), Intel Core Ultra (Series 2)
  • PC ATX Intel B860 Realtek ALC897 7.1 channels
  • DDR5-SDRAM 4 DIMM Maximum internal memory: 256 GB
  • HDD & SSD M.2, SATA III RAID support Number of storage drives supported: 7
  • BIOS type: UEFI AMI 256 Mbit ACPI version: 5.0 Clear CMOS jumper
  • 2.5 Gigabit Ethernet Wi-Fi Wi-Fi 7 (802.11be) Bluetooth 5.4
Specifications
1st M.2 highest PCI Express generation
5.0
1st M.2 largest key size
25110
2nd M.2 highest PCI Express generation
4.0
2nd M.2 largest key size
22110
3rd M.2 highest PCI Express generation
4.0
3rd M.2 largest key size
22110
ACPI version
5.0
Antenna included
Yes
ATX Power connector (24-pin)
Yes
Audio chip
Realtek ALC897
Audio output channels
7.1 channels
Batteries included
Yes
Battery technology
Lithium-Manganese Dioxide (LiMnO2)
Battery type
CR2032
Battery weight
3 g
BIOS memory size
256 Mbit
BIOS type
UEFI AMI
Bluetooth
Yes
Bluetooth version
5.4
Bundled software
Norton Internet Security (OEM version) LAN bandwidth management software
Clear CMOS jumper
Yes
Compatible processor series
Intel® Core™ Ultra (Series 1), Intel Core Ultra (Series 2)
Component for
PC
Cooling type
Passive
Country of origin
China
CPU fan connector
Yes
Depth
244 mm
Desktop Management Interface (DMI) version
2.7
Digital audio optical out
1
DirectX version
12.0
DisplayPort version
2.1
DisplayPorts quantity
1
DVI-D ports quantity
0
ECC сompatibility
ECC & Non-ECC
EPS power connector (8-pin)
Yes
Ethernet interface type
2.5 Gigabit Ethernet
Ethernet LAN
Yes
Ethernet LAN (RJ-45) ports
1
Front panel audio connector
Yes
Front panel connector
Yes
HDCP
Yes
HDMI ports quantity
1
HDMI version
2.1
Headphone outputs
1
Height
35 mm
LAN controller
Realtek RTL8125
Line-in
Yes
Lithium weight per battery
0.07 g
Maximum internal memory
256 GB
Maximum internal memory per slot
64 GB
Maximum resolution
4096 x 2160 pixels
Memory channels
Dual-channel
Memory slots type
DIMM
Motherboard chipset
Intel B860
Motherboard chipset family
Intel
Motherboard form factor
ATX
Number of battery cells
1
Number of chassis fan connectors
4
Number of CPU fan connectors
2
Number of EPS power connectors (8-pin)
2
Number of HDDs supported
4
Number of M.2 (M) slots
3
Number of memory slots
4
Number of RGB LED pin headers
4
Number of SATA III connectors
4
Number of storage drives supported
7
Number of water pump connectors
2
Package depth
270 mm
Package height
80 mm
Package weight
2.49 kg
Package width
335 mm
Parallel processing technology support
Not supported
PC health monitoring
Fan, Temperature, Voltage, Water cooling
PCI Express x16 (Gen 4.x) slots
2
PCI Express x16 (Gen 5.x) slots
1
Power source type
ATX
Processor manufacturer
Intel
Processor socket
LGA 1851 (Socket V1)
Product colour
White
Products per shipping (inner) case
1 pc(s)
RAID levels
0, 1, 5, 10
RAID support
Yes
RGB LED pin header
Yes
S/PDIF out port
Yes
Screws included
Yes
Supported memory clock speed (max)
9200 MHz
Supported memory clock speeds
5600,6400,9200 MHz
Supported memory types
DDR5-SDRAM
Supported processor sockets
LGA 1851
Supported storage drive interfaces
M.2, SATA III
Supported storage drive types
HDD & SSD
System Management BIOS (SMBIOS) version
2.7
Top Wi-Fi standard
Wi-Fi 7 (802.11be)
TPM connector
Yes
Unbuffered memory
Yes
USB 2.0 connectors
2
USB 2.0 ports quantity
4
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) connectors
1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
0
USB4 Gen 2x2 ports quantity
1
VGA (D-Sub) ports quantity
0
Warranty period
3 year(s)
Weight
2.21 kg
Wi-Fi
Yes
Wi-Fi standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)
Width
305 mm
WiFi-AP antenna jack
2
Windows operating systems supported
Windows 11 x64
WLAN controller model
Realtek RTL8922AE

Manual

Open Manual

Leaflet

Open Leaflet
Price history over the last 6 months
Motherboard GIGABYTE B860 AORUS ELITE WIFI7, Intel LGA 1851, ATX
Current
R4,443
Lowest
R3,934
Highest
R4,861
Change 24H
+R287   +7%
Week
+R269   +6%
Month
-R417   -9%

Independent reviews by tech media

funkykit.comWinston
9.4/10

Verdict: The Gigabyte B860 AORUS ELITE WiFi7 ICE motherboard offers a lot more than the price suggests. It comes with a ton of enthusaist features, offers good performance, and has great aesthetics with an all-white design. You get all of this for only USD $190! ...

Pros
  • Amazingly Affordable
  • Good performance
  • Intel B860 Chipset
  • Supports XMP memory up to DDR59200 OC
  • M.2 EZLatch Plus and EZLatch click
  • 1 x PCIE 5.0 x16 slot
  • 2 x PCIE 6.0 x16 slots
  • 2.5GB LAN
Cons
  • None I can think of
