GIGABYTE B850 AORUS STEALTH ICE ATX Motherboard for AMD Socket AM5 — B850, 14+2+2 VRM, DDR5 up to 8200MHz (OC), 2×PCIe5, 2×PCIe4 M.2, Wi‑Fi 7, 5GbE

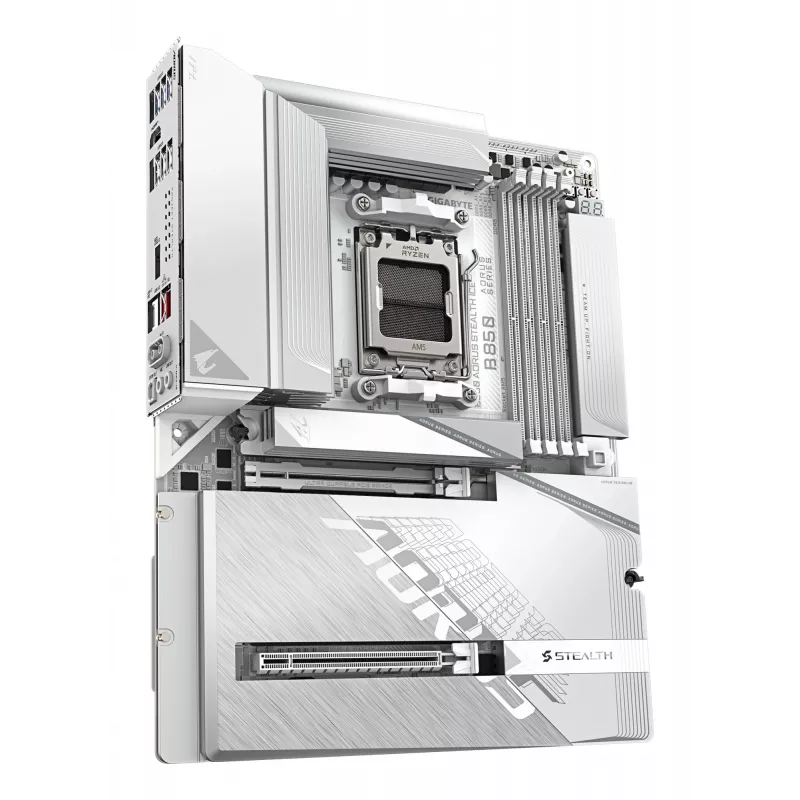

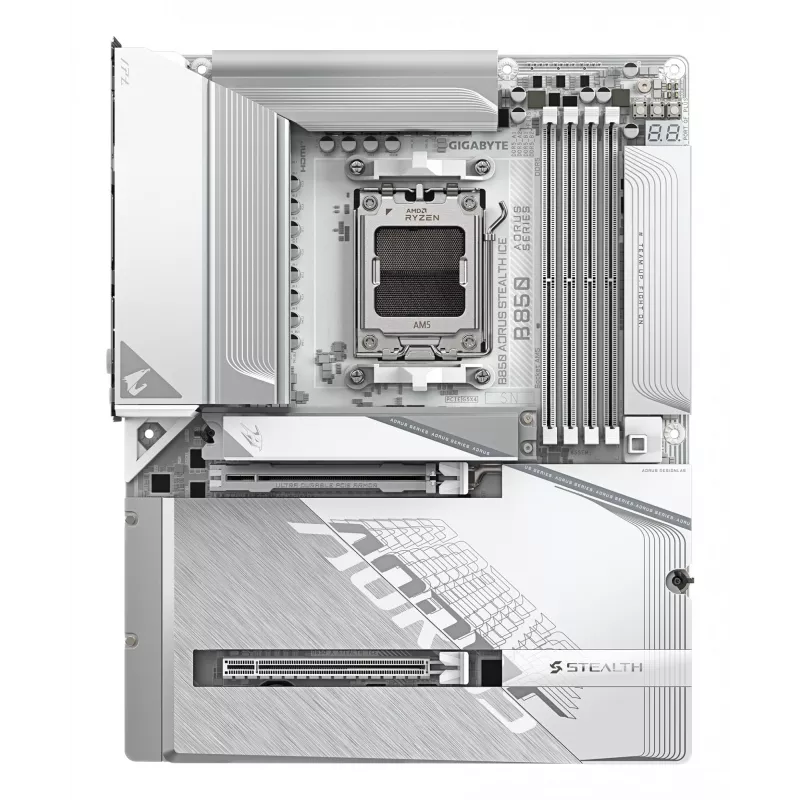

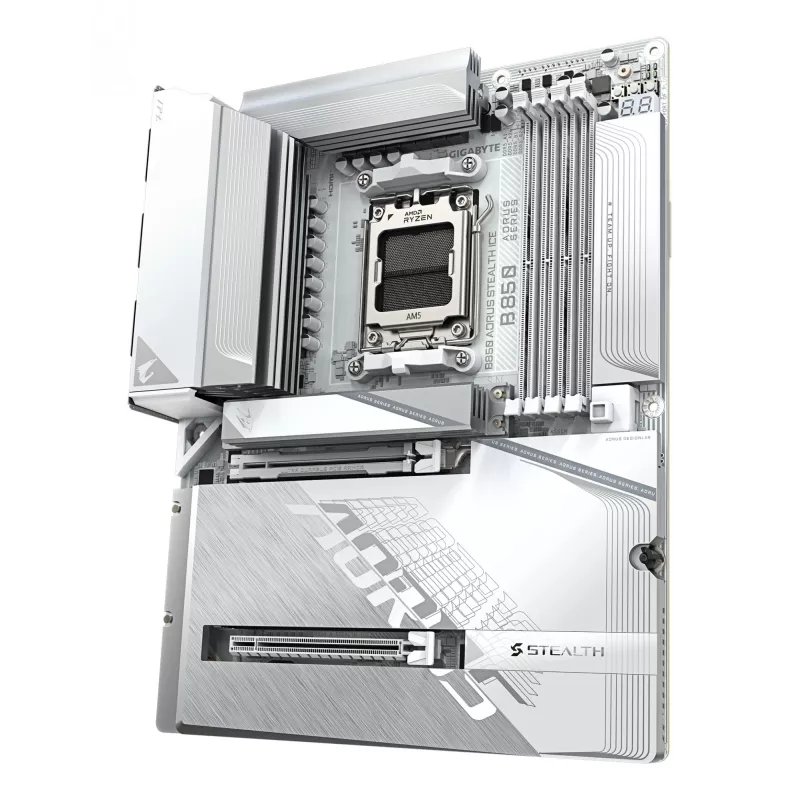

The GIGABYTE B850 AORUS STEALTH ICE is an ATX motherboard designed for AMD Socket AM5 processors, compatible with AMD Ryzen 7000, 8000, and 9000 series. It supports DDR5 memory (4 DIMM slots, up to 256 GB, OC up to 8200 MT/s), multiple high-speed storage options including PCIe 5.0 and PCIe 4.0 M.2 slots, and modern connectivity such as Wi‑Fi 7 and 5 GbE LAN. The board features a 14+2+2 digital VRM design and a range of patented cooling and convenience features developed for performance-oriented desktop builds.

Advantages

The motherboard offers high memory overclocking capability and a robust digital VRM (14+2+2 phases) for stable power delivery to AMD Ryzen processors. Storage performance is maximized through multiple M.2 slots including PCIe 5.0 x4 support, while advanced thermal solutions (M.2 Thermal Guard, VRM Thermal Armor and M.2 EZ-Flex) help maintain sustained performance. Integrated networking includes 5 GbE Ethernet and Wi‑Fi 7 with a high-gain antenna. Several EZ-Latch and screwless designs simplify installation and drive servicing.

Suitable for

• High-performance gaming PCs using AMD Ryzen 7000/8000/9000 series CPUs
• Content creation and workstation builds that require fast storage and large memory capacity
• PC builders who need advanced connectivity (Wi‑Fi 7, 5 GbE) and multiple M.2 slots

Key specifications

• Form factor: ATX
• Chipset: AMD B850
• Processor socket: Socket AM5 (supports AMD Ryzen 7000/8000/9000 Series)
• Memory: DDR5-SDRAM, 4 DIMM slots, up to 256 GB, OC up to 8200 MT/s
• Power design: Digital twin 14+2+2 phases VRM
• Storage: 4× M.2 slots (includes PCIe 5.0 x4 support), SATA III, support for HDD & SSD, RAID 0/1/5/10
• Expansion: 2× PCIe 5.0 slots (per product title) and additional PCIe 4.0 lanes

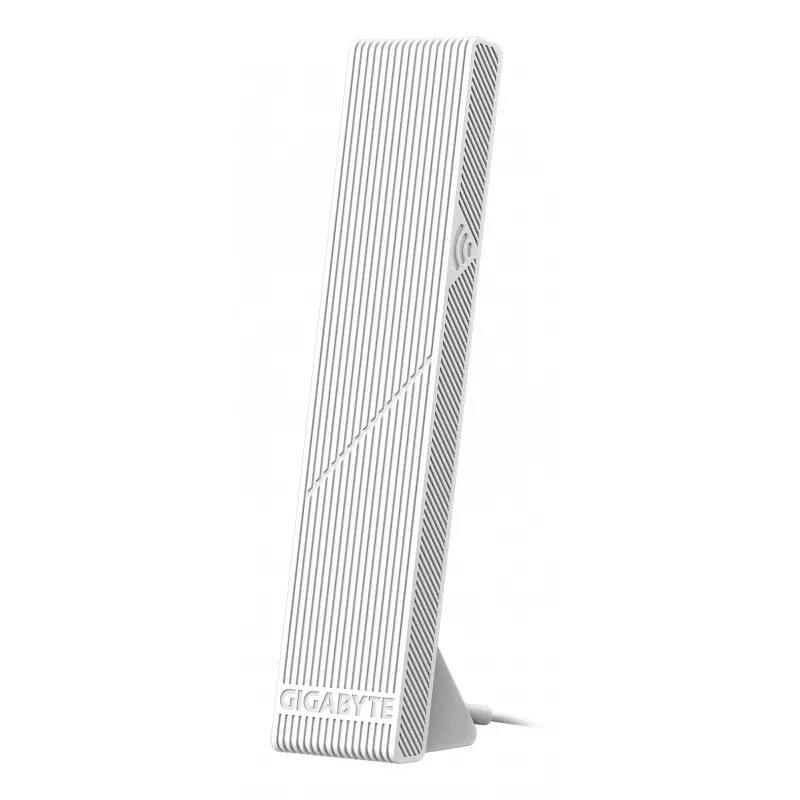

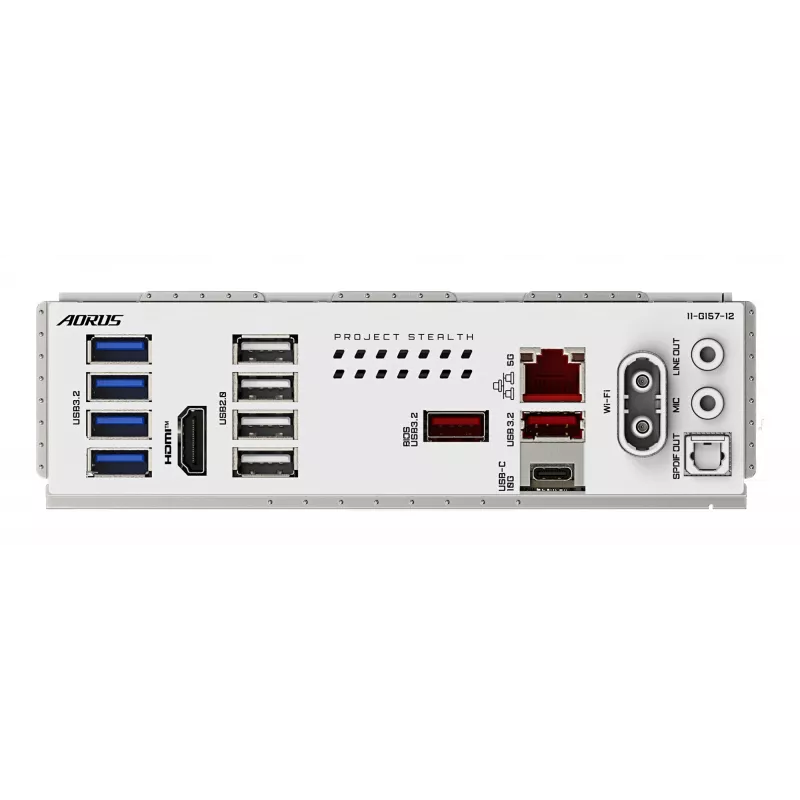

• Networking: 5 Gigabit Ethernet (Realtek RTL8126) and Wi‑Fi 7 (802.11be) with directional high‑gain antenna, Bluetooth 5.4
• Audio: Realtek ALC897, 7.1 channels
• BIOS: UEFI AMI (512 Mbit), ACPI version 5.0, Clear CMOS jumper
• Maximum display resolution (integrated): up to 4096 × 2160

How to use

Install the motherboard into a compatible ATX chassis and secure it with standoffs. Fit an AMD Socket AM5 CPU from the supported Ryzen series, install up to four DDR5 DIMMs per the motherboard manual and configure memory settings or XMP/OC profiles in UEFI if needed. Mount M.2 SSDs using the M.2 EZ-Flex and EZ-Latch features for tool-free or simplified installation; connect SATA drives to the available ports if required. Attach the Wi‑Fi antenna using the WIFI EZ-Plug, connect Ethernet to the 5 GbE port, and attach power connectors from a suitable PSU. Update the UEFI BIOS to the latest version for best compatibility and enable RAID or other features via the UEFI menu when necessary.

Recommendations

For stable overclocking and sustained high loads, use a quality CPU cooler and a power supply with adequate wattage and stable rails. Keep M.2 and VRM cooling unobstructed and update BIOS firmware regularly to ensure optimal compatibility with newer AMD Ryzen CPUs and memory profiles.
