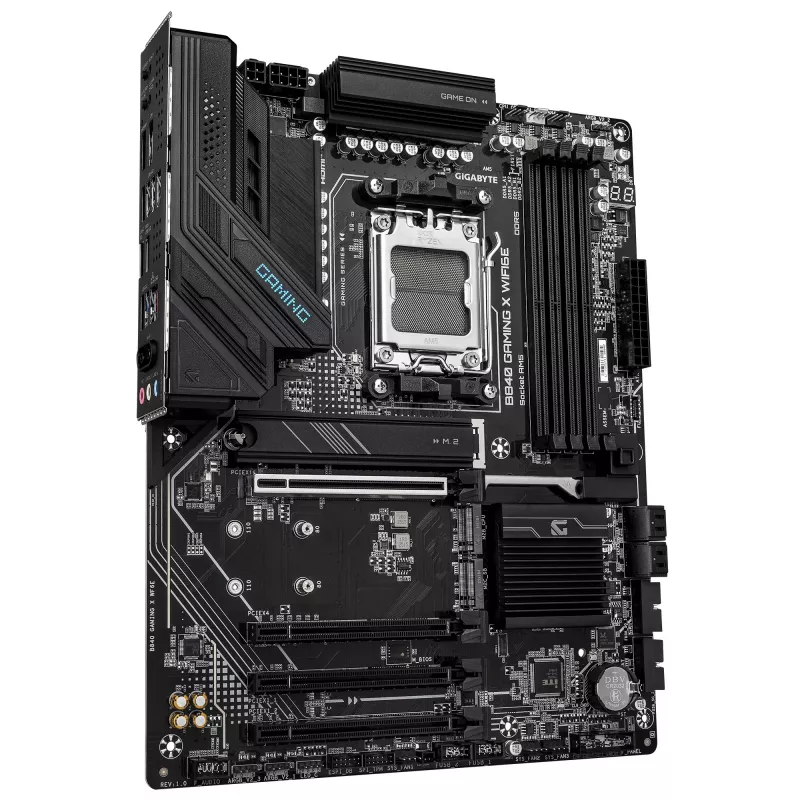

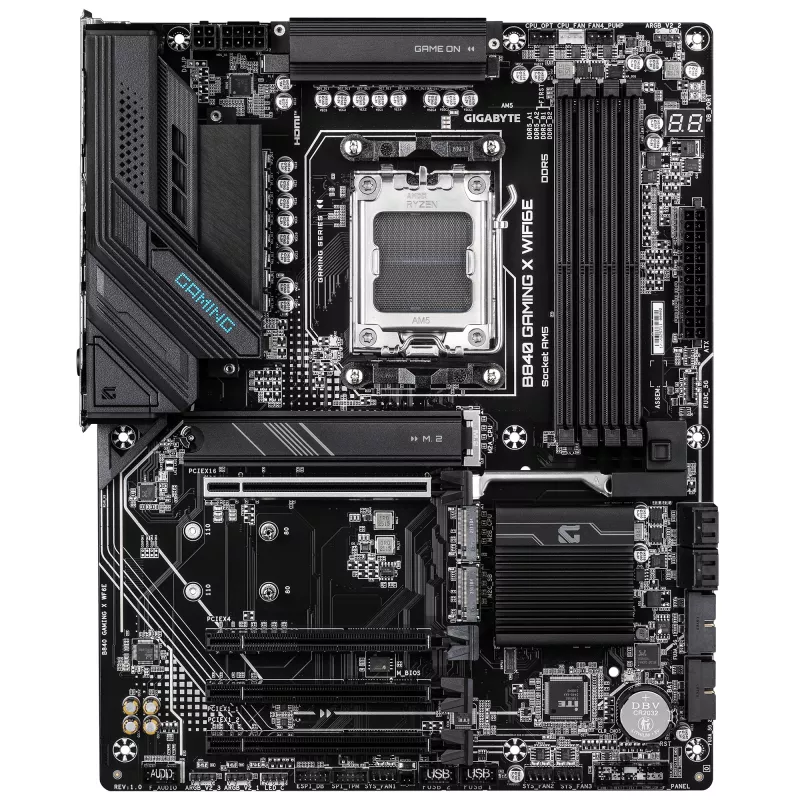

Motherboard GIGABYTE B840 GAMING X WIFI6E, AMD B550, Socket AM5, ATX

The GIGABYTE B840 GAMING X WIFI6E (Socket AM5, ATX) is a desktop motherboard designed for AMD Ryzen 7000 / 8000 / 9000 series processors. It features a robust digital twin 12+2+2 phases VRM solution, support for dual-channel DDR5 memory across four DIMM slots (maximum 256 GB), multiple M.2 slots for ultra-fast storage and modern connectivity including Wi‑Fi 6E and 2.5GbE LAN. The board combines AORUS/AERO/GIGABYTE series engineering with user-friendly installation features such as EZ-Latch and WIFI EZ‑Plug.

Advantages

The motherboard offers high power delivery and stable operation through its 12+2+2 VRM design, enabling reliable performance with AMD Socket AM5 processors. DDR5 memory support with EXPO compatibility and D5 Bionic Corsa optimizations allow for improved memory performance. Multiple PCIe and M.2 interfaces, plus 2.5GbE and Wi‑Fi 6E networking, provide flexible expansion and fast connectivity for gaming and productivity builds. Tool-less EZ-Latch and WIFI EZ‑Plug simplify installation and maintenance.

Suitable for

• High-performance gaming PCs using AMD Ryzen 7000/8000/9000 CPUs
• Content creation and productivity systems requiring fast storage and memory
• Custom desktop builds that need modern connectivity (Wi‑Fi 6E, 2.5GbE) and multiple M.2 drives

Key specifications

• Form factor: ATX
• Chipset: AMD B840
• Processor socket: Socket AM5 (supports AMD Ryzen 7000 / 8000 / 9000 Series)
• Power delivery: Digital twin 12+2+2 phases VRM
• Memory: DDR5, 4 x DIMM, Dual Channel, up to 256 GB, EXPO support
• PCIe / Storage: 3 x M.2 slots (including 2 x PCIe 4.0 x4), PCIe 4.0/3.0 slots, SATA III, RAID support; up to 7 storage drives supported

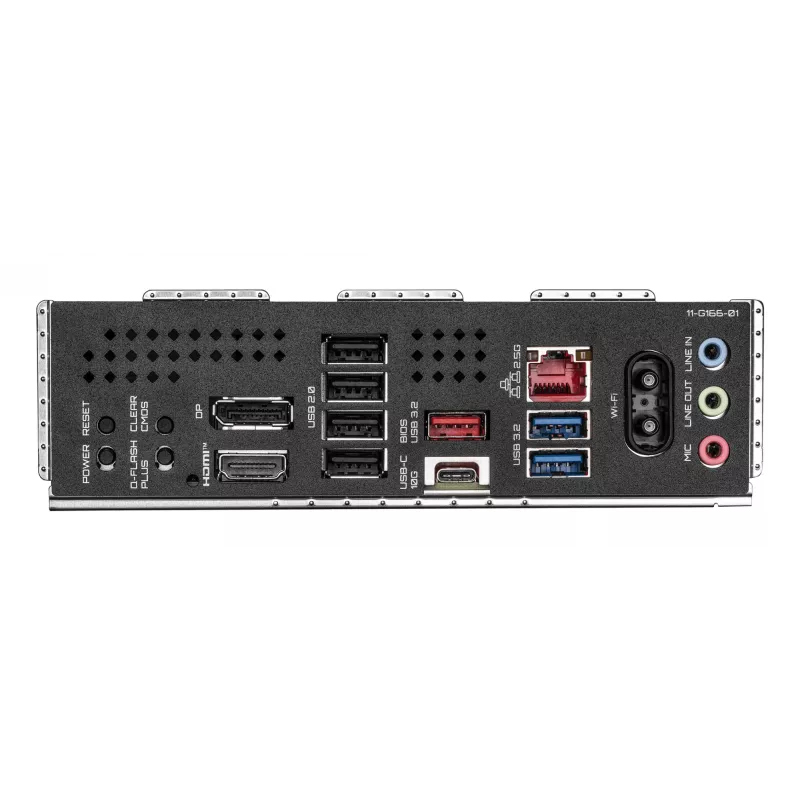

• Networking: 2.5GbE LAN, Wi‑Fi 6E (802.11ax), Bluetooth 5.3
• Audio: Realtek ALC897, 7.1 channels
• BIOS: UEFI AMI 256 Mbit, ACPI 5.0, Clear CMOS jumper and button
• Weight: 1.66 kg

How to use

Install the motherboard into an ATX-compatible chassis and secure it with the supplied standoffs and screws. Fit an AMD Socket AM5 processor and apply appropriate cooling on the VRM and CPU. Populate DDR5 memory modules into the recommended DIMM slots for dual-channel operation and enable AMD EXPO in BIOS if using EXPO-compatible modules. Connect storage devices to M.2 slots and SATA ports as required, and plug in GPU(s) to PCIe x16 slots. Attach the Wi‑Fi antenna using the WIFI EZ‑Plug and connect LAN and front-panel cables. Update the UEFI BIOS to the latest version for best compatibility and performance.

Recommendations

For stable high-load operation, use a high-quality CPU cooler and ensure adequate case airflow. When installing multiple M.2 drives or PCIe cards, consult the motherboard manual to confirm lane allocation and avoid configuration conflicts. Keep BIOS and drivers up to date to ensure full support for Ryzen 7000/8000/9000 CPUs and memory profiles.
