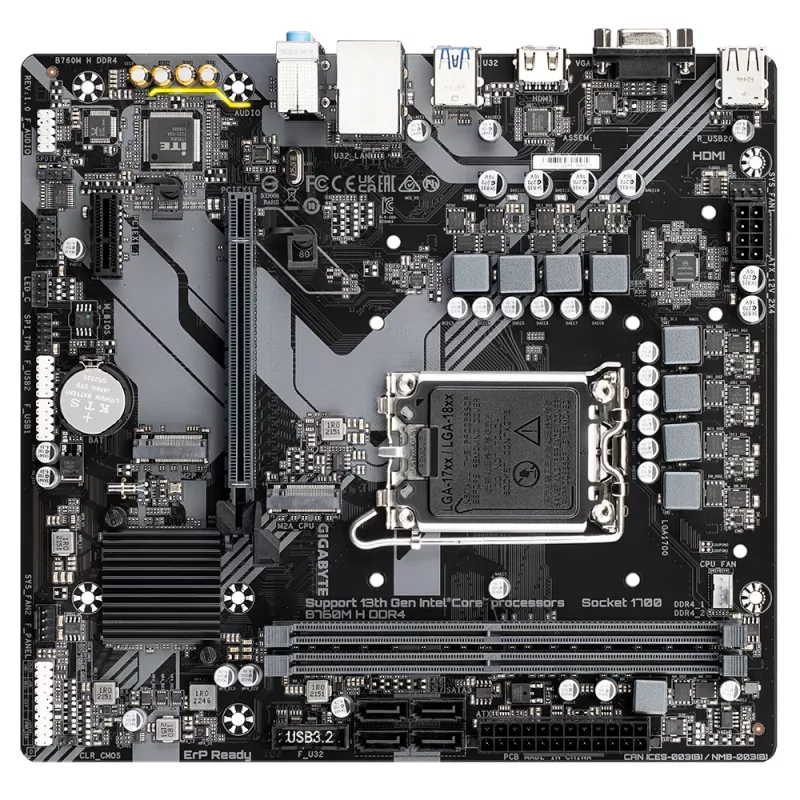

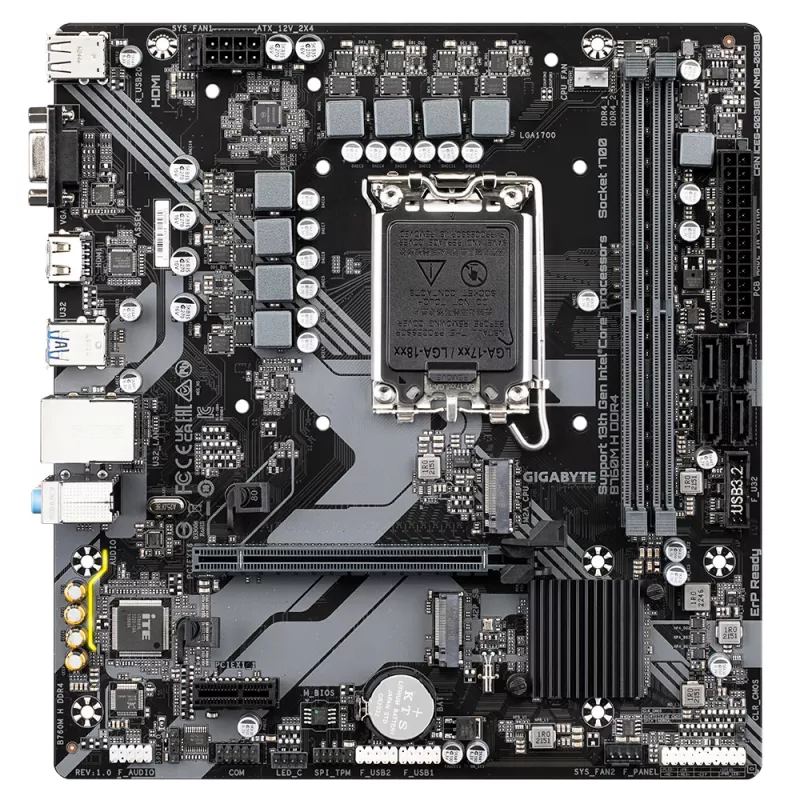

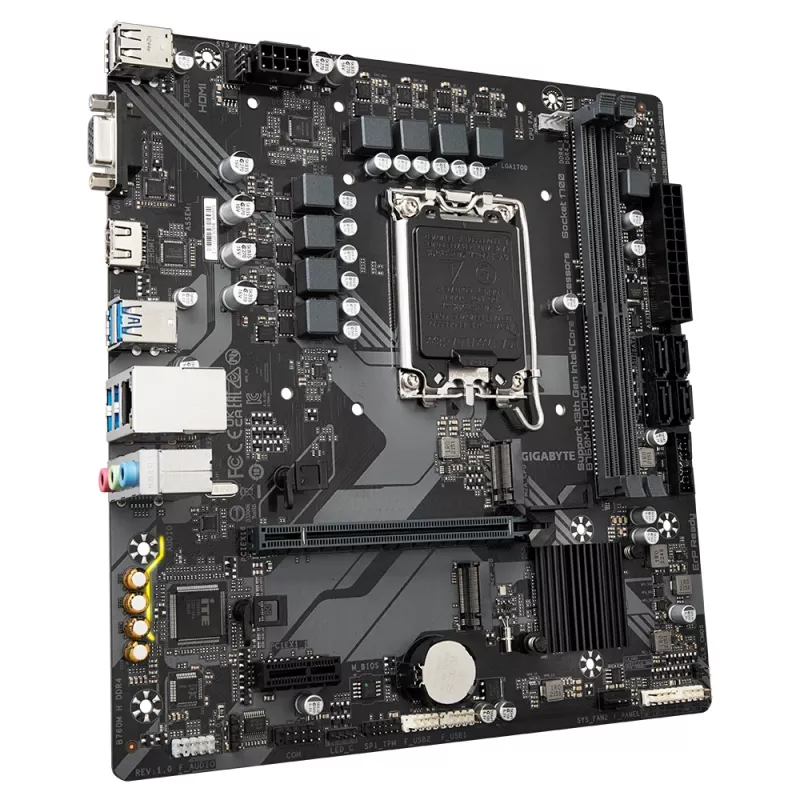

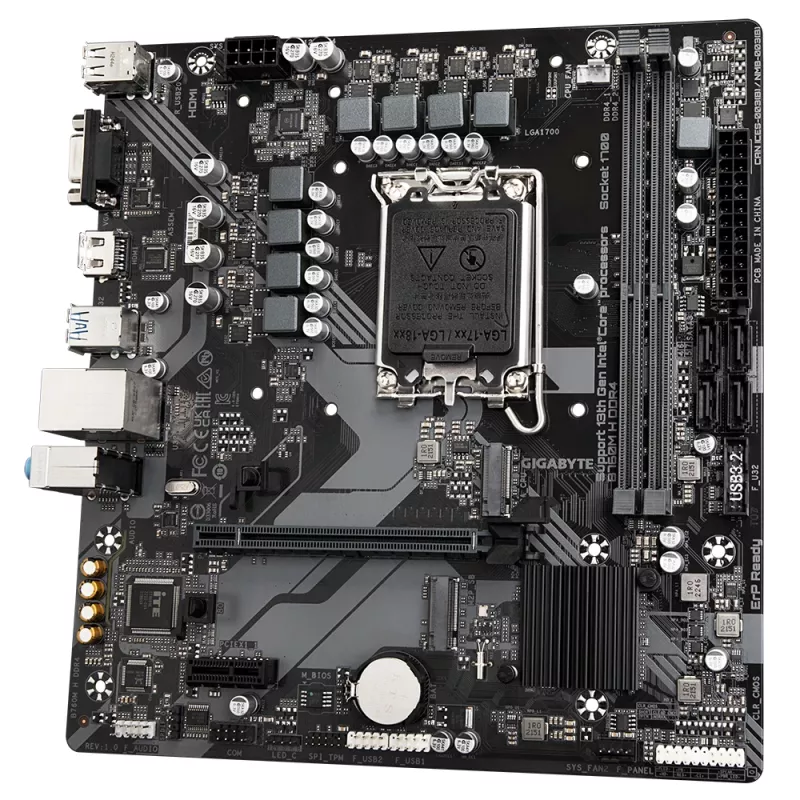

GIGABYTE B760M H DDR4 Motherboard - Supports Intel Core 14th Gen CPUs, 6+1+1 Phases Digital VRM, up to 3200MHz DDR4 (OC), 2xPCIe 4.0 M.2, GbE LAN, USB 3.2 Gen1

GIGABYTE B760M H DDR4 Motherboard - Supports Intel Core 14th Gen CPUs, 6+1+1 Phases Digital VRM, up to 3200MHz DDR4 (OC), 2xPCIe 4.0 M.2, GbE LAN, USB 3.2 Gen1
GIGABYTE B760M H DDR4 Motherboard - Supports Intel Core 14th Gen CPUs, 6+1+1 Phases Digital VRM, up to 3200MHz DDR4 (OC), 2xPCIe 4.0 M.2, GbE LAN, USB 3.2 Gen1
GIGABYTE B760M H DDR4 Motherboard - Supports Intel Core 14th Gen CPUs, 6+1+1 Phases Digital VRM, up to 3200MHz DDR4 (OC), 2xPCIe 4.0 M.2, GbE LAN, USB 3.2 Gen1
GIGABYTE B760M H DDR4 Motherboard - Supports Intel Core 14th Gen CPUs, 6+1+1 Phases Digital VRM, up to 3200MHz DDR4 (OC), 2xPCIe 4.0 M.2, GbE LAN, USB 3.2 Gen1
GIGABYTE B760M H DDR4 Motherboard - Supports Intel Core 14th Gen CPUs, 6+1+1 Phases Digital VRM, up to 3200MHz DDR4 (OC), 2xPCIe 4.0 M.2, GbE LAN, USB 3.2 Gen1
36 mo.
GIGABYTE B760M H DDR4 Motherboard - Supports Intel Core 14th Gen CPUs, 6+1+1 Phases Digital VRM, up to 3200MHz DDR4 (OC), 2xPCIe 4.0 M.2, GbE LAN, USB 3.2 Gen1
GIGABYTE B760M H DDR4 Motherboard - Supports Intel Core 14th Gen CPUs, 6+1+1 Phases Digital VRM, up to 3200MHz DDR4 (OC), 2xPCIe 4.0 M.2, GbE LAN, USB 3.2 Gen1
GIGABYTE B760M H DDR4 Motherboard - Supports Intel Core 14th Gen CPUs, 6+1+1 Phases Digital VRM, up to 3200MHz DDR4 (OC), 2xPCIe 4.0 M.2, GbE LAN, USB 3.2 Gen1
GIGABYTE B760M H DDR4 Motherboard - Supports Intel Core 14th Gen CPUs, 6+1+1 Phases Digital VRM, up to 3200MHz DDR4 (OC), 2xPCIe 4.0 M.2, GbE LAN, USB 3.2 Gen1
GIGABYTE B760M H DDR4 Motherboard - Supports Intel Core 14th Gen CPUs, 6+1+1 Phases Digital VRM, up to 3200MHz DDR4 (OC), 2xPCIe 4.0 M.2, GbE LAN, USB 3.2 Gen1
R1,993
Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your... Read More
Stock 1 Code 31303 Brand GIGABYTE Model B760M H DDR4 Warranty 3 Years

Shipping & Returns

Estimated delivery Monday, October 5
You will be kept updated through our detailed tracking system
Payment options
EFTPayFastBank CardSnapScanZapperGoogle PayApple PayMobicredMoreTymePay on Arrival
Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge

GIGABYTE B760M H DDR4 Motherboard - Supports Intel Core 14th Gen CPUs, 6+1+1 Phases Digital VRM, up to 3200MHz DDR4 (OC), 2xPCIe 4.0 M.2, GbE LAN, USB 3.2 Gen1. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Pentium® Gold. Supported memory types: DDR4-SDRAM, Maximum internal memory: 64 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, RAID levels: 0, 1, 5, 10. Ethernet interface type: Gigabit Ethernet. Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: Intel

Key Highlights
  • Supports Intel Core 14th/ 13th /12th processors
  • Unparalleled Performance:Hybrid 6+1+1 Phases Digital VRM Solution
  • Dual Channel DDR4:2DIMMs XMP Memory Module Support
  • Next Generation Storage:2PCIe 4.0 x4 M.2 Connectors
  • EZ-Latch:PCIe 4.0x16 Slot with Quick Release Design
  • Fast Networks:GbE LAN
  • Extended Connectivity:HDMI, D-Sub
  • Smart Fan 6:Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
  • Intel LGA 1700 Intel® Celeron®, Intel® Pentium® Gold
  • PC micro ATX Intel B760 Express Realtek ALC897 7.1 channels
  • DDR4-SDRAM 2 DIMM Maximum internal memory: 64 GB
  • M.2, SATA III RAID support Number of storage drives supported: 6
  • BIOS type: UEFI AMI 128 Mbit ACPI version: 5.0 Clear CMOS jumper
  • Gigabit Ethernet
Specifications
ACPI version
5.0
ATX Power connector (24-pin)
Yes
Audio chip
Realtek ALC897
Audio output channels
7.1 channels
Batteries included
Yes
Battery technology
Lithium-Manganese Dioxide (LiMnO2)
Battery type
CR2032
Battery weight
3 g
BIOS memory size
128 Mbit
BIOS type
UEFI AMI
Clear CMOS jumper
Yes
Compatible processor series
Intel® Celeron®, Intel® Pentium® Gold
Component for
PC
Country of origin
China
CPU fan connector
Yes
Depth
215 mm
Desktop Management Interface (DMI) version
2.7
DirectX version
12.1
DisplayPort version
1.4
DisplayPorts quantity
1
DVI-D ports quantity
0
ECC сompatibility
Non-ECC
EPS power connector (8-pin)
Yes
Ethernet interface type
Gigabit Ethernet
Ethernet LAN
Yes
Ethernet LAN (RJ-45) ports
1
Front panel audio connector
Yes
Front panel connector
Yes
HDMI ports quantity
1
HDMI version
1.4
Height
35 mm
Lithium weight per battery
0.07 g
Maximum internal memory
64 GB
Maximum internal memory supported by processor
64 GB
Maximum number of SMP processors
1
Memory channels
Dual-channel
Memory slots type
DIMM
Motherboard chipset
Intel B760 Express
Motherboard chipset family
Intel
Motherboard form factor
micro ATX
Number of battery cells
1
Number of HDDs supported
4
Number of M.2 (M) slots
2
Number of memory slots
2
Number of SATA III connectors
4
Number of storage drives supported
6
Package depth
265 mm
Package height
54 mm
Package weight
825 g
Package width
265 mm
Parallel processing technology support
Not supported
PCI Express x16 (Gen 4.x) slots
1
Power source type
ATX
Processor manufacturer
Intel
Processor socket
LGA 1700
Product colour
Brown
Products per shipping (inner) case
1 pc(s)
RAID levels
0, 1, 5, 10
RAID support
Yes
RGB LED pin header
Yes
Serial port headers
1
Supported memory clock speed (max)
3200 MHz
Supported memory clock speeds
2133,2400,2666,2933,3000,3200 MHz
Supported memory module capacities
1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB
Supported memory types
DDR4-SDRAM
Supported processor sockets
LGA 1700
Supported storage drive interfaces
M.2, SATA III
System Management BIOS (SMBIOS) version
2.7
Total number of SATA connectors
4
TPM connector
Yes
USB 2.0 connectors
2
USB 2.0 ports quantity
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) connectors
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
0
VGA (D-Sub) ports quantity
1
Warranty period
3 year(s)
Wi-Fi
No
Width
230 mm
Windows operating systems supported
Windows 10, Windows 11

Manual

Open Manual

Leaflet

Open Leaflet
