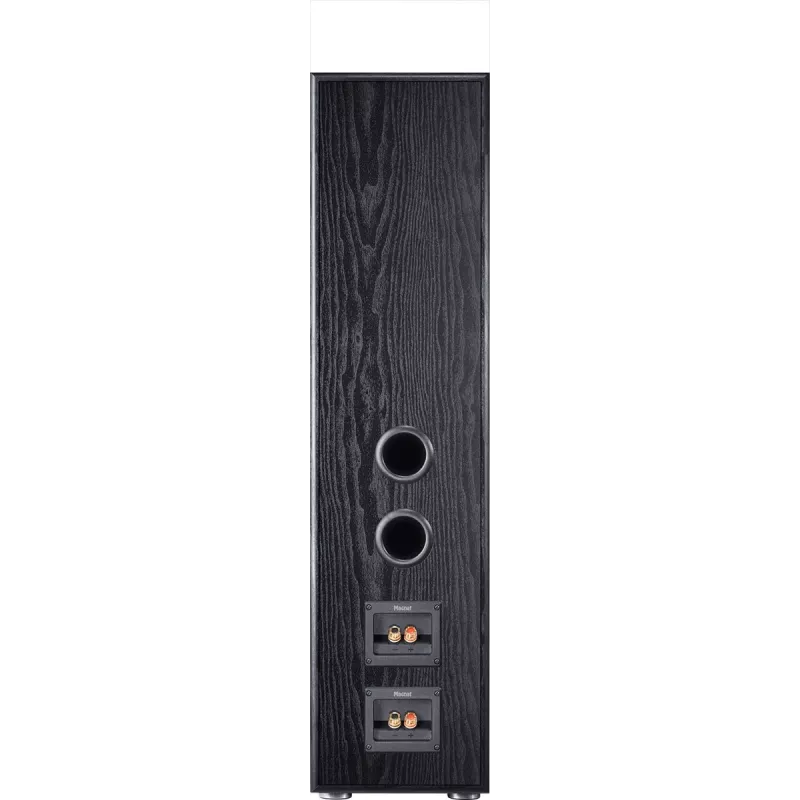

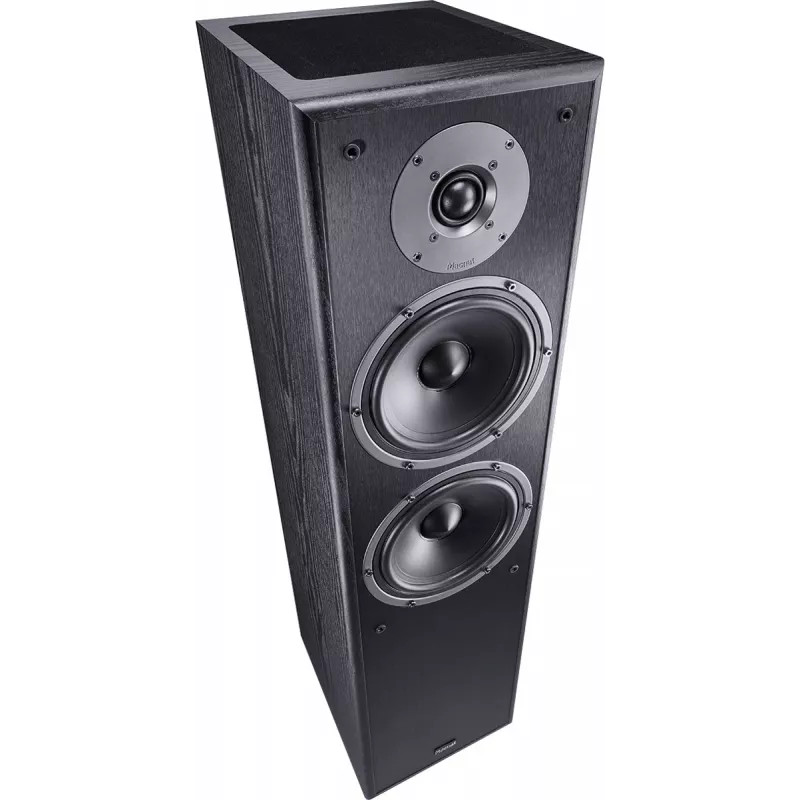

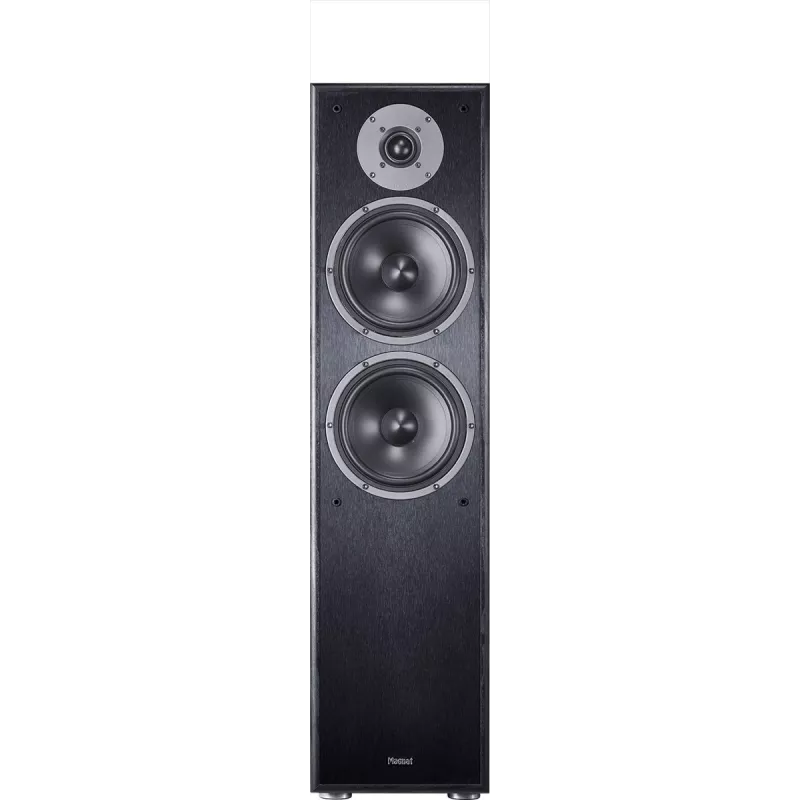

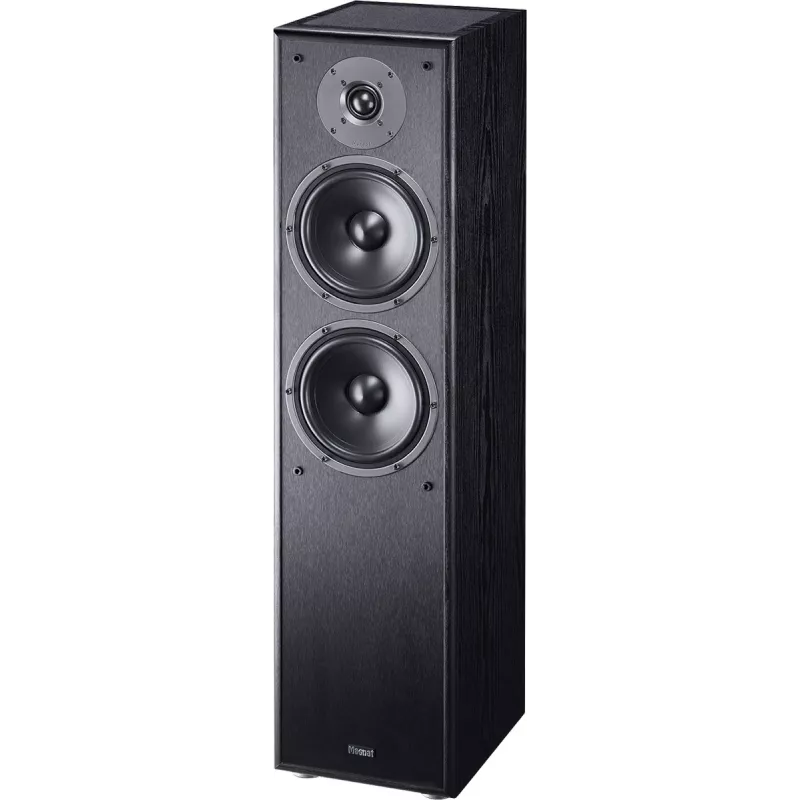

Floor Studio Speaker Monitor Magnat Monitor S80 ATM — active nearfield 2.5-way, 160 W RMS, 26–38,000 Hz, 4 Ω, black

The Magnat Monitor S80 ATM is an active floor studio speaker designed for nearfield monitoring in home and consumer studio environments. It features a 2.5-way configuration with four drivers — a dedicated tweeter, two mid-range drivers and a woofer — in a bass-reflex cabinet. The speaker delivers 160 W RMS power, a wide frequency range from 26 to 38,000 Hz and a crossover at 7,000 Hz. Wired connectivity and a 4 Ω impedance suit integration with conventional amplifiers and studio setups. The enclosure is finished in black and the unit measures 860 × 215 × 270 mm with a weight of 13.4 kg.

Advantages

The 2.5-way driver layout provides a clear separation between low, mid and high frequencies while the dedicated tweeter and dual mid-range drivers improve detail and imaging. High sensitivity (90 dB) and 160 W RMS power support dynamic playback, and the bass-reflex design extends low-frequency response down to 26 Hz. Dolby Atmos decoding is supported to complement immersive audio systems.

Suitable for

• Home studio nearfield monitoring
• Consumer hi-fi listening in medium to large rooms
• Multichannel or Dolby Atmos-capable setups

Key specifications

• Configuration: Active 2.5-way floor speaker with bass-reflex
• Power (RMS): 160 W
• Peak output (PMPO): 300 W
• Frequency response: 26–38,000 Hz
• Crossover frequency: 7,000 Hz
• Sensitivity: 90 dB
• Nominal impedance: 4 Ω
• Number of drivers: 4 (1 tweeter, 2 mid-range, 1 woofer)
• Tweeter diameter: 2.79 cm (1.1")
• Mid-range driver diameter: 16.5 cm (6.5")
• Speaker placement: Floor-standing
• Connectivity: Wired
• Colour: Black
• Dimensions (H×W×D): 860 × 215 × 270 mm
• Weight: 13.4 kg

How to use

Place the floor speaker on a stable surface, allowing clearance around the cabinet for proper bass reflex operation. Connect the speaker using the appropriate wired audio connection to your amplifier or audio interface, observing polarity and impedance matching. Adjust placement and toe-in relative to the listening position for optimal imaging. Use the amplifier power within the recommended range to avoid damage.

Recommendations

Do not dismantle the unit — risk of electric shock. Use within the recommended amplifier power range (30–300 W) and avoid exposing the speaker to moisture or extreme temperatures.
