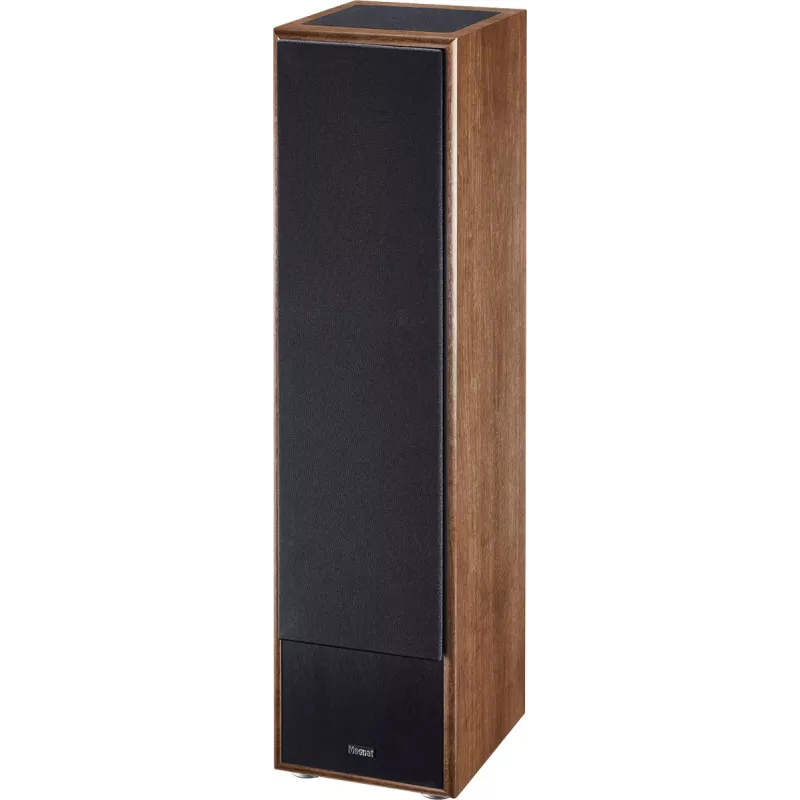

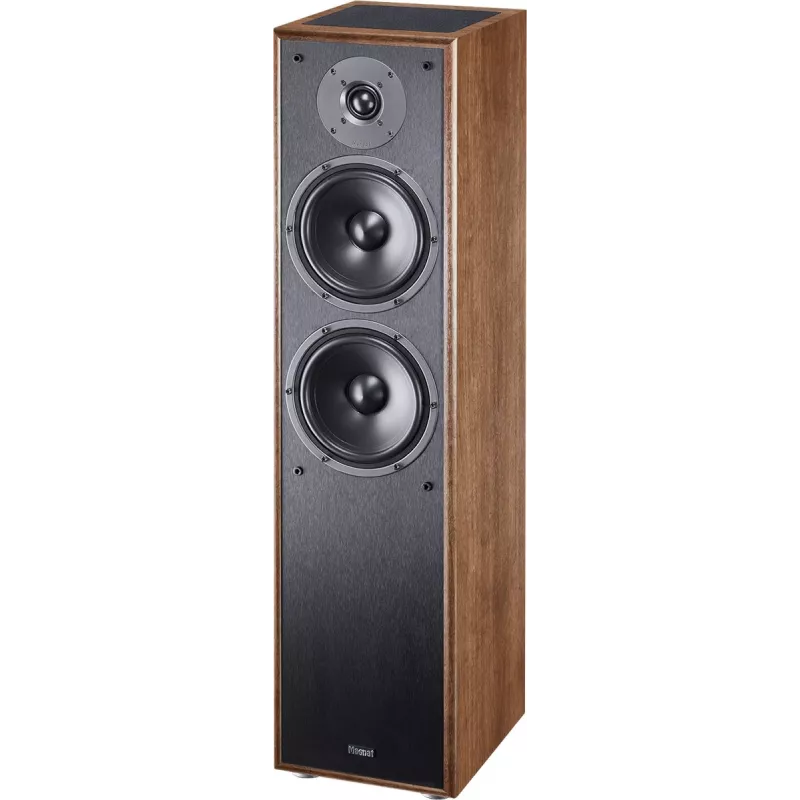

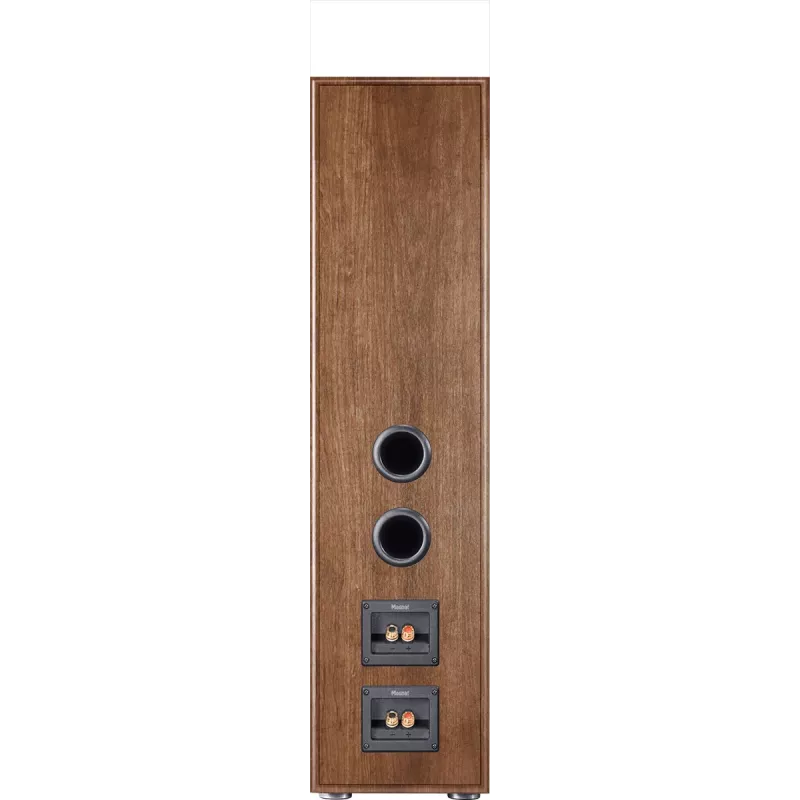

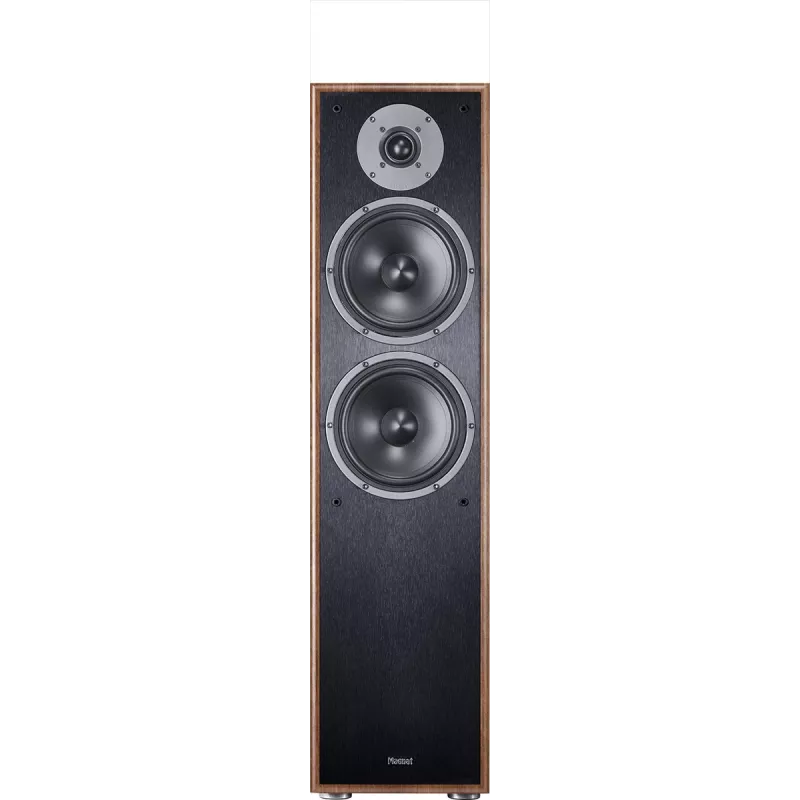

Floor speaker Magnat Monitor S80 ATM walnut, 2.5-way, 100W RMS, 4 Ω, 26–38000 Hz

Magnat Monitor S80 ATM walnut is a floor-standing 2.5-way speaker intended for home audio setups. It combines two 6.5" mid-range drivers, a 1.1" tweeter, a woofer and a bass-reflex enclosure to reproduce audio from 26 to 38,000 Hz. The speaker has 4 Ω impedance, 90 dB sensitivity and a rated power of 100 W RMS with a peak PMPO of 300 W. Wired connectivity and Dolby Atmos decoding support immersive audio. The cabinet is finished in walnut and the unit weighs 13.4 kg. Do not expose the speaker to moisture or water.

Advantages

The 2.5-way design with two mid-range drivers and a dedicated tweeter provides balanced mid and high-frequency reproduction while the bass-reflex design and woofer extend low-frequency performance. High sensitivity and Dolby Atmos decoding facilitate clear sound and compatibility with modern home theatre systems. The speaker's floor-standing format and walnut finish make it suitable for typical living-room installations.

Suitable for

• Home stereo systems
• Front or main channels in a home theatre setup
• Music playback across a wide frequency range
• Wired audio systems requiring 4 Ω speakers

Key specifications

• Speaker type: Floor-standing, 2.5-way
• Frequency range: 26–38,000 Hz
• Rated power (RMS): 100 W
• Peak power (PMPO): 300 W
• Impedance: 4 Ω
• Sensitivity: 90 dB
• Drivers: 2 × 6.5" mid-range, 1 × 1.1" tweeter, woofer
• Number of drivers: 4
• Crossover frequency: 7,000 Hz
• Bass-reflex enclosure
• Recommended amplifier power: 30–300 W
• Weight: 13.4 kg
• Colour/finish: Walnut

How to use

Position the floor speaker on a stable, level surface with adequate clearance from walls for bass-reflex operation. Connect the speaker to an amplifier or AV receiver using suitable speaker cables and ensure the amplifier's output matches the speaker's impedance and recommended power range. Configure any room or receiver settings, including Dolby Atmos processing if available, and play audio sources at moderate levels while avoiding prolonged clipping or distortion.

Recommendations

Avoid exposing the speaker to moisture or water. Use an amplifier within the recommended 30–300 W range and maintain proper ventilation around the cabinet to preserve performance and longevity.
