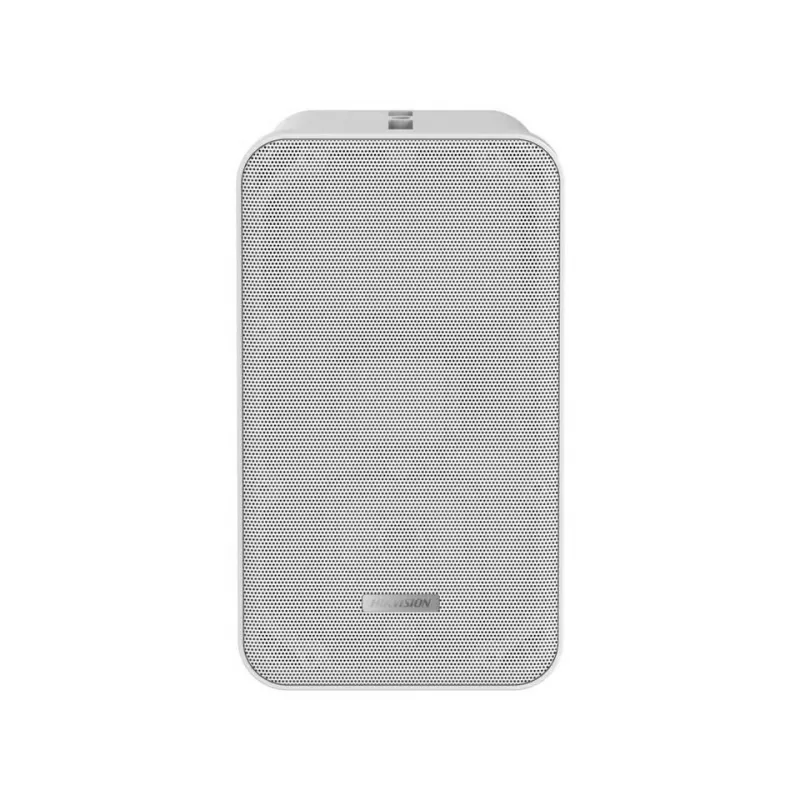

Loudspeaker Hikvision DS-QAE0420G1-V 20 W

The Hikvision DS-QAE0420G1-V 20 W is a wired wall/ceiling loudspeaker designed for small and medium-sized business environments. With a rated power of 20 W, two drivers and a frequency response spanning 100–20000 Hz, this white loudspeaker delivers clear voice and background music reproduction while fitting discreetly into commercial spaces.

Advantages

This wired loudspeaker offers a balanced frequency range and 89.5 dB sensitivity for intelligible speech and consistent playback at moderate volume levels. Its 8 Ω impedance and 20 W RMS power make it compatible with common commercial amplifiers and PA systems. The compact white design allows unobtrusive installation in offices, shops or reception areas.

Suitable for

• Background music in retail and hospitality
• Public address (voice announcements) in offices and schools
• Paging and ambient audio in small commercial spaces

Key specifications

• Model: Hikvision DS-QAE0420G1-V
• Rated power: 20 W (RMS)
• Drivers: 2
• Frequency response: 100–20000 Hz
• Impedance: 8 Ω
• Sensitivity: 89.5 dB
• Connectivity: Wired
• Colour: White
• Weight: 1.8624 kg
• MPN: 327400188
• EAN: 6942160444741

How to use

Install the DS-QAE0420G1-V using appropriate mounting hardware on a wall or ceiling according to the building layout and local electrical codes. Connect the loudspeaker to a compatible amplifier or PA system using standard speaker cable, observing polarity and the 8 Ω impedance. Adjust amplifier output and any system equalisation to achieve clear speech intelligibility and balanced background music levels.

Recommendations

For reliable performance, use the speaker with an amplifier rated to match the 20 W RMS power and 8 Ω load, avoid prolonged operation at maximum volume, and position units to minimise direct exposure to moisture or extreme temperatures.
