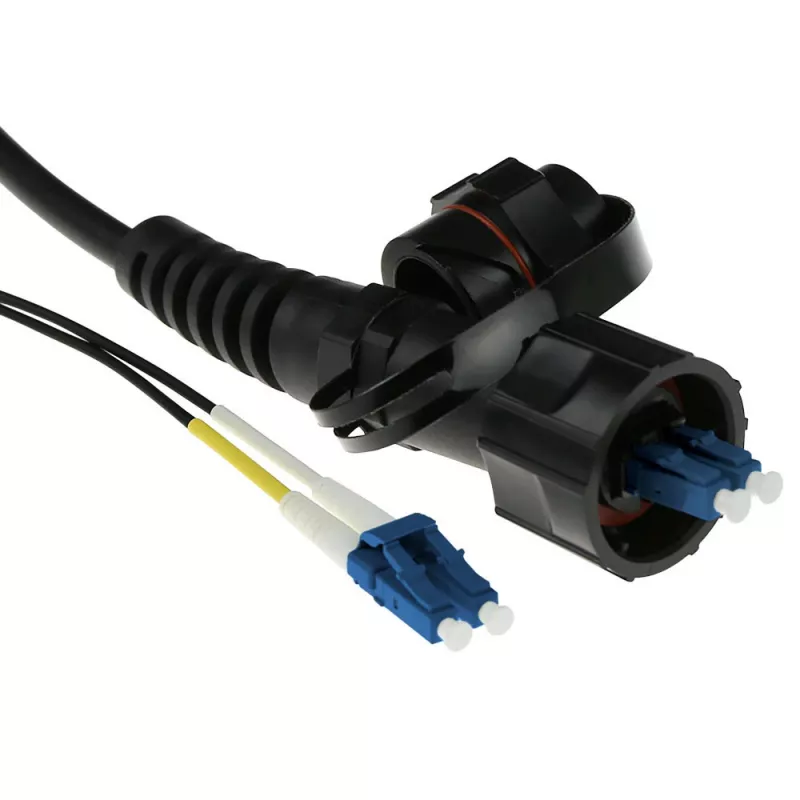

Fibre optic cable ACT RL7330 30 m 2x LC 2x LC ODVA Black

The ACT RL7330 is a 30 m OS2 fibre optic patch cable with 2x LC connectors on both ends and an ODVA-rated IP67 connector. With a 9 µm core diameter it supports full-duplex high-speed data transfer and is intended for outdoor and harsh-environment use where dust- and water-resistance is required. This cable is suitable for connecting remote radio heads (RRH/ RRU) or antennas to ground cabling in mobile base stations, and for Fibre-to-the-Antenna/Tower (FTTA/FTTT) deployments where reliable optical links are needed.

Advantages

The cable provides IP67 protection at the connector and OS2 single-mode performance for long-distance, low-loss transmission. Using fibre eliminates the bandwidth limitations of copper for 4G, modern Wi‑Fi and high-user-density wireless internet, and enables distributed antenna systems (DAS) and more efficient base station designs with reduced active equipment and power consumption.

Suitable for

• Outdoor antenna links between RRH/RRU and ground cabling
• FTTA / FTTT installations in mobile base stations
• High-bandwidth connections where IP67-rated optical connectors are required

Key specifications

• Brand: ACT
• Model / MPN: RL7330
• Length: 30 m
• Fibre type: OS2 (single-mode)
• Core diameter: 9 µm
• Connectors: 2x LC on each end with ODVA-compatible IP67 connector
• Colour: Black
• EAN: 8716065394252

How to use

Inspect connectors and cable jacket before installation. Route the cable from the antenna or RRH/RRU to the ground cabling, keeping bend radius within manufacturer recommendations for single-mode fibre. Mate the ODVA IP67 connector to the corresponding IP67 receptacle and secure any locking mechanism to maintain the dust- and water-resistant seal. Test the optical link with appropriate equipment to verify insertion loss and continuity after installation.

Recommendations

Use fibre for high-density or multi-user wireless sites and prefer IP67-rated connectors for outdoor or exposed installations. If different connector types, cable diameters (5/7 mm) or armored jackets are required, select an appropriate variant; ACT also supplies other connector standards (CPRI, NSN, RRU, IPFX, ODC, AARC, Hoptic) and alternative lengths.
