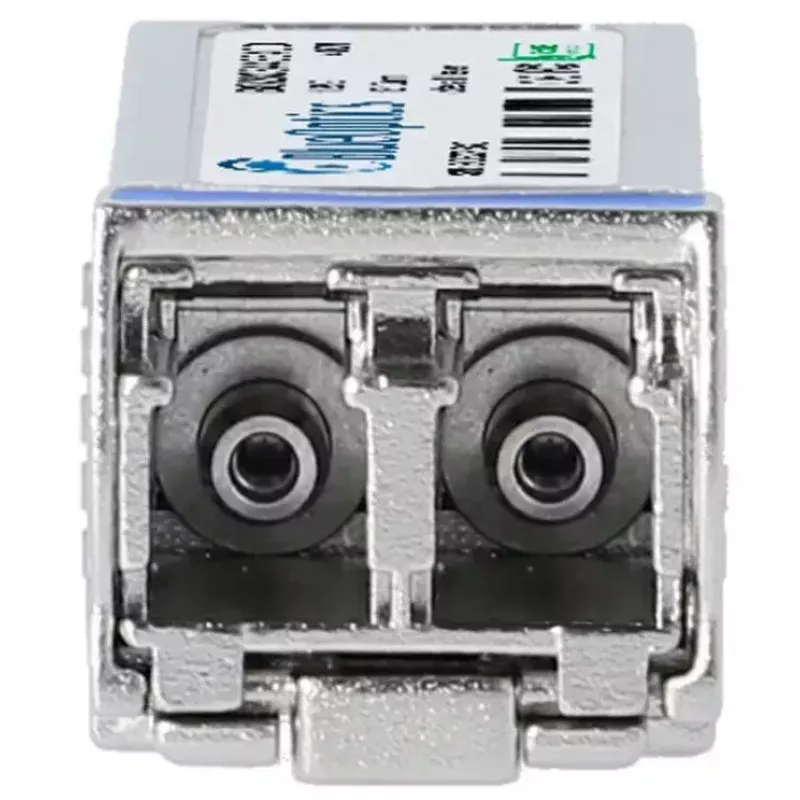

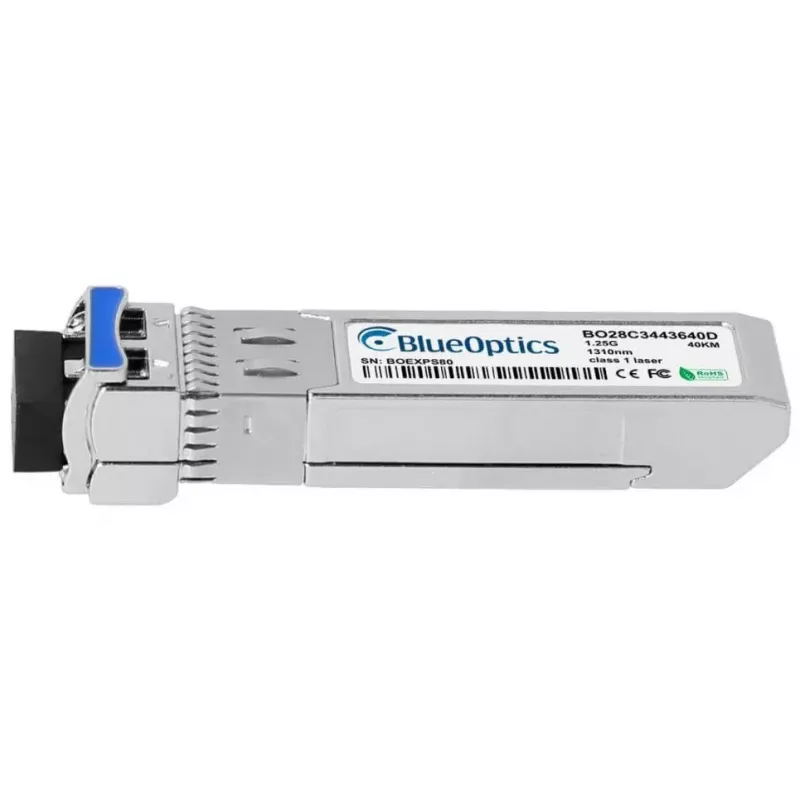

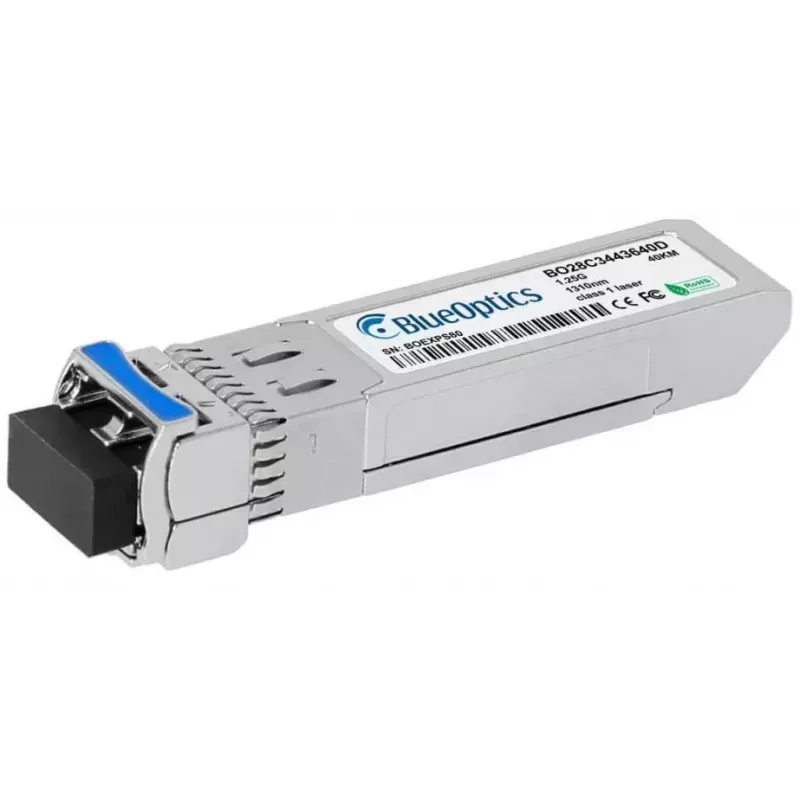

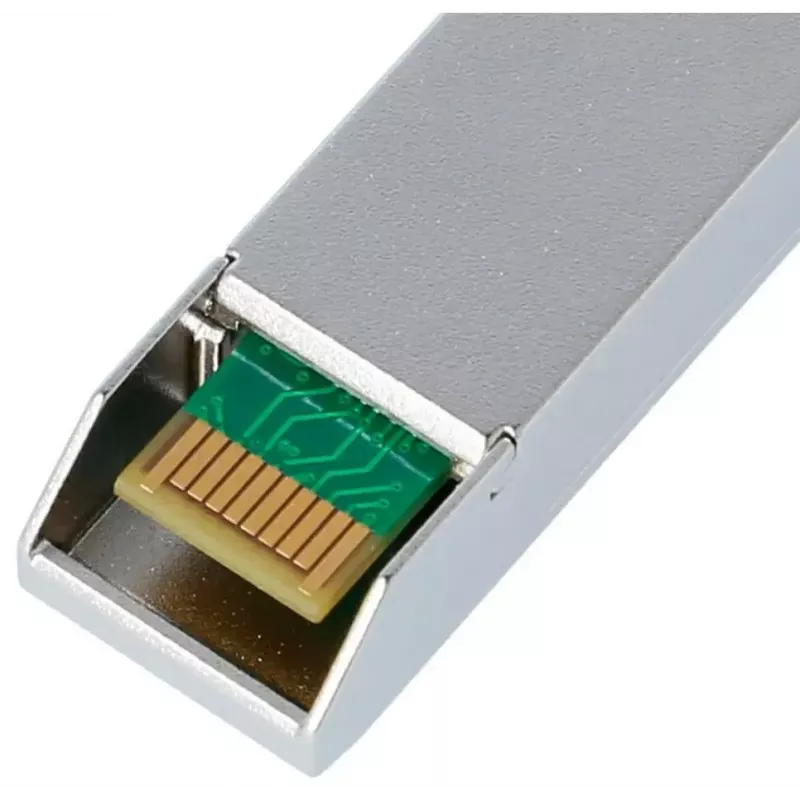

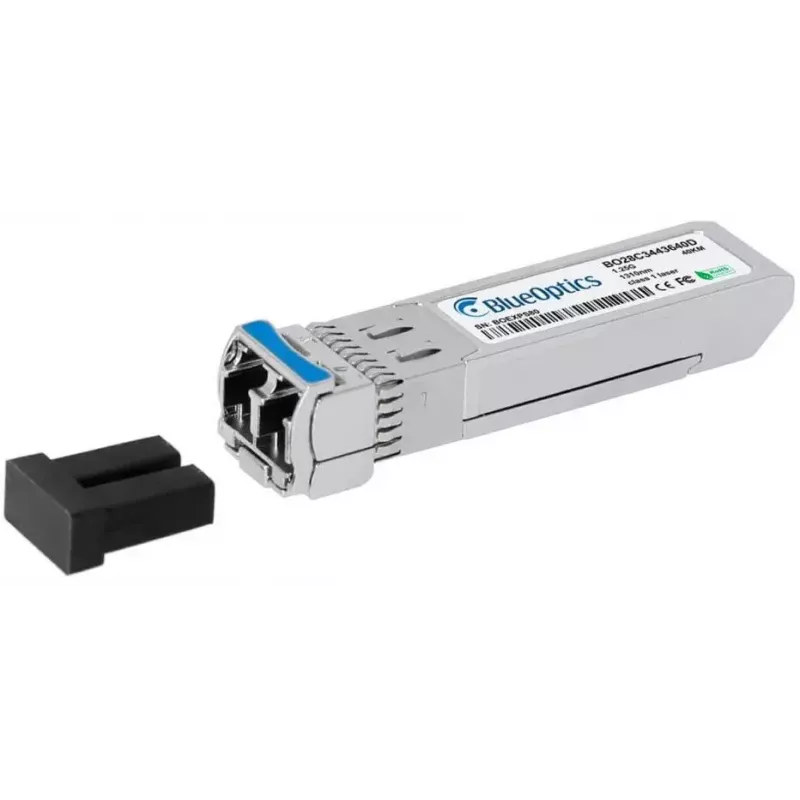

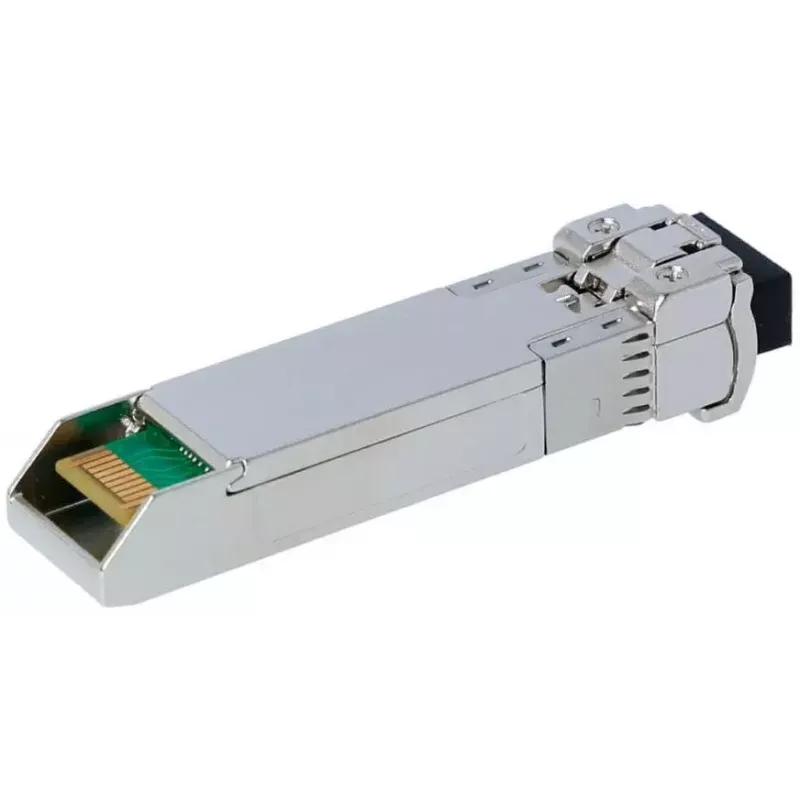

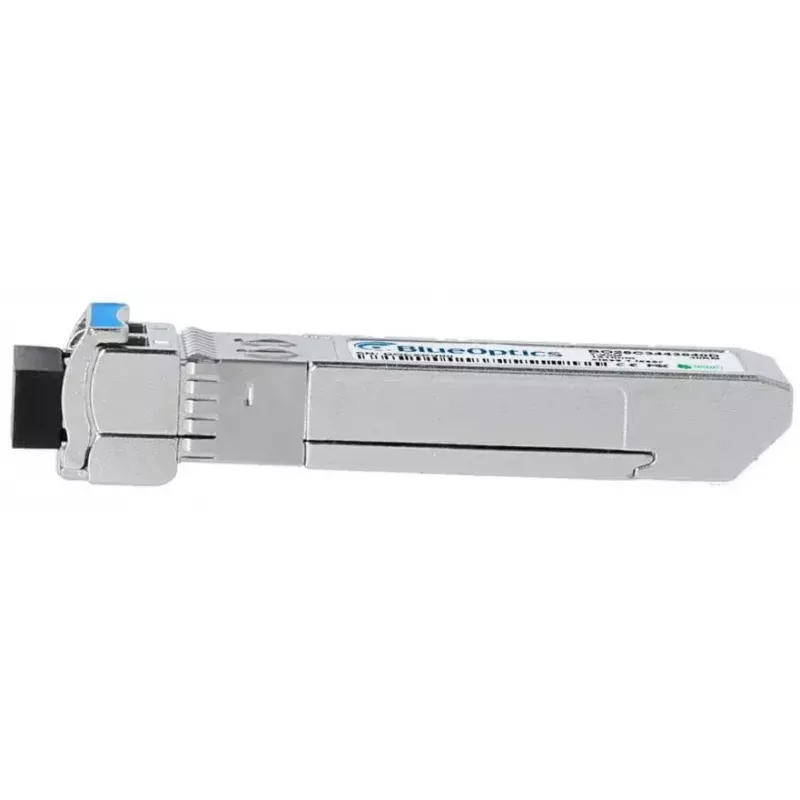

Fiber optic transceiver BlueOptics CSFP-BX1310-40-D-BO 1250 Mbit/s cSFP Silver

The BlueOptics CSFP-BX1310-40-D-BO is a fiber optic transceiver module with a cSFP interface for single-mode links. It supports a maximum data transfer rate of 1250 Mbit/s, is housed in a durable silver metal casing and weighs approximately 20 g. Designed according to MSA mechanical and electrical standards, this cSFP module provides a compact, hot-pluggable solution for fiber connections where a small form-factor transceiver is required.

Advantages

The module offers a compact cSFP form factor that simplifies installation in compatible networking equipment. With a metal enclosure and a low weight, it is easy to handle and install while providing mechanical robustness. The declared MTBF of 1,000,000 hours indicates a design intended for long-term deployment. Native support for 1250 Mbit/s single-mode optical links ensures suitability for common Gigabit-class optical protocols and interoperable setups that follow MSA standards.

Suitable for

Key specifications

How to use

Install the transceiver into a compatible cSFP slot on the networking device while the device is powered according to the vendor's hot-plug guidance. Connect single-mode LC duplex fiber patch cords to the module's optical connector, observing correct transmit/receive orientation. Ensure the host hardware and firmware support the use of third-party cSFP modules and the intended 1.25 Gbit/s optical protocol. After insertion and link-up, verify optical link status and signal levels using the host device management interface or supported diagnostic tools.

Recommendations

Use single-mode LC duplex patch cords of appropriate length and quality to achieve optimal range and signal performance. Confirm compatibility with the target device vendor and, if available, enable any digital diagnostic monitoring features in the host equipment to track supply voltage, optical power and temperature for remote diagnostics.
