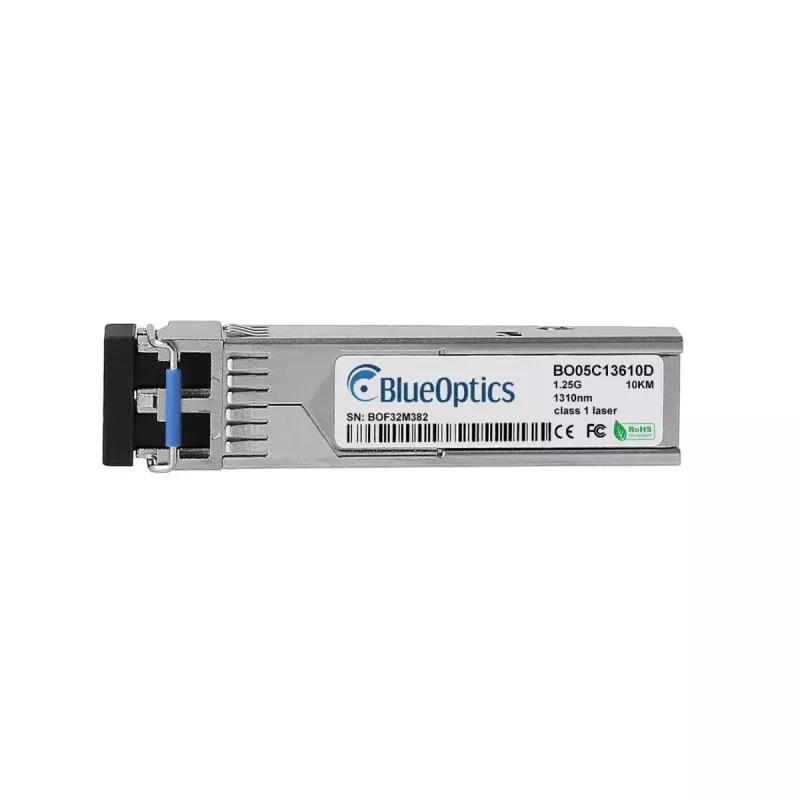

Fiber optic transceiver module BlueOptics 15327-SFP-LC-LX= 10000 m Aluminium

The BlueOptics 15327-SFP-LC-LX= is a single-mode fiber optic SFP transceiver module designed for long-distance data transmission up to 10,000 m. Housed in an aluminium body and weighing approximately 20 g, the module implements an LC duplex optical interface and conforms to MSA form-factor standards for SFP devices. It supports 1000BASE-LX optical signalling and is intended for use in network equipment that accepts standard SFP transceivers.

Advantages

The aluminium housing provides a lightweight and durable enclosure that aids heat dissipation and mechanical protection. Compliance with SFP/ MS A physical standards and the LC duplex interface ensures interoperability with a wide range of switches, routers and storage systems that support 1000BASE-LX SFP modules. The module’s single-mode optical design enables reliable high-speed links over long distances while reducing susceptibility to electromagnetic interference.

Suitable for

• Long-distance 1 Gbps Ethernet links over single-mode fiber
• Interconnects between network switches, routers and storage systems
• Fiber backbone segments in campus, data center or service provider networks
• Replacement or upgrade of compatible SFP transceivers in supported hardware

Key specifications

• Interface type: SFP (MSA form factor)
• Optical standard: 1000BASE-LX
• Fiber type: single-mode fiber
• Connector: LC duplex
• Wavelength (Tx/Rx): 1310 nm
• Maximum reach: up to 10,000 m
• Housing material: aluminium
• Weight: approx. 0.02 kg

How to use

Insert the transceiver into a compatible SFP slot on the target device following the equipment manufacturer’s hot-swap or insertion procedures. Connect LC duplex single-mode patch cords to the module’s transmit and receive ports, ensuring proper fiber polarity. Verify link status and negotiate speed in the host device’s interface settings. If digital diagnostics (DDM/DOM) are available and supported by the host hardware, enable or monitor the diagnostics to check parameters such as optical power and temperature.

Recommendations

Use high-quality single-mode LC patch cords and maintain correct fiber polarity for optimal performance. Confirm host device compatibility with 1000BASE-LX SFP modules and enable DDM/DOM support in system firmware when real-time diagnostic monitoring is required. Handle the aluminium module carefully to avoid contamination of optical interfaces and cap unused connectors when not in use.
