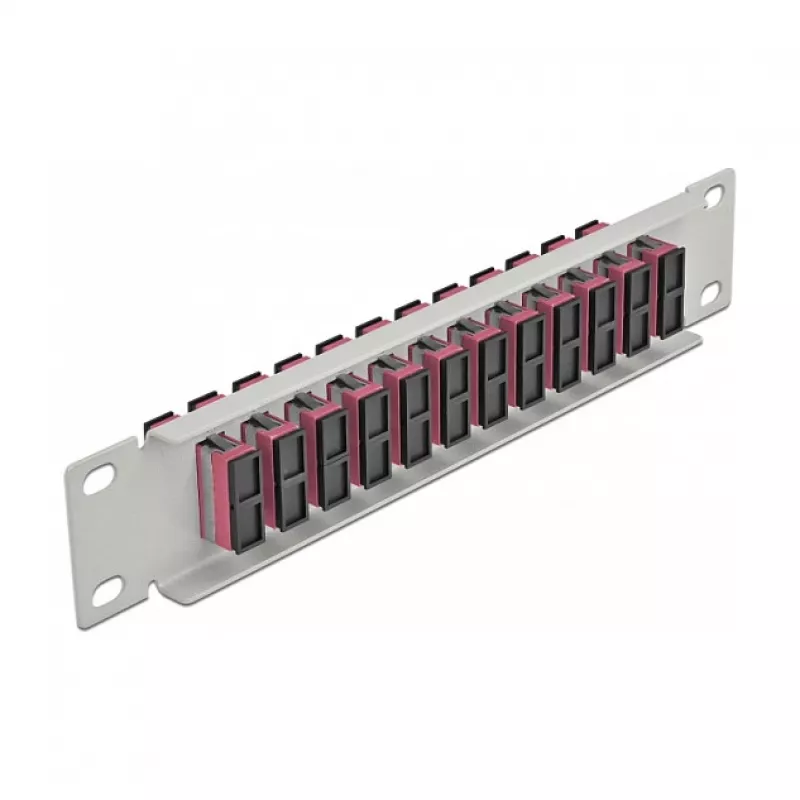

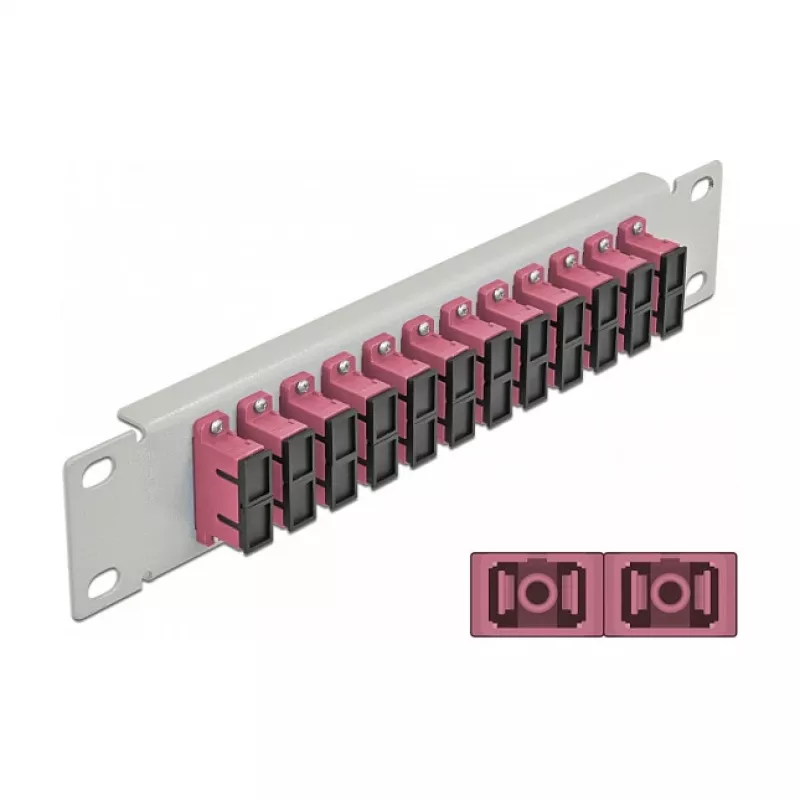

Fiber Optic Patch Panel DeLOCK 10 inch 12 Port SC Duplex Violet 1U Grey

The DeLOCK 10" 1U fiber optic patch panel provides twelve SC Duplex ports for easy connection and organization of fiber optic cables in a 10" network cabinet. The panel is made of metal, has a grey front with violet couplers and is intended for rack mounting to manage multiple SC Duplex fiber connections in a compact form factor.

Advantages

The panel offers twelve SC Duplex couplers for straightforward mating of fiber optic connectors, a 1U height compatible with standard 10" racks, and a metal housing for mechanical stability. Its compact dimensions allow tidy cable management and efficient use of rack space while the color-coded couplers help with quick identification.

Suitable for

• Installation in 10" network cabinets and racks
• Organizing SC Duplex fiber connections in data centers and telecom rooms
• Patch management for LAN, WAN and fiber backbone links

Key specifications

• Brand: DELOCK
• Model / MPN: 66795
• EAN: 4043619667956
• Ports: 12 × SC Duplex
• Rack unit: 1U for 10" cabinets
• Material: Metal housing
• Color: Grey front with violet couplers
• Dimensions (W×H×D): 254 × 44 × 10 mm

How to use

Install the patch panel into a 10" rack taking up 1U of height and secure it with appropriate rack screws. Route fiber cables to the rear or side entry points, and connect SC Duplex male connectors to the corresponding SC Duplex couplers on the panel. Ensure connectors are clean before mating to maintain signal quality. Label ports as needed for easy identification.

Recommendations

Keep fiber connectors protected with dust caps when not in use, perform connector cleaning with proper fiber cleaning tools before connection, and avoid tight bends or strain on fiber cables to preserve performance and longevity.
