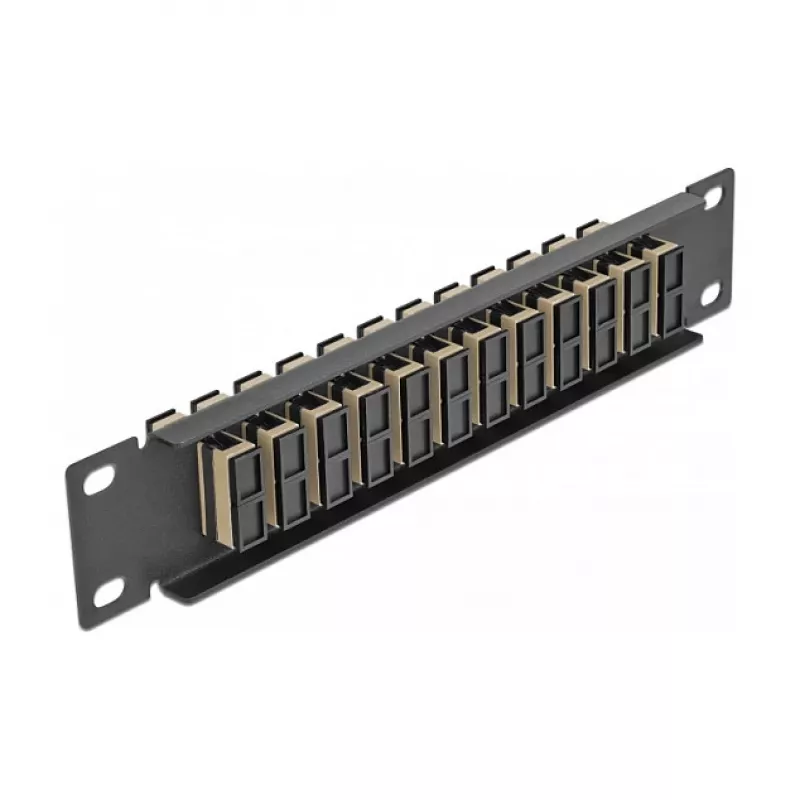

Fiber Optic Patch Panel DeLOCK 10 inch 12 Port SC Duplex Beige 1U Black

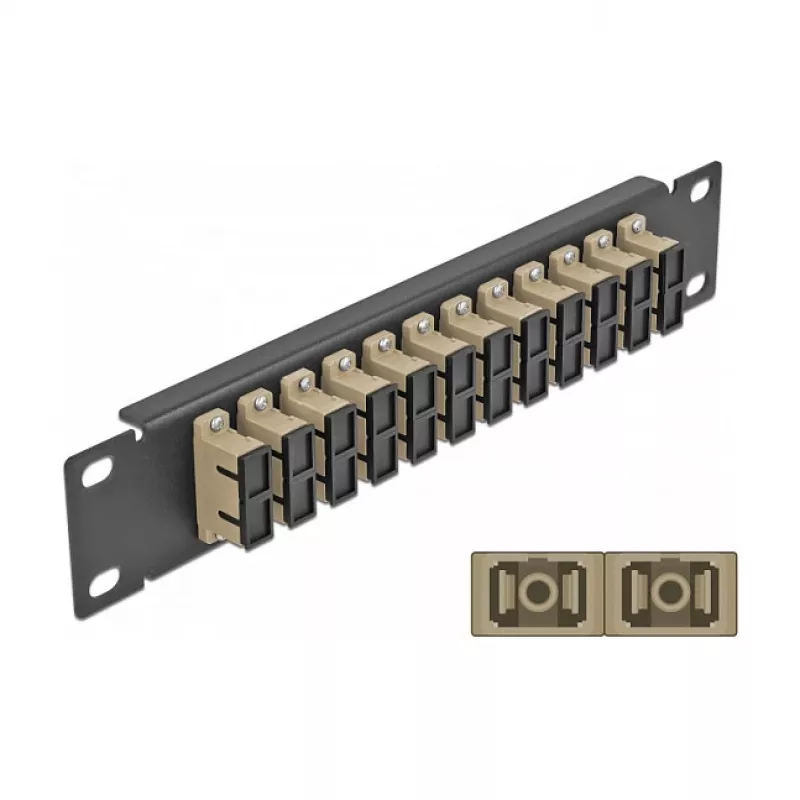

This Delock 10" fiber optic patch panel provides twelve SC Duplex couplers in a 1U metal housing for installation in a 10" network cabinet. It allows easy connection of fiber optic male connectors and supports organized fiber management in rack-mounted setups. The unit combines beige faceplate elements with a black chassis and is suitable for standard 19" rack installations.

Advantages

The patch panel offers twelve SC Duplex ports in a compact 1U form factor, a sturdy metal construction for durability, and straightforward front-facing couplers that simplify insertion and removal of fiber connectors. Its dimensions and rack compatibility make it suitable for professional network cabinets while keeping cabling tidy and accessible.

Suitable for

• Rack-mounted fiber distribution in 10" network cabinets
• Connecting SC Duplex fiber optic patch cords
• Telecommunication and data centre horizontal/vertical cabling runs
• Organising fiber terminations in small-to-medium network racks

Key specifications

• Brand: DELOCK
• Model / MPN: 66773
• EAN: 4043619667734
• Ports: 12 × SC Duplex
• Form factor: 1U, 10" rack mount
• Material: Metal chassis
• Colour: Beige (faceplate) and Black (chassis)
• Dimensions (approx.): 44 mm width × 10 mm height × 254 mm depth

How to use

Mount the patch panel into a 10" network cabinet using standard rack screws in the 1U position. Insert SC Duplex fiber patch cords into the front-facing couplers, ensuring proper alignment of the SC connectors until they click into place. Route and secure fiber cables to avoid sharp bends and to maintain the panel’s accessibility for future changes.

Recommendations

Use appropriate fiber patch cords with SC Duplex terminations and apply standard fiber handling procedures: avoid exceeding the minimum bend radius, keep connector end-faces clean, and label ports for straightforward identification and maintenance.
