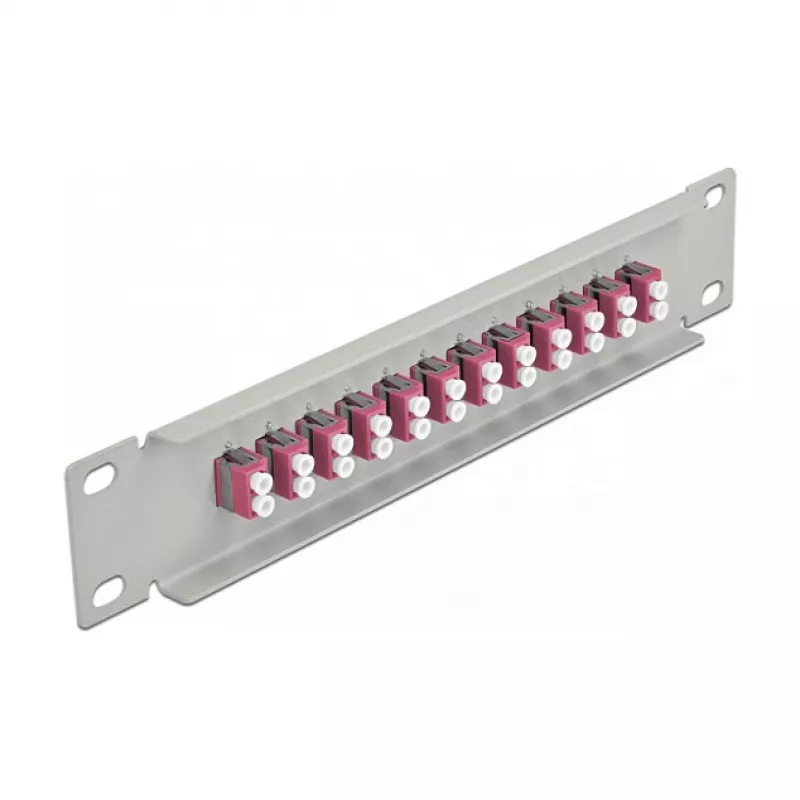

Fiber Optic Patch Panel DeLOCK 10 inch 12 Port LC Duplex Violet 1U Grey

This Delock fiber optic patch panel is designed for 10" network cabinets and provides twelve LC Duplex couplers for straightforward fiber connections. The 1U grey metal housing with violet ports offers a compact, rack-mountable solution for organized fiber management in networking environments.

Advantages

The panel supports twelve LC Duplex ports allowing easy mating of fiber optic male connectors and simplifies patching and rearrangement. Its 1U metal construction fits standard 10" racks and provides a durable, space-saving installation. Colour-coded violet ports improve visual identification of fiber connections.

Suitable for

• Data center and server room fiber cabling
• Telecommunications cabinets and distribution frames
• Local area network (LAN) fiber backbone installations
• Patch management and fiber cross-connects

Key specifications

• Ports quantity: 12 LC Duplex
• Rack size: 10" (1U)
• Product colour: Grey housing, Violet ports
• Dimensions (W×H×D): 44 mm × 10 mm × 254 mm
• Brand: DELOCK, MPN: 66790, EAN: 4043619667901

How to use

Mount the patch panel in a standard 10" rack or cabinet using appropriate rack screws. Terminate or route fiber optic pigtails to the LC Duplex couplers and connect male LC connectors into the corresponding ports. Use cable management accessories as needed to secure incoming and outgoing fiber cables and maintain bend radius.

Recommendations

Handle fiber connectors and pigtails with care, keep connector end-faces clean and use dust caps when ports are unused. Observe standard fiber installation practices to avoid excessive bending and mechanical strain.
