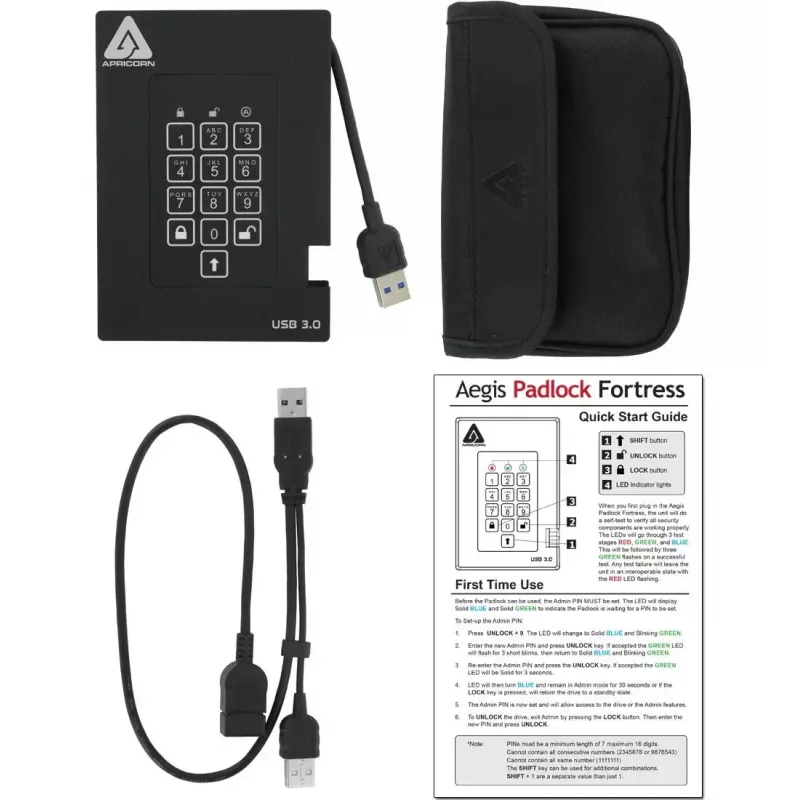

External Hard Drive Apricorn 1TB USB Type-A 3.2 Gen 1 Aegis Padlock Fortress

The Apricorn Aegis Padlock Fortress 1TB external hard drive combines hardware-based 256-bit AES-XTS encryption with USB 3.2 Gen 1 (USB 3.0) performance in a compact, rugged enclosure. The drive features an integrated USB Type-A cable, a wear-resistant numeric keypad for PIN entry, and a sealed encryption module. It is FIPS 140-2 Level 2 validated and designed for software-free setup and cross-platform use, providing secure, portable storage without requiring administrator rights or additional software.

Advantages

The Aegis Padlock Fortress offers real-time 256-bit AES-XTS hardware encryption and FIPS 140-2 Level 2 validation, ensuring cryptographic protection that meets U.S. federal standards. Its embedded keypad enables software-free, PIN-based access on any operating system while blocking host-based keylogging. Additional security features include independent Admin and User PINs, forced enrollment, drive reset and auto-lock options, brute-force defense with key destruction, tough epoxy sealing of the encryption circuitry, and Variable Timing Circuit (VTC) protection against timing attacks. The integrated USB Type-A cable and USB 3.2 Gen 1 interface deliver fast, convenient connectivity compatible with USB 2.0 ports.

Suitable for

• Secure transport of sensitive corporate or government data
• Backup and archival of regulated data in healthcare, finance, and education
• Field work requiring rugged, portable encrypted storage
• Environments where software installation or admin rights are restricted

Key specifications

• Capacity: 1 TB
• Interface: USB Type-A, USB 3.2 Gen 1 (backwards compatible with USB 2.0/1.1)
• Encryption: Real-time 256-bit AES-XTS hardware encryption (FIPS PUB 197 algorithm)
• FIPS validation: FIPS 140-2 Level 2 validated
• Access: Wear-resistant numeric keypad with Admin and User PINs; forced enrollment
• Physical protection: Epoxy-sealed encryption module, water and dust resistant keypad
• Other: Integrated USB cable; weight approx. 0.1899 kg; colour: black

How to use

Connect the drive to a computer using the integrated USB Type-A cable. On first use, the drive requires forced enrollment: create a unique Admin PIN (and optionally User PINs) directly on the keypad. After enrollment, unlock the drive by entering the User PIN on the keypad; the host OS will then recognise the drive as a removable storage device and allow file transfer. No software installation or admin rights are required. To manage users, use the Admin PIN to enroll up to five unique User IDs or to unlock the drive if a User PIN is forgotten. Use the drive reset command to erase all data and regenerate the encryption key when redeploying the device.

Recommendations

Choose a strong, non-obvious PIN during forced enrollment, keep the Admin PIN secure and separate from regular User PINs, and enable auto-lock after short idle intervals when used in shared or public environments. Regularly back up important data in addition to using the encrypted drive, and follow organisational policies for FIPS-validated storage devices.
