Extender EK Water Blocks EK-Quantum Torque Extender Static MM 28 Brass Black Nickel 28mm

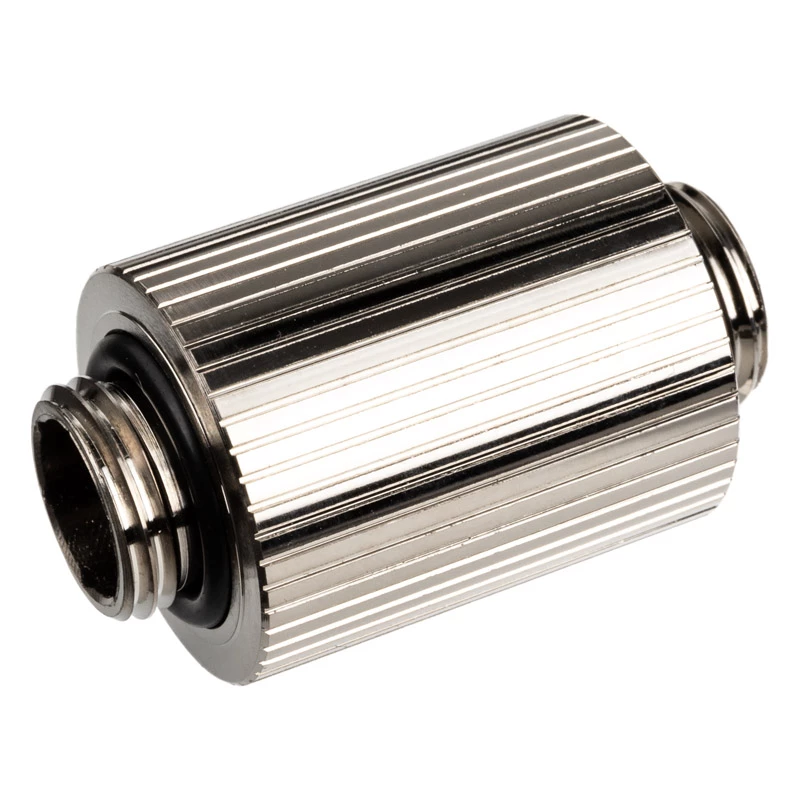

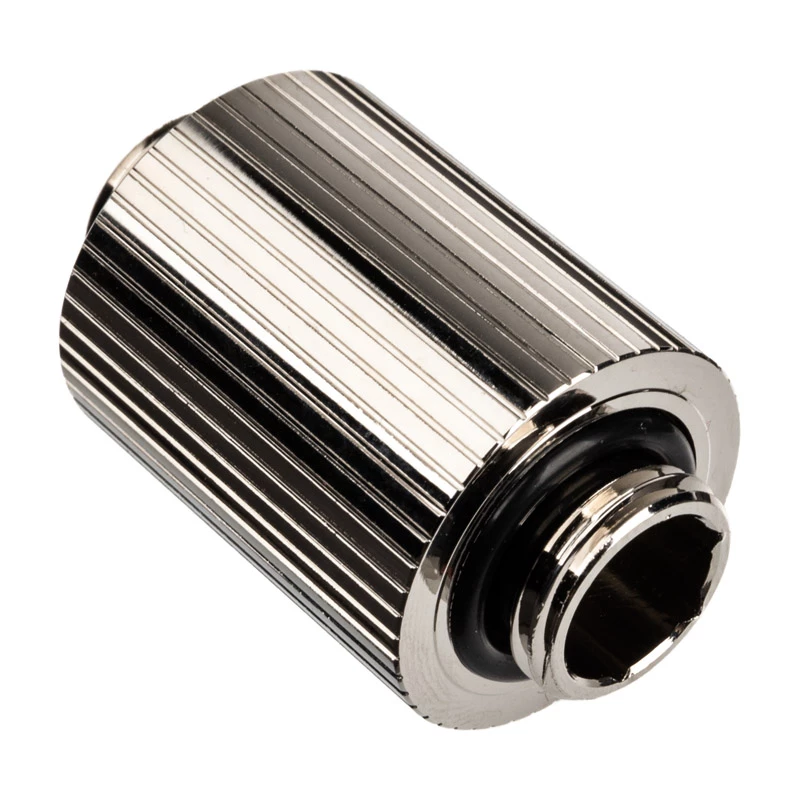

EK-Quantum Torque Extender Static MM 28 is a male-to-male brass extender for liquid cooling systems, designed to join two components that both have female G1/4 threads. The extender has a fixed (non-revolving) construction, a height of 28 mm and a diameter of 23 mm, finished in black nickel for a consistent appearance in modern PC builds.

Advantages

The brass construction offers durability and reliable thread engagement, while the black nickel finish provides corrosion resistance and a uniform aesthetic. Its fixed design ensures a stable, leak-resistant mechanical connection between two G1/4 female-threaded coolant ports without rotational movement.

Suitable for

• Connecting two G1/4 female-threaded water-cooling components
• Extending or adapting fittings in custom liquid cooling loops
• Use in desktop PC liquid cooling systems where a fixed-length, non-rotating extender is required

Key specifications

• Model: EK-Quantum Torque Extender Static MM 28
• Material: Brass
• Finish: Black nickel
• Thread type: Male G1/4 on both ends
• Height (length): 28 mm
• Diameter: 23 mm
• MPN / EAN: 3831109825587

How to use

Verify that both components you intend to join have female G1/4 threads. Hand-start the extender into one component to ensure correct thread alignment, then tighten by hand until snug. Repeat the process for the second component. Use a suitable wrench only if additional torque is required, taking care not to overtighten to avoid damaging threads or stressing components. The extender is static and will not rotate independently once installed.

Recommendations

Inspect threads and seals before installation; use appropriate thread sealant or PTFE tape only if specified by the component manufacturer. Avoid excessive torque and check the connection for leaks after filling the loop.
