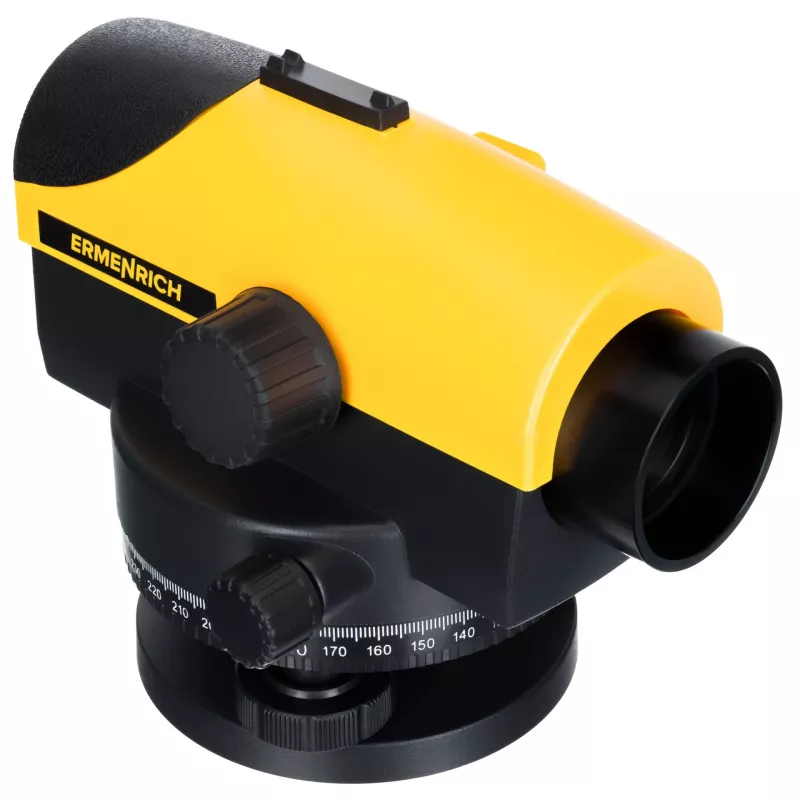

Ermenrich PL30 Optical Level 30x Magnification

The Ermenrich PL30 is a high-precision automatic optical level designed for professional surveying, construction, and engineering applications. With 30x magnification and a 36 mm objective lens, it delivers clear, bright images for accurate leveling over long distances. The air-damped compensator ensures fast and reliable leveling, while the IP54 rating provides protection against dust and water splashes, making it suitable for use in challenging outdoor environments.

Advantages

High accuracy with a standard deviation of 1.5 mm/km for double-run leveling, ensuring reliable results. The erect image system and stadia ratio of 1:100 facilitate easy reading and distance measurement. The compensator range of ±15 arcminutes allows for quick setup even on uneven terrain. The IP54 protection guarantees durability and long service life in dusty or damp conditions.

Suitable for

• Surveying and mapping
• Construction site leveling
• Road and building foundation work
• Agricultural land leveling
• Educational training in geodesy

Key specifications

• Magnification: 30x
• Objective lens diameter: 36 mm
• Standard deviation (double run): 1.5 mm/km
• Compensator: Air-damped, range ±15'
• Minimum focusing distance: 0.3 m
• Field of view: 1°20'
• Circular bubble sensitivity: 8'/2 mm
• Water and dust resistance: IP54
• Tripod thread: 5/8"
• Operating temperature: -20 to +50 °C
• Image: Erect
• Stadia ratio: 1:100
• Stadia constant: 0
• Leveling accuracy: 0.5 arcseconds

Recommendations

For optimal performance, use with a sturdy tripod (5/8" thread) and a leveling staff. Store in a dry, clean environment. The PL30 is an excellent choice for professionals seeking a reliable and accurate optical level at a competitive price.
