Equip Patch Cable LC-LC 25m Multimode Duplex OM3 Turquoise

The Equip Patch Cable LC-LC 25m Multimode Duplex OM3 Turquoise is a high-performance fiber optic patch cable designed for reliable data transmission in demanding network environments. With LC to LC connectors, duplex configuration, and OM3 multimode fiber, this cable supports high-speed applications up to 10 Gbps and beyond. The 25-meter length provides flexibility for rack-to-rack or long-distance connections within data centers, LANs, and SANs. The turquoise LSZH jacket ensures safety and easy identification.

Advantages

This cable offers low insertion loss and high return loss, ensuring signal integrity and minimal data errors. The OM3 grade fiber provides optimized performance for 10 GbE networks with a bandwidth of 1500 MHz-km at 850nm. The duplex design allows simultaneous bidirectional communication. The LSZH jacket reduces toxic smoke in case of fire, making it suitable for confined spaces.

Suitable for

• Data center interconnects
• Local Area Networks (LAN)
• Storage Area Networks (SAN)
• Telecommunications infrastructure

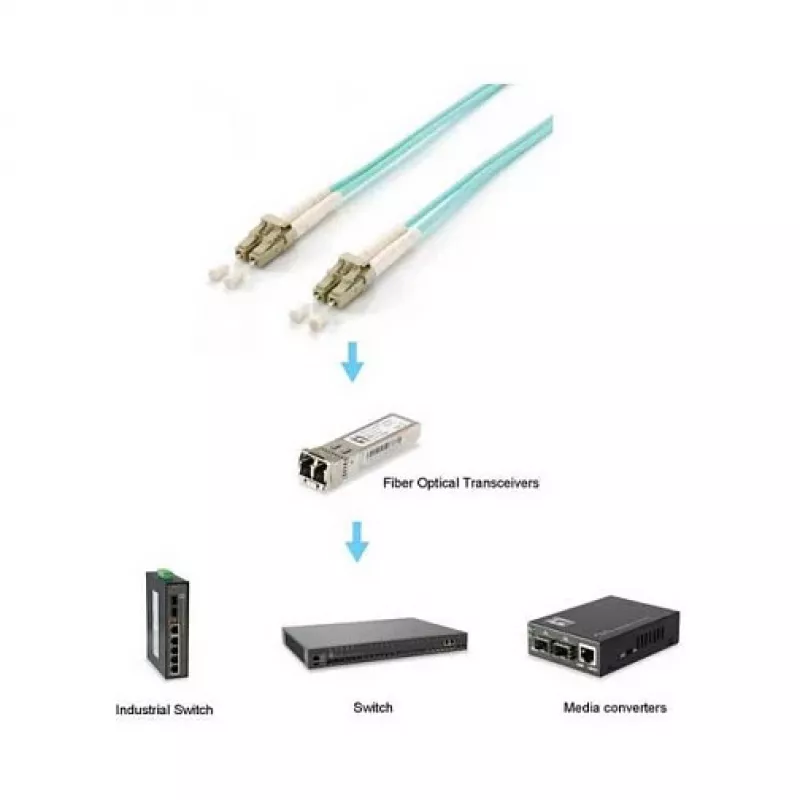

• High-speed server and switch connections

Key specifications

• Connector Type: LC to LC
• Fiber Type: Multimode OM3
• Cable Length: 25 m
• Cable Configuration: Duplex
• Core/Cladding Diameter: 50/125 µm
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Cable Color: Turquoise
• Insertion Loss: < 0.3 dB typical
• Return Loss: > 30 dB typical
• Bandwidth: 1500 MHz-km @ 850nm, 500 MHz-km @ 1300nm
• Operating Temperature: -20°C to 70°C
• Compliance: RoHS, CE

Recommendations

For optimal performance, ensure clean and properly terminated connectors. Use appropriate cable management to maintain minimum bend radius of 30 mm. This cable is ideal for 10 Gigabit Ethernet and Fibre Channel applications.
