Equip Cat.6A U/UTP Slim Patch Cable, 3.0m, Black

The Equip Cat.6A U/UTP Slim Patch Cable 3.0m in black is a slim, high-performance Ethernet patch cable for data centers, enterprise networks and high-density installations. With a reduced diameter (32 AWG) and stranded bare copper conductors, it supports 10 Gigabit Ethernet and frequencies up to 500 MHz while enabling neater cable management and improved airflow in crowded racks and patch panels.

Advantages

The slim U/UTP construction provides reliable 10GBase-T performance with low crosstalk in low to moderate EMI environments while occupying less space than standard Cat6A cables. Stranded copper conductors and a molded boot with strain relief deliver flexibility and durability for frequent reconfiguration. The cable is RoHS compliant, LSOH/LSZH rated and meets ISO/IEC 11801 and EN 50173 requirements.

Suitable for

• Data centers and server rooms
• Enterprise and office network patch panels
• High-density rack installations and cable management
• PoE and PoE+ powered devices

Key specifications

• Length: 3 m

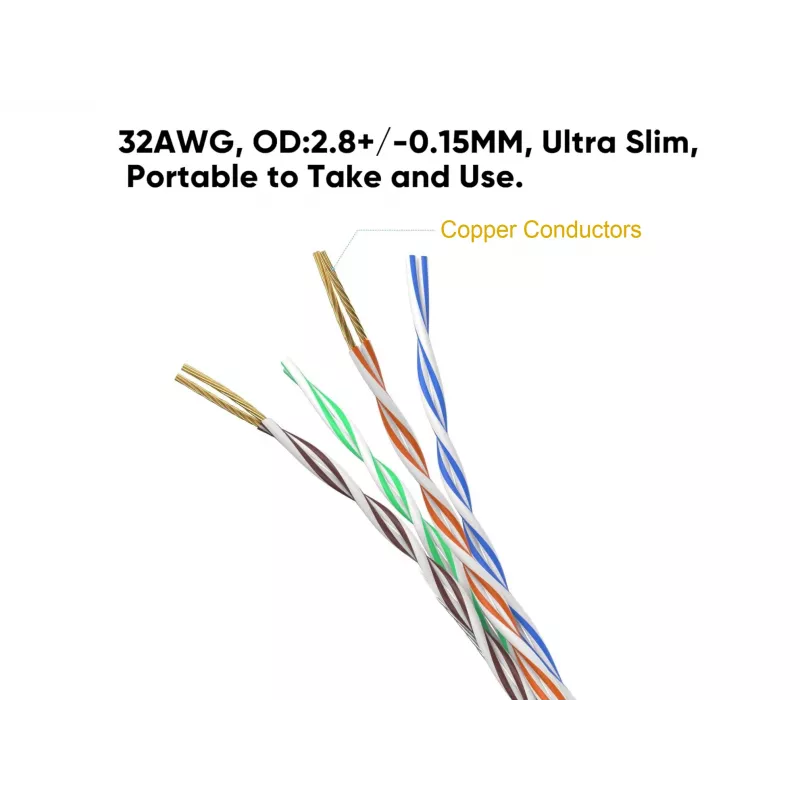

• Cable type: Cat6a U/UTP (unshielded twisted pair), slim (32 AWG)
• Bandwidth: up to 500 MHz
• Transmission speed: up to 10 Gbit/s (10GBase-T)
• Connectors: RJ-45 straight male – RJ-45 straight male
• Conductor: stranded bare copper
• PoE support: suitable for PoE, PoE+
• Standards: ISO/IEC 11801, EN 50173
• Material/ratings: Low Smoke Zero Halogen (LSZH/LSOH), RoHS compliant
• Colour: Black

How to use

Connect one RJ-45 plug to the network device (switch, patch panel or NIC) and the other plug to the corresponding port on the paired device. Route the slim cable through cable management channels or ducts to maintain airflow and reduce rack congestion. The stranded construction allows for flexible routing and frequent reconnection without damaging the conductor.

Recommendations

For best performance, avoid running the cable parallel to high-voltage power lines and maintain standard installation distances from sources of electromagnetic interference. Use appropriate cable management to prevent excessive bending radius and to preserve the slim cable's performance over time.
