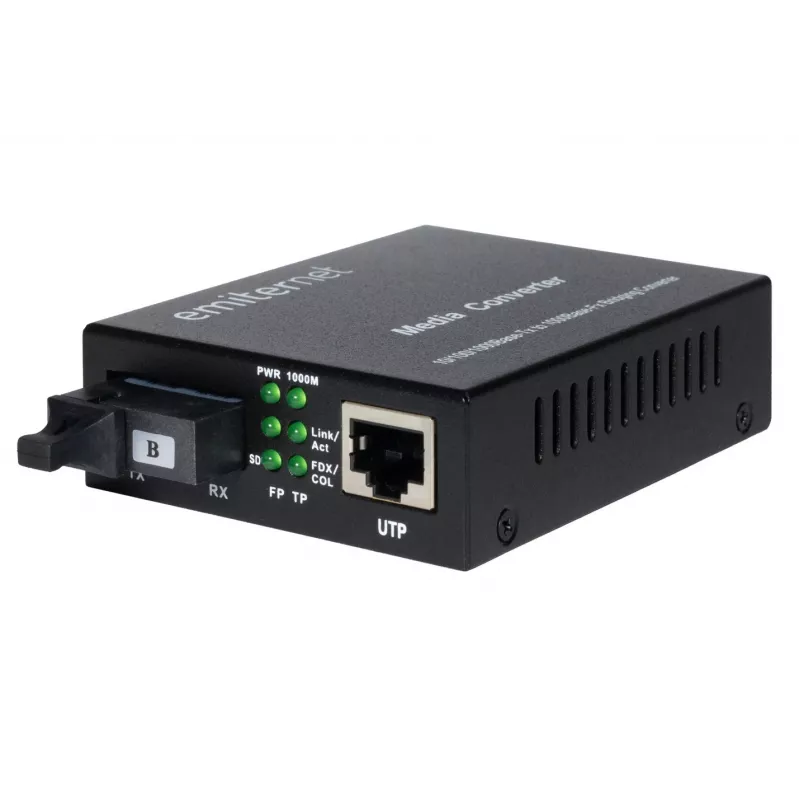

EMITER EM/1GB-ETH-1XSC-1550 Fiber Optic Converter WDM Ethernet 10/100/1000 Mbps RJ45/1xSC SM 9/125 (Tx 1550nm / Rx 1310nm) 20km

The EMITER EM/1GB-ETH-1XSC-1550 is a high-performance WDM fiber optic converter designed for reliable long-distance Ethernet transmission. It converts 10/100/1000Base-T copper signals to 1000Base-LX fiber signals over single-mode fiber, supporting distances up to 20 km. Utilizing WDM technology, it transmits at 1550nm and receives at 1310nm over a single SC fiber connector, effectively doubling fiber utilization.

Advantages

This converter offers seamless integration of copper and fiber networks, extending network reach without signal degradation. Its compact design and plug-and-play installation minimize downtime. The WDM technology reduces fiber infrastructure costs by using a single strand for bidirectional communication.

Suitable for

• Extending Ethernet networks over long distances up to 20 km
• Connecting remote offices or campus networks
• Upgrading existing copper networks to fiber
• ISP and telecom applications requiring reliable point-to-point links

Key specifications

• Brand: EMITER
• Model: EM/1GB-ETH-1XSC-1550
• EAN: 5906764102446
• Fiber optic converter type: WDM
• Ethernet interface: 10/100/1000 Mbps RJ45
• Fiber interface: 1x SC simplex
• Fiber mode: Single-mode (SM) 9/125 µm
• Transmission wavelength: Tx 1550nm / Rx 1310nm
• Maximum distance: 20 km
• Compliance: IEEE 802.3ab, IEEE 802.3z

Recommendations

For optimal performance, use with single-mode fiber patch cables (9/125 µm) and ensure proper cleaning of optical connectors. This converter is ideal for point-to-point links where long distance and high bandwidth are required.
