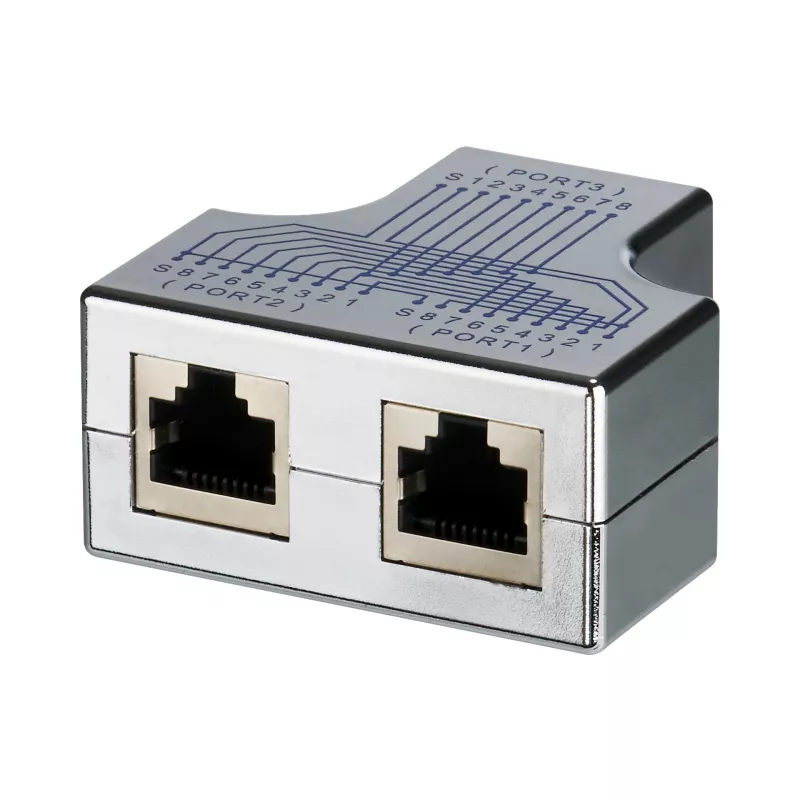

EFB Elektronik T-Modular Adapter RJ45 Socket/2x Socket 1:1 Shielded

The EFB Elektronik T-Modular Adapter is a high-quality RJ45 splitter designed for reliable signal distribution in network installations. This adapter features one RJ45 female input and two RJ45 female outputs, wired in a 1:1 straight-through configuration. Its shielded design ensures minimal electromagnetic interference, making it suitable for professional environments.

Advantages

This passive splitter allows you to connect two devices using a single cable run, ideal for specific applications such as splitting 10/100 Mbps Ethernet or telephony signals. The gold-plated contacts and copper conductors guarantee excellent conductivity and durability. Plug-and-play installation saves time and effort.

Suitable for

• Network technicians and installers requiring a compact splitting solution
• Applications where two 4-wire Ethernet connections are needed over one 8-wire cable
• Telephony and low-speed data networks

Key specifications

• Product Type: RJ45 T-Modular Adapter / Splitter
• Input Connector: 1x RJ45 Female (8P8C)
• Output Connectors: 2x RJ45 Female (8P8C)
• Wiring Configuration: 1:1 Straight-Through
• Shielding: Yes
• Housing Material: Plastic
• Contact Plating: Gold-plated
• Conductor Material: Copper
• Max Data Rate (per split line): 100 Mbps
• Category Support: Cat5e / Cat6
• Environmental Compliance: RoHS Compliant

Recommendations

For optimal performance, use this adapter with high-quality Cat5e or Cat6 cables. Note that this is a passive splitter and may not support Gigabit Ethernet or PoE. Ensure your network equipment is compatible with 4-wire operation.
