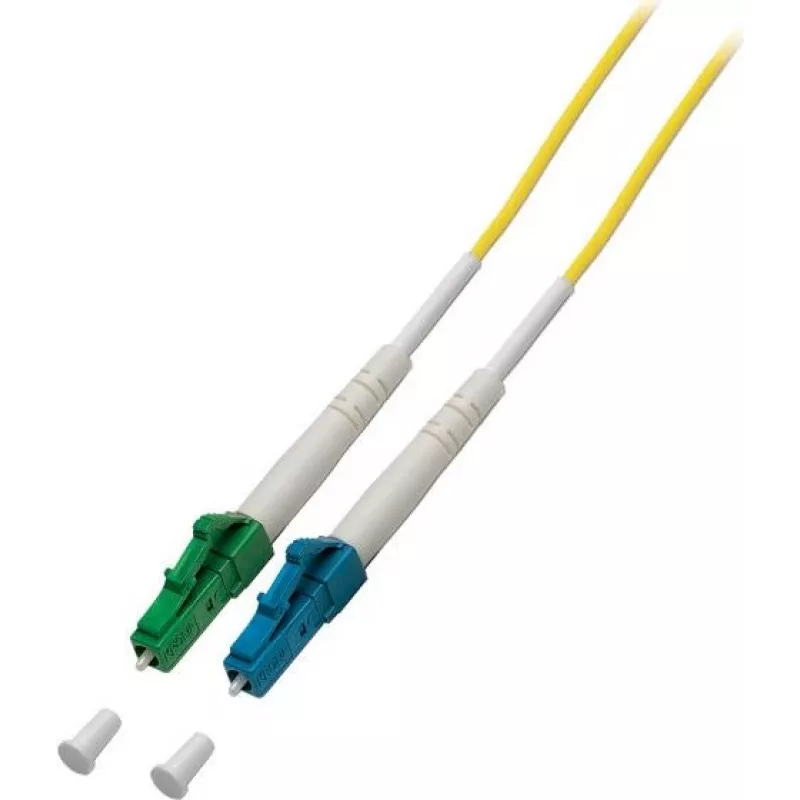

EFB Elektronik Fiber Optic Patch Cable LC Duplex Single-Mode 9/125µm 1m Yellow LSZH

The EFB Elektronik O1403.10 is a high-quality fiber optic patch cable designed for reliable single-mode transmission. Featuring LC duplex connectors on both ends, this 1-meter cable is ideal for data centers, telecommunications, LAN, and FTTx applications. With a 9/125µm core/cladding and G.657.A1 bend-insensitive fiber, it ensures low insertion loss and high return loss for optimal performance.

Advantages

This patch cable offers exceptional signal integrity with a maximum insertion loss of 0.25 dB and minimum return loss of 50 dB. The LSZH (Low Smoke Zero Halogen) jacket provides enhanced safety in enclosed spaces, while the yellow color ensures easy identification. Compliance with RoHS, REACH, IEC 61754-20, and IEC 61753-1 guarantees quality and environmental standards.

Suitable for

• Data center interconnections
• Telecommunications networks
• Local Area Networks (LAN)
• Fiber-to-the-x (FTTx) deployments

Key specifications

• Cable Type: Fiber Optic Patch Cable
• Fiber Mode: Single-Mode (SM)
• Fiber Class: G.657.A1 (Bend-Insensitive)
• Core/Cladding Diameter: 9/125 µm
• Connector A: LC
• Connector B: LC
• Connector Type: Duplex
• Cable Length: 1 meter
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Cable Color: Yellow
• Insertion Loss (Max): 0.25 dB
• Return Loss (Min): 50 dB
• Polarity: A-B (Crossed)
• Operating Temperature: -20°C to 70°C
• Standards Compliance: RoHS, REACH, IEC 61754-20, IEC 61753-1
• Cable Diameter (Outer): 3.0 mm
• Attenuation (1310nm): ≤ 0.35 dB/km
• Attenuation (1550nm): ≤ 0.22 dB/km
• Ferrule Material: Zirconia Ceramic

Recommendations

For optimal performance, ensure proper handling and avoid sharp bends. This cable is compatible with standard LC duplex interfaces and is suitable for both indoor and protected outdoor installations.
