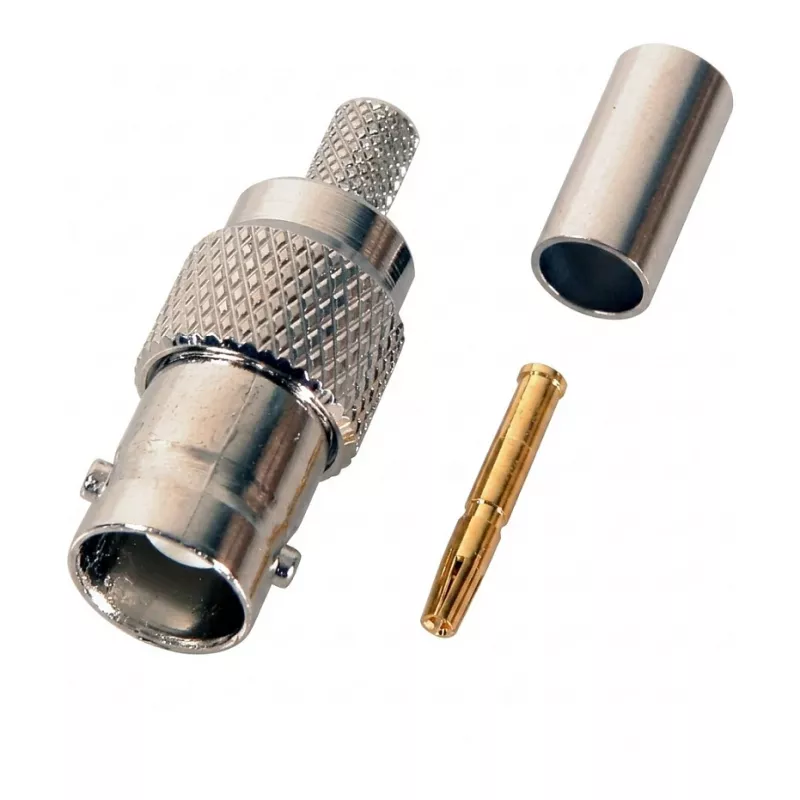

EFB-Elektronik BNC Female Crimp Connector Straight RG59/RG62 75/93 Ohm (52511.1)

The EFB-Elektronik BNC Female Crimp Connector (52511.1) is a high-quality coaxial connector designed for professional video and data transmission applications. It supports both RG59 and RG62 cables with nominal impedances of 75 Ohm and 93 Ohm, making it versatile for CCTV, broadcast, and measurement systems. The straight body style and crimp termination ensure reliable, low-loss connections.

Advantages

Gold-plated contact and nickel-plated brass body provide excellent corrosion resistance and signal integrity. PTFE insulator ensures stable performance across a wide temperature range (-40°C to +85°C). Rated for 500 mating cycles, this connector offers long-term durability.

Suitable for

• Professional video surveillance (CCTV) systems
• Broadcast and studio equipment
• Test and measurement instruments
• Data transmission networks using RG59 or RG62 cables

Key specifications

• Connector Type: BNC Female (Socket)
• Body Style: Straight
• Termination: Crimp
• Cable Compatibility: RG59, RG62
• Impedance: 75 Ohm / 93 Ohm
• Frequency Range: DC - 4 GHz
• Voltage Rating: 500 V peak
• Operating Temperature: -40°C to +85°C
• Contact Plating: Gold
• Body Plating: Nickel
• Insulator: PTFE
• Durability: 500 mating cycles

Recommendations

For optimal performance, use with high-quality RG59 or RG62 coaxial cable and a proper crimping tool. Ensure the cable is prepared according to manufacturer specifications to achieve a secure, low-resistance connection.
