DeLOCK D-Sub 37 pin female to Terminal Block for DIN rail Width 51 mm Depth 116 mm Height 30 mm

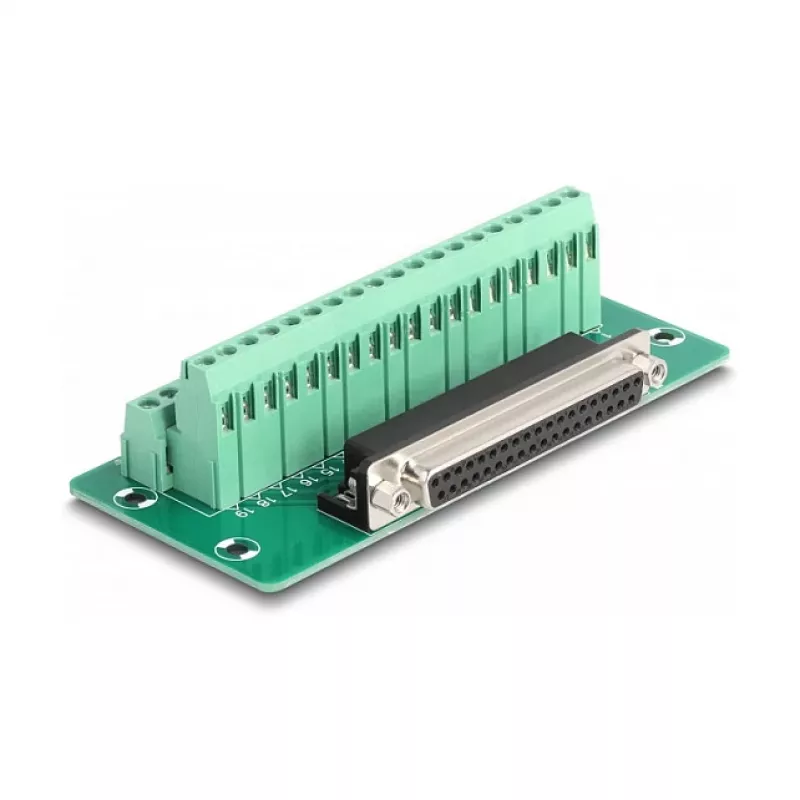

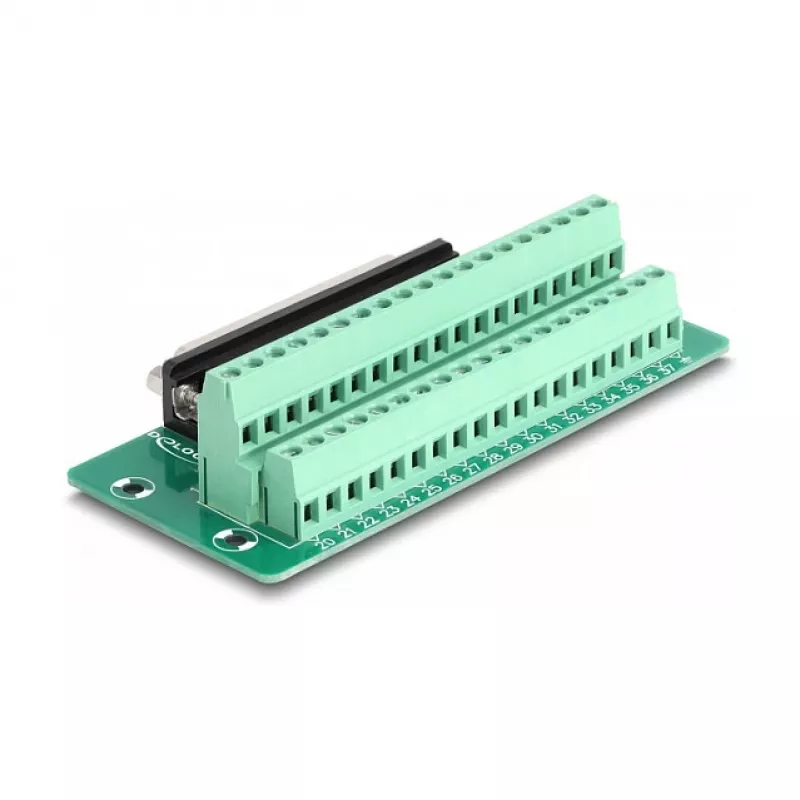

The DeLOCK D-Sub 37 pin female to Terminal Block is an adapter that converts a D-Sub 37 female connector to a screw terminal block, allowing connection of wires with stripped ends. It is intended for DIN rail mounting and has a compact footprint with a width of 51 mm, depth of 116 mm and height of 30 mm.

Advantages

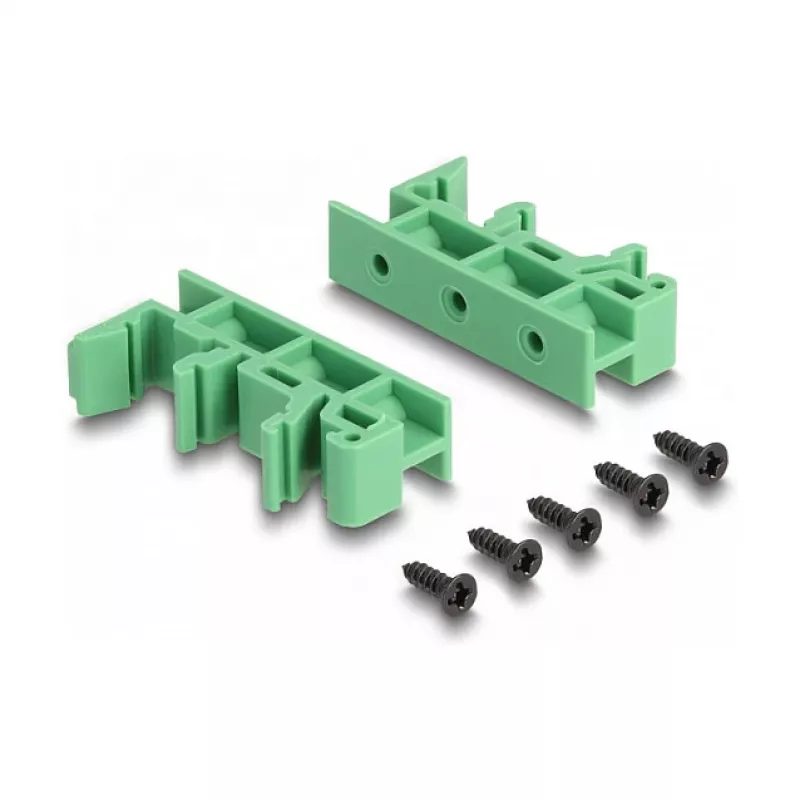

This adapter provides a straightforward way to terminate individual conductors without soldering, enabling easy wiring changes and maintenance. The included mounting clips allow attachment to standard 15 mm or 35 mm DIN rails, and the compact dimensions save panel space in electrical and network installations.

Suitable for

• Connecting sensors, actuators or devices that use a D-Sub 37 interface to screw terminal wiring
• Control cabinets and DIN rail installations in industrial or building automation
• Prototyping and field wiring where quick access to individual conductors is required

Key specifications

• Brand: DELOCK
• Model / MPN: 66914
• EAN: 4043619669141
• Connector: D-Sub 37 pin female to terminal block
• Mounting: DIN rail (clips for 15 mm and 35 mm rails included)
• Dimensions (W x D x H): 51 mm x 116 mm x 30 mm

How to use

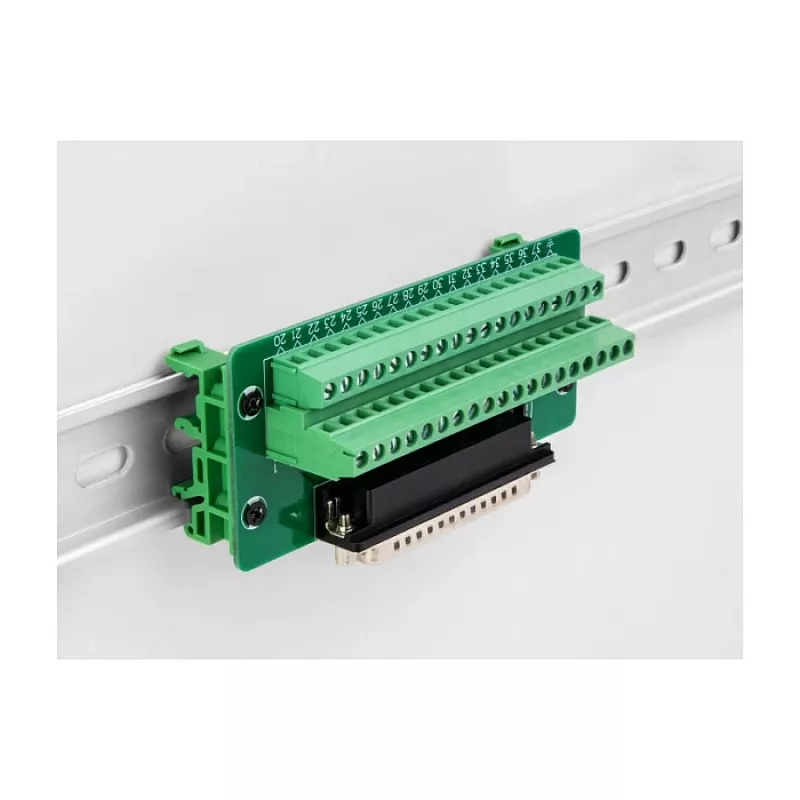

Attach the supplied clips to the adapter and snap the unit onto a compatible 15 mm or 35 mm DIN rail. Strip the wire ends to the recommended length for the terminal block and insert each conductor into the appropriate terminal, then tighten the terminal screws to secure the wires. Connect the D-Sub 37 mating connector to the female D-Sub on the adapter to complete the connection.

Recommendations

Ensure wires are stripped to the correct length and that terminal screws are tightened to the manufacturer's recommended torque. Verify compatibility of the D-Sub 37 mating connector and observe standard safety practices when working on live circuits; whenever possible, power should be removed before wiring.
