EFB Elektronik 19 Inch Wall-Mounted Enclosure IP55, 16U, Steel Door, Depth 600 mm, RAL 7035

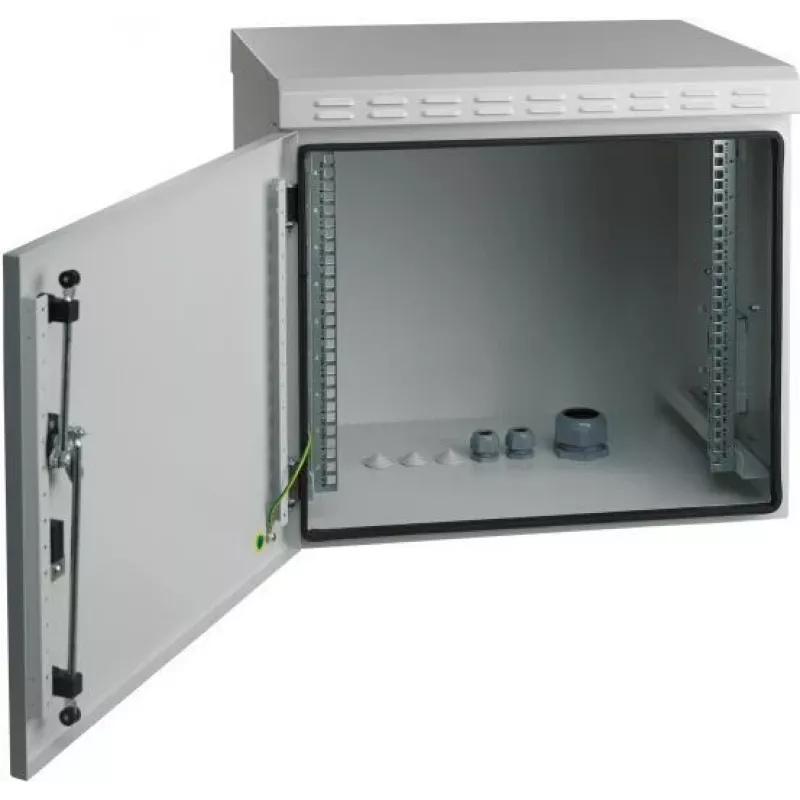

The EFB Elektronik 691716IP55.2 is a robust 19-inch wall-mounted enclosure designed for industrial and protected outdoor environments. With an IP55 protection rating, it offers reliable protection against dust and water jets, making it suitable for demanding applications. The enclosure features a steel door with a single-leaf design and a swivel handle with profile half cylinder lock for security.

Advantages

This enclosure provides a durable and secure housing for 19-inch rack equipment. The powder-coated finish in RAL 7035 light grey ensures a professional appearance, while the included earthing kit guarantees proper grounding. Cable entry at top and bottom with brush strips simplifies cable management.

Suitable for

• Industrial automation and control systems
• Telecommunications and network equipment
• Protected outdoor installations
• Dusty or damp environments requiring IP55 protection

Key specifications

• Rack standard: 19 inch
• Rack units: 16U
• Protection rating: IP55
• Door type: Steel door, single-leaf
• Colour: RAL 7035 (Light Grey)
• Mounting type: Wall-mounted
• Material: Sheet steel
• External dimensions (W x H x D): 600 x 850 x 600 mm
• Load capacity: 100 kg
• Locking system: Swivel handle with profile half cylinder
• Cable entry: Top and bottom with brush strips
• Side panels: Fixed
• Ventilation: Passive
• Finish: Powder-coated
• Earthing: Included earthing kit

Recommendations

For optimal installation, ensure the wall can support the weight of the enclosure and equipment. Use appropriate mounting hardware (not included). This enclosure is ideal for housing servers, switches, patch panels, and other 19-inch equipment in environments where dust and moisture are a concern.
